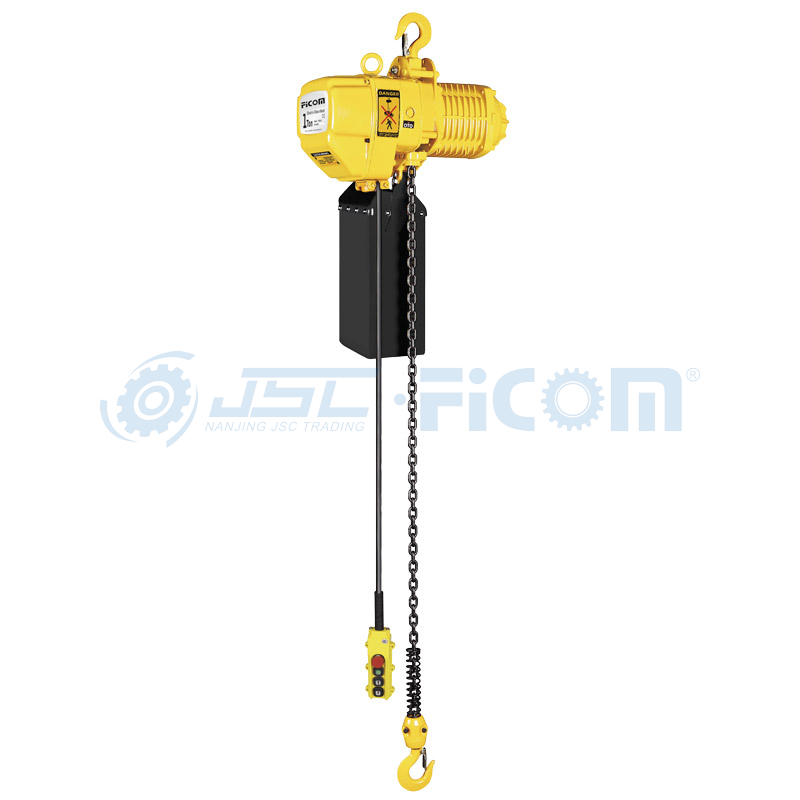

Electric Chain Hoist Model: STD (Capacity: 0.5 to 5Ton, Single Speed)

Three meters of control cable as standard accompanies.
Optional length of lift,push button cord and control cable beaides standard is available on your request.
Extending the load chain is prohibited with additional links
Steel chain containers are available as option if your lift is more than capacity of the standard container volume.

Quantity:
  • STD
  • FICOM
Overview

Capacity: 0.5 to 5Ton,Single Speed

27

Technical Parameters

Capacity

(T)

Model


Lifting Speed

(m/min)

Motor Power

(Kw)

No. of Chain


Chain Size


Net Weight

(Kg)

500kg STD-0.5-01S 7.8 0.8 1 6.3×19 47
1 STD-01-01S 6.6 1.5 1 7.1×21 61
STD-01-02L 3.3 0.8 2 6.3×19 52
2
STD-02-01S 6.6 3.0 1 10×30 115
STD-02-02L 3.3 1.5 2 7.1×21 73
3
STD-03-01S 5.4 3.0 1 11.2×34 115
STD-03-02L 4.4 3.0 2 10×30 122
STD-03-03L 2.2 1.5 3 7.1×21 131
5 STD-05-02S 2.7 3.0 2 11.2×34 151


Size Specification (mm)

27-5

Model H A B D E
STD-0.5-01S 530 460 230 288 178
STD-01-01S 650 520 260 300 176
STD-01-02L 670 460 230 288 178
STD-02-01S 800 615 295 430 265
STD-02-02L 835 520 260 300 236
STD-03-01S 845 615 295 430 265
STD-03-02L 950 615 295 430 320
STD-03-03L 950 520 260 350 205
STD-05-02S 1030 615 295 430 325
