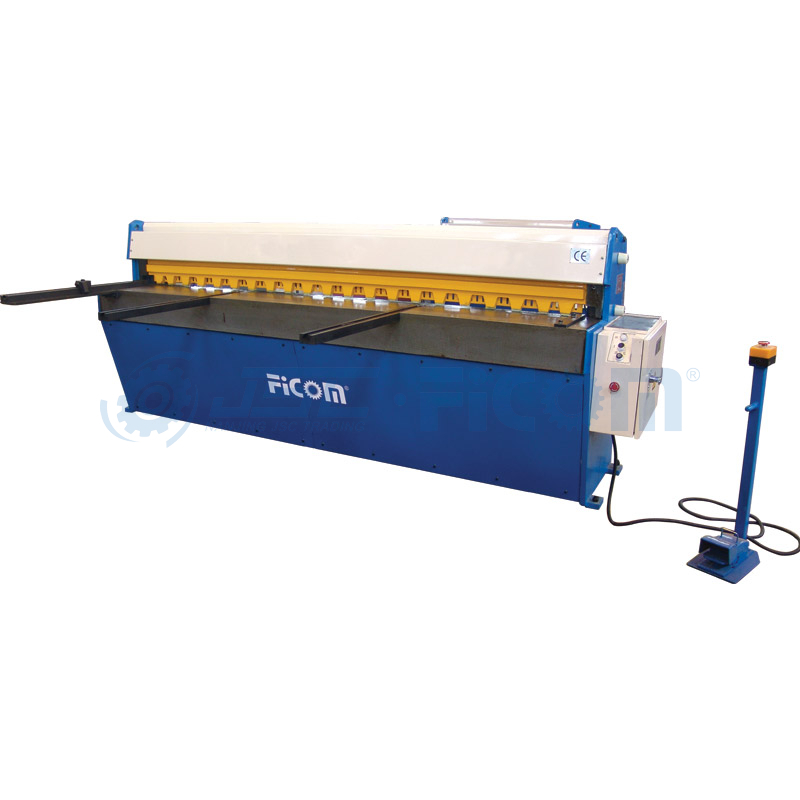

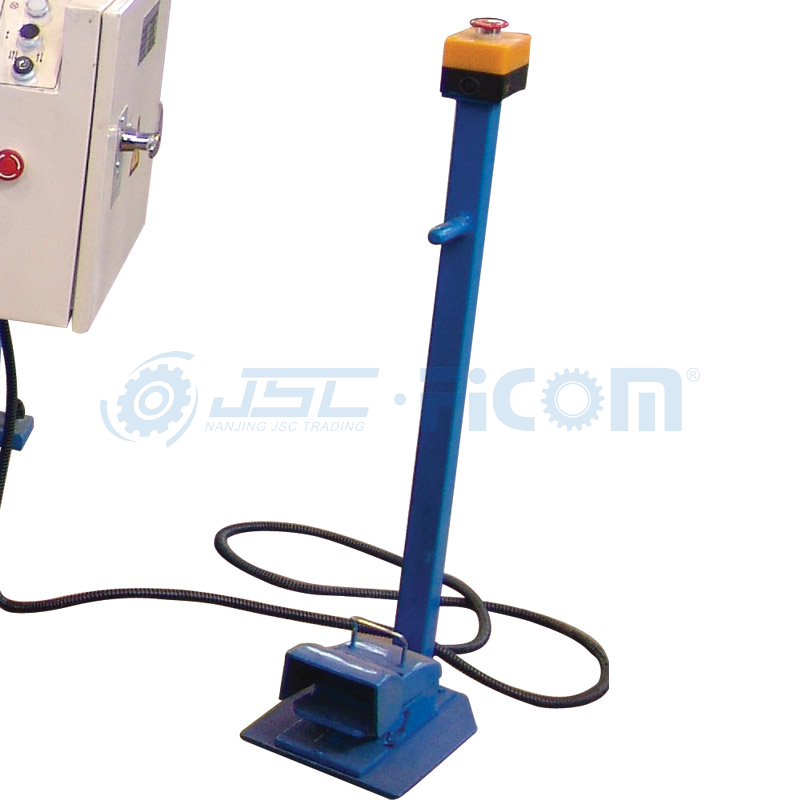

· A brakemotor driving through a shaft-mounted speed reduction unit and controlled by a selector switch for single or continuous strokes, provides quiet working.
· Different from the traditional driving method of mechanical shear, it's one of the most advanced small mechanical shear, and have good reputation in market. The low cutting angle and inclined shear direction reduces bowing and twist to a minimum. Blade clearance is easily set by manual operated Quick Set device, it's an ideal machining equipment of metal sheet and nonferrous metal sheet.
| Model No. | Unit | ES3.5×1250 | ES3.2×1500 | ES3.2×2000 | ES2.5×2500 | ES3.2×2500 |
| shear thickness | mm | 3.5 | 3.2 | 3.2 | 2.5 | 3.2 |
| shear width | mm | 1250 | 1500 | 2000 | 2500 | 2500 |
| shear angle | ° | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| number of stoke | min | 47 | 47 | 47 | 47 | 47 |
| back gauge range | mm | 0-650 | 0-650 | 0-650 | 0-650 | 0-650 |
| height of worktable | mm | 800 | 800 | 800 | 800 | 800 |
| motor power | Kw | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 |
| G.W. | Kg | 1450 | 1650 | 1800 | 2080 | 2200 |
| dimensions (L×W×H) | mm | 1860×2210×1180 | 2124×2210×1180 | 2624×2210×1180 | 3124×2210×1180 | 3124×2210×1180 |
* Can be packed two set in one pallet for saving freight cost.
| back protection | light protection | motorised back gauge | E10 DRO |
