| Quantity: | |
|---|---|

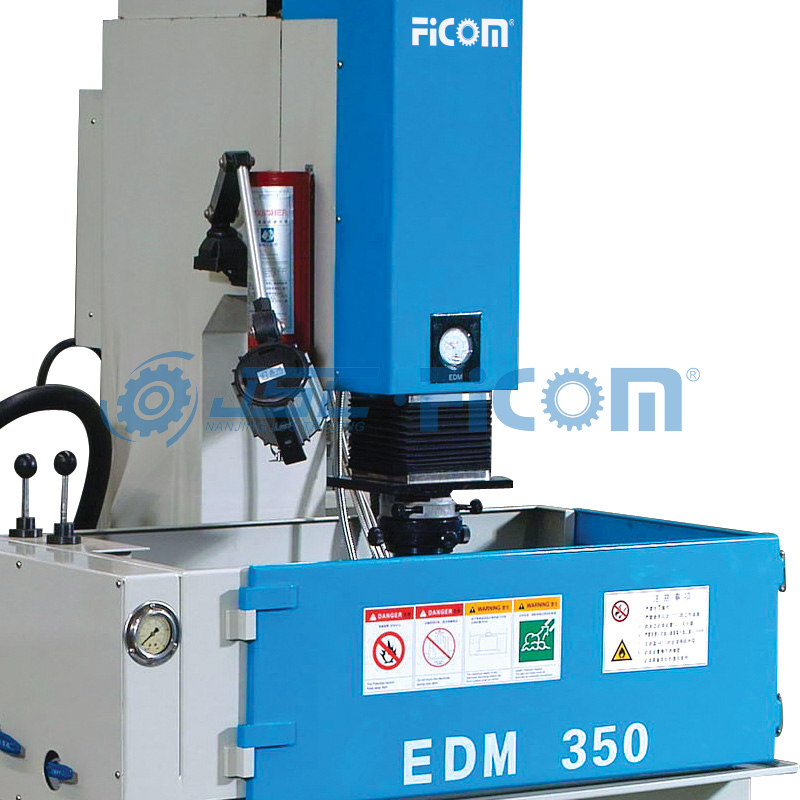

| Model No. | Unit | EDM300 | EDM350 | EDM450 | EDM540 | EDM650 |
| table travel | mm | 300×200 | 350×250 | 450×350 | 500×400 | 650×550 |
| work table size/LxW | mm | 500×250 | 600×350 | 700×240 | 800×500 | 1100×650 |
| principal axis travel | mm | 220 | 180+(180) | 200+(200) | 200+(300) | 300+(300) |
| principal axis liading | Kg | 50 | 50 | 70 | 150 | 250 |
| machine loading | Kg | 250 | 300 | 600 | 1300 | 2800 |
| max. distance betweem electrode and work table | mm | 500 | 560 | 660 | 830 | 950 |
| size of oil reservior | mm | 830×520×315 | 880×560×350 | 1180×660×450 | 1200×740×480 | 1760×960×560 |
| volume of oil reservior | m3 | 0.3 | 0.17 | 0.35 | 0.42 | 0.94 |
| volumn of filter tank(L) | 300 | 350 | 400 | 500 | 1000 | |
| size of filter tank | mm | 1150×900×450 | 1250×1000×450 | 1250×760×500 | 1400×900×440 | 2000×1250×520 |
| G.W. | Kg | 950 | 1250 | 1550 | 2250 | 3600 |
| machine size | mm | 1400×1400×2300 | 1630×1450×2300 | 1930×1620×2300 | 2100×1620×2600 | 2300×2130×2800 |
| max machining current | max machining speed | min electrode consumption | optimal surface finsih | input power |
| 30A | 200mm3/min | 0.2% | ≤0.4μm | 3KVA |
| 60A | 400mm3/min | 0.2% | ≤0.4μm | 5KVA |
| 100A | 800mm3/min | 0.2% | ≤0.4μm | 8KVA |

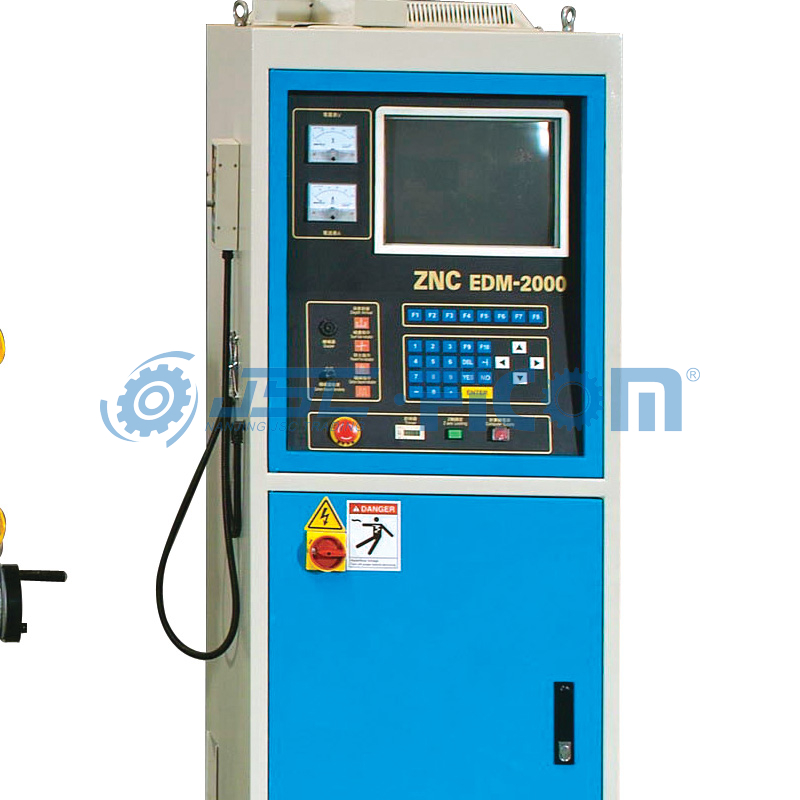

Control model: CRT display, including computer assistant logic control system
| Model No. | Unit | EDM300 | EDM350 | EDM450 | EDM540 | EDM650 |
| table travel | mm | 300×200 | 350×250 | 450×350 | 500×400 | 650×550 |
| work table size/LxW | mm | 500×250 | 600×350 | 700×240 | 800×500 | 1100×650 |
| principal axis travel | mm | 220 | 180+(180) | 200+(200) | 200+(300) | 300+(300) |
| principal axis liading | Kg | 50 | 50 | 70 | 150 | 250 |
| machine loading | Kg | 250 | 300 | 600 | 1300 | 2800 |
| max. distance betweem electrode and work table | mm | 500 | 560 | 660 | 830 | 950 |
| size of oil reservior | mm | 830×520×315 | 880×560×350 | 1180×660×450 | 1200×740×480 | 1760×960×560 |
| volume of oil reservior | m3 | 0.3 | 0.17 | 0.35 | 0.42 | 0.94 |
| volumn of filter tank(L) | 300 | 350 | 400 | 500 | 1000 | |
| size of filter tank | mm | 1150×900×450 | 1250×1000×450 | 1250×760×500 | 1400×900×440 | 2000×1250×520 |
| G.W. | Kg | 950 | 1250 | 1550 | 2250 | 3600 |
| machine size | mm | 1400×1400×2300 | 1630×1450×2300 | 1930×1620×2300 | 2100×1620×2600 | 2300×2130×2800 |
| max machining current | max machining speed | min electrode consumption | optimal surface finsih | input power |
| 30A | 200mm3/min | 0.2% | ≤0.4μm | 3KVA |
| 60A | 400mm3/min | 0.2% | ≤0.4μm | 5KVA |
| 100A | 800mm3/min | 0.2% | ≤0.4μm | 8KVA |
Control model: CRT display, including computer assistant logic control system
