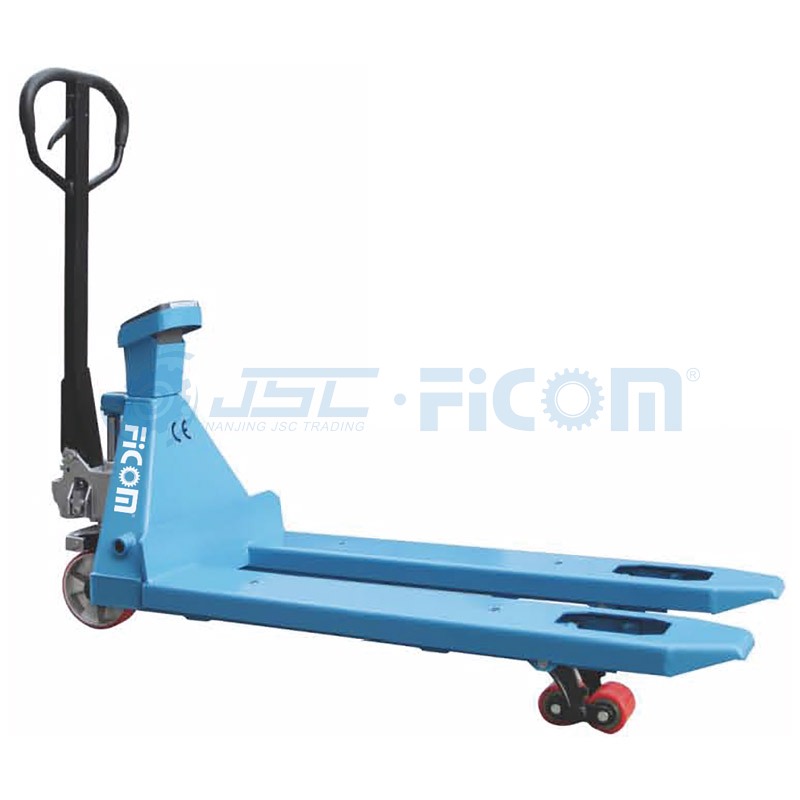

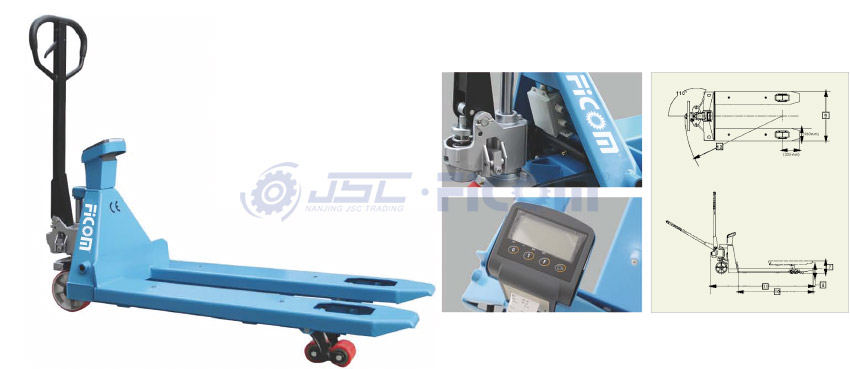

E20M / E20MP Hand Pallet Truck

·Weighing: zero, tare, clear and calibration.
·Backlight auto close, and time can be set.
·Auto OFF.
·IND212-501X with serial output, for designated type of embedded printer only.
·IND212-501X with 5V power output, controlled by meter for designated type of embedded printer only.
·Charging management module, for external battery charging.
·Figures 45mm LCD display with LED backlight, text height 25mm.
Availability:
Quantity:
  • E20M / E20MP

  • FICOM

Overview

·Function keys: easy to operate.

·Resolution: 1,000,000.

·Indexing: 1,000~30,000.

·Weitht refresh rate: 30 times/sec.

·Working voltage: 6V DC input, external lead_acid battery of 6V 10AH.

·Working temperature:-10℃~40℃, relative humidity<85%.

·Storage  temperature:-20℃~60℃, relative humidity<85%.

·Conforming to OIMLR76-1.


100

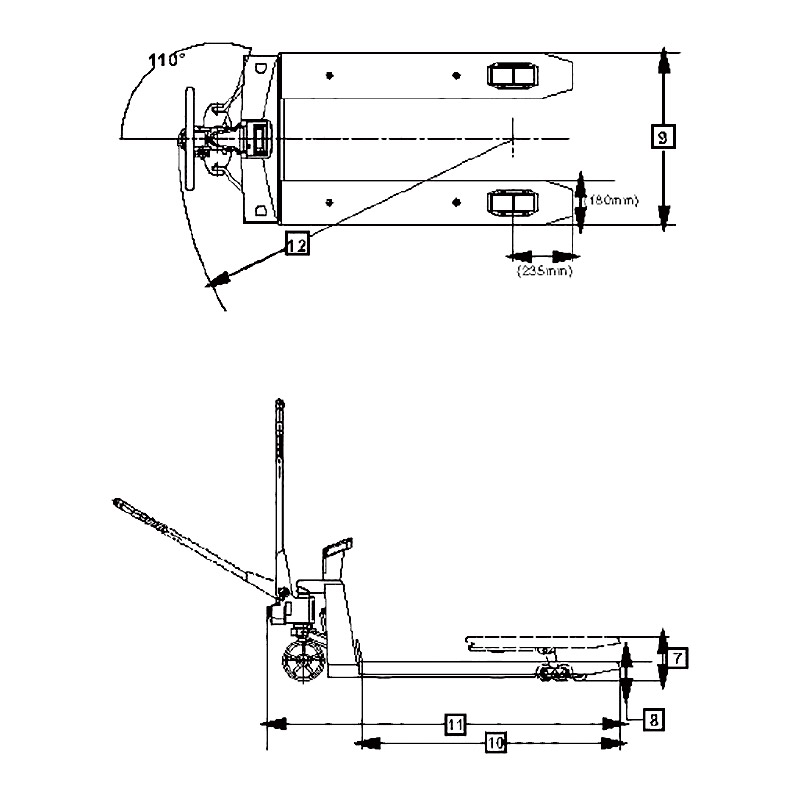

Technical Parameters

100-3

Model

Unit

E20M / E20MP

Load Capacity (kg) 2000
Min. Precision (kg) 0.2
Battery Voltage, Nominal Capacity (V/Ah) 6/7
Lifting Height (mm)(7) 200
Min. Height of Fork (mm)(8) 75/85
Fork Width (mm)(9) 560/685
Fork Length (mm)(10) 1150/1220
Overrall Length (mm)(11) 1580/1650
Turning Radius (mm)(12) 1250
Net Weight (kg) 130
