Duct Atuomatic Manufacturing Line 3

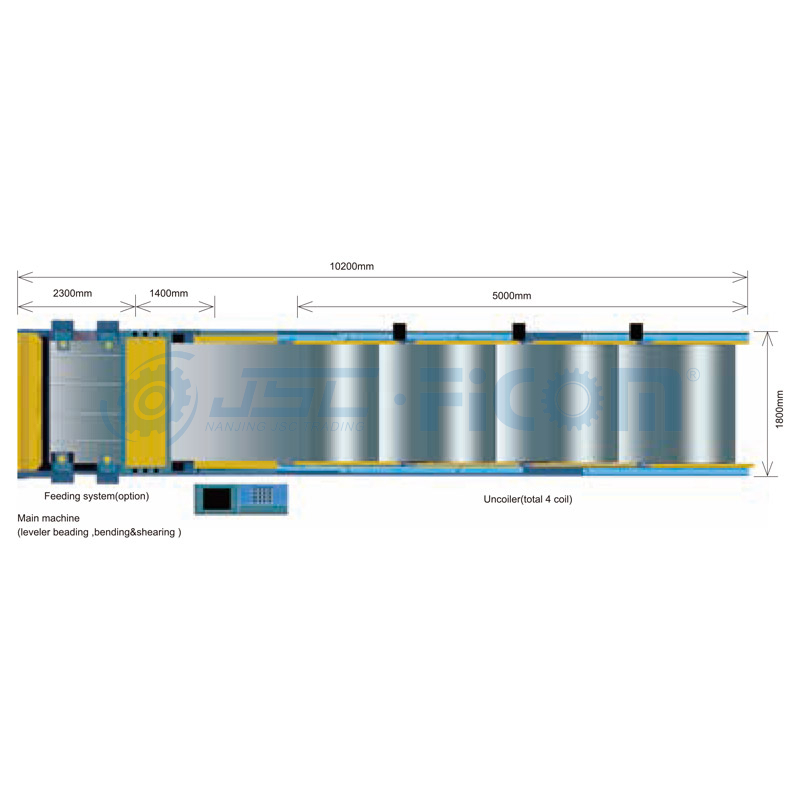

Duct Automatic Manufacturing Line 3 are consists of a uncolier, leveler with beading function, electronical code, hydraulic Notching system(4 tool special design for duct), hydraulic shearing machine, Industry CNC control system and FICom special duct manufacture software. This line can automatically produce flat sheet and duct beading. Notching, process flat sheet, 4-piece duct, “L”,“U” and “口” section duct and shear. this line have good automatic fuction and Can help you save labor cost and material, high produce rate, it is best choice for medium duct workshop and general sheet shear.
Standard include 2 uncoiler, machine main part consists of electronical code, Hydraulic Notching system, Hydraulic bending and shearing system and CNC with MEIFORMET duct software system.
Option are sheet feed system, and more uncoilers.
Availability:
Quantity:
  • DAL-3

  • FICOM

Overview

Specifications:

  • Coil Thickness: 0.4-1.2mm

  • Part Width: 150-1300mm. 1500mm

  • Part Length Tolerance: ±0.5mm

  • Diagonal Tolerance: ±0.8mm

  • Processing Speed: Adjustable 18M/min

  • Straightener Section

  • Driven: Hydrulic

  • Power: 15KW

  • Beading Section: Satandard

  • Notching and hole Punching: FICom

  • CNC Controls: Japan Mistsbishi

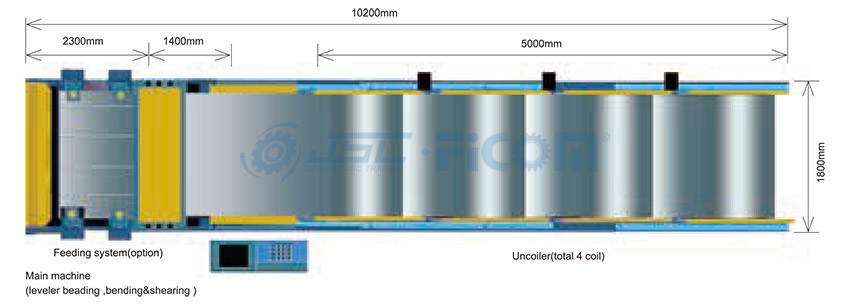

03A

Technical Parameters
Model

Thickness

(mm)

Tolerance

(mm)

Max Speed

(m/min)

Coll Width

(mm)

DAL-3(1300) 0.4-1.2 ±0.5 18 1300
DAL-3(1500) 0.4-1.2 ±0.5 18 1500
