Duct Atuomatic Manufacturing Line 2

Duct Automatic Manufacturing Line 2 are consists of a uncolier, leveler with beading function, electronical code, hydraulic Notching system(4 tool special design for duct),hydraulic shearing machine,Industry CNC control system and special duct manufacture software.This line can automatically produce flat sheet and duct beading. Notching and FICOM shear,It Can help you save labor cost and material, high produce rate, it is best choice for medium duct workshop and general sheet shear.
Standard include 2 uncoiler, machine main part consists of electronical code,Hydraulic Notching system, shearing system and CNC with our duct software system.
Option are sheet feed system, and more uncoilers.
Availability:
Quantity:
  • DAL-2

  • FICOM

Overview

Specifications:

  • Coil Thickness: 0.4-1.2mm

  • Part Width: 150-1300mm. 1500mm

  • Part Length Tolerance: ±0.5mm

  • Diagonal Tolerance: ±0.8mm

  • Processing Speed: Adjustable 18M/min

  • Straightener Section

  • Drive: Hydrulic drive

  • Power: 10KW

  • Beading Section: Satandard

  • Notching and hole Punching: FICom TDF/TDC.

  • CNC Controls: Japan Mistsbishi

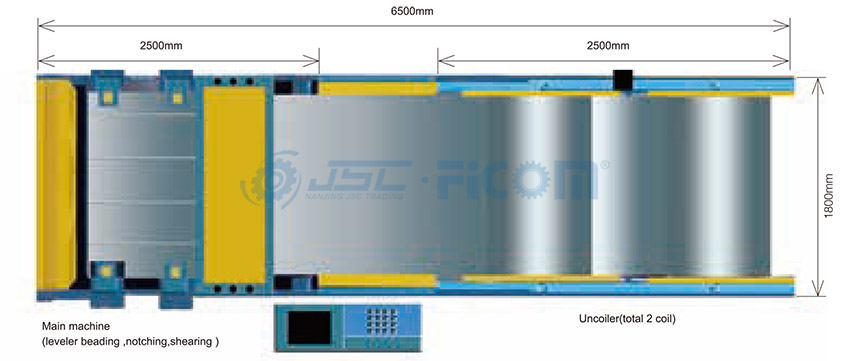

02B

Technical Parameters
Model

Thickness

(mm)

Tolerance

(mm)

Max Speed

(m/min)

Coll Width

(mm)

DAL-2(1300) 0.4-1.2 ±0.5 18 1300
DAL-2(1500) 0.4-1.2 ±0.5 18 1500
