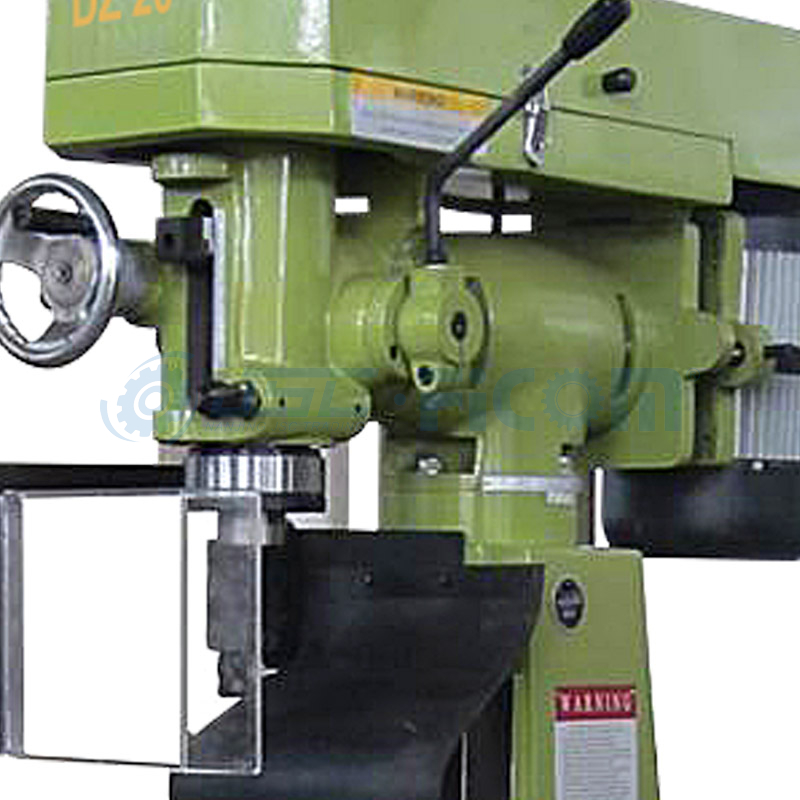

DZ 20 Drilling Machine

· Precision drilling & milling head
· Precision ground worktable
· Tilting and swiveling head
· With mirco-feed handwheel and quick feed lever

Quantity:
  • DZ 20
  • FICOM
Overview


DZ-20


Technical Parameters
Model No.

Unit

DZ 20

work table size

mm

660×152(25.98"×5.98")

cross travel of work table

mm

150(5.98")

longitudinal travel of work table

mm

360(14.17")

spindle taper


MT3 or R8

spindle travel

mm

80(3.15")

spindle speed (9 steps)

rpm

200-2300

max. dixtance spindle to table

mm

280(11.02")

head tilt left right

º

±45

spindle swivel

º

360

motor power

kW

1.1

N.W./G.W.

kg

265/354

packing size

mm

1150×1080×1405

Standard Accessories

Draw bar

Drilling chuck








Optional Accessories

Halogen lamp

Coolant pump

58pcs clamping tool kit

Milling chuck set

Q24-16(8pcs/set)

End milling cutter set

(HSS 20pcs)

Milling vice

QG125(125mm(4.92"))

Face milling cutter

ø63mm(2.48")/MT3

Steel stand and chip tray

X/Y/Z 3-axis DRO
