DWJ
FICOM

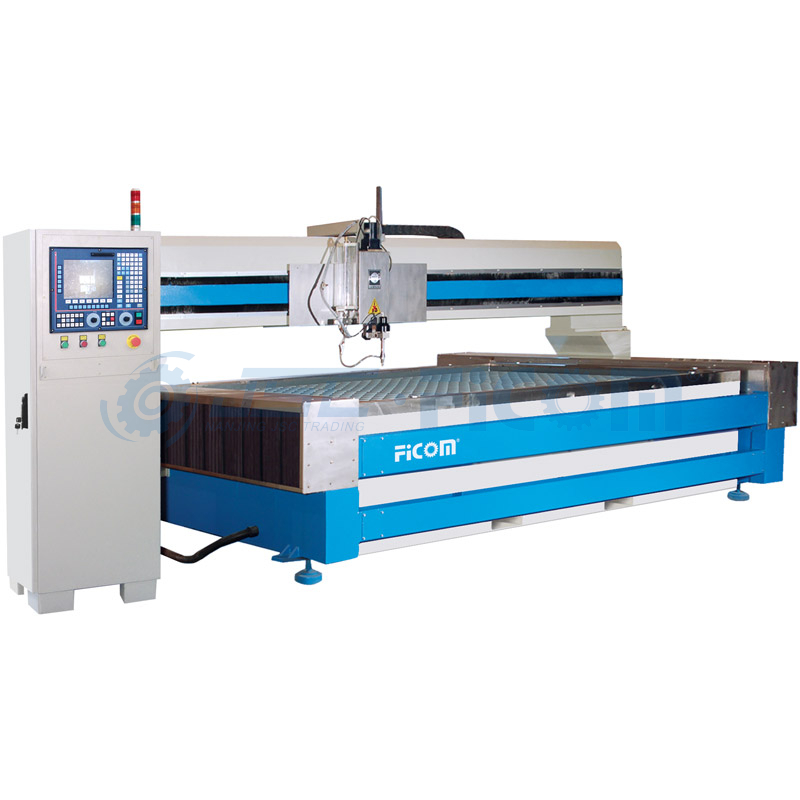

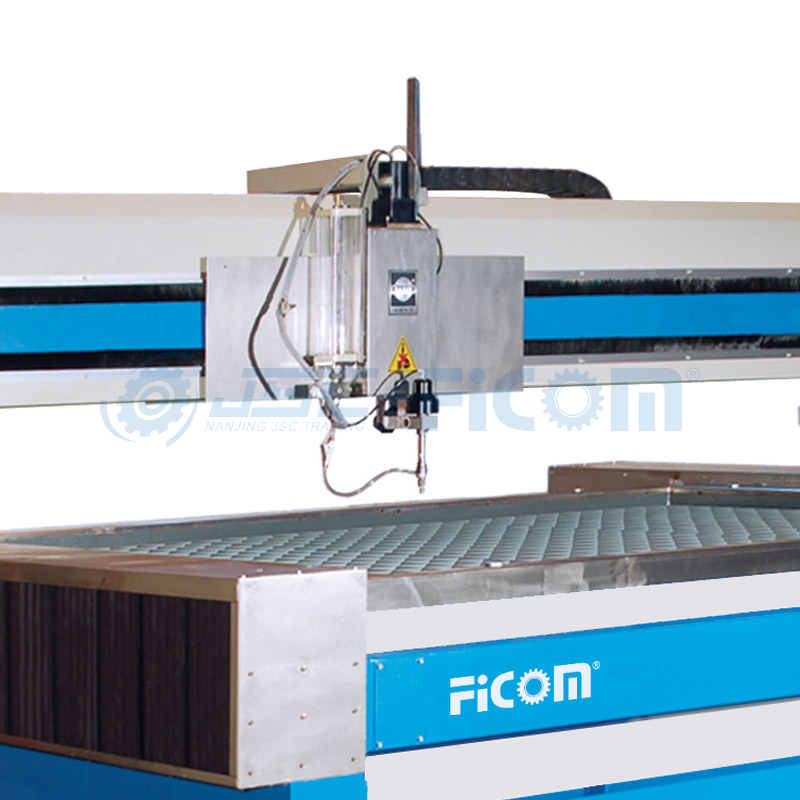

· Bridge cutting table: Separated Structure is used between Machine tool body and cutting table Adopt high quality ball screw, guider rail and bridge structure, which is stable and durable. This cutting table is popular by foreign customers.
| Model No. | Unit | DWJ3120-BB | DWJ3140-BB | DWJ3160-BB | DWJ3180-BB |
| travel | |||||
| bridge travel | m | 3.1 | 3.1 | 3.1 | 3.1 |
| base travel | m | 2.0 | 4.0 | 6.0 | 8.0 |
| z-axis travel | mm | 210mm/310mm (optional) | 210mm/310mm (optional) | 210mm/310mm (optional) | 210mm/310mm (optional) |
| speed | |||||
| max.traverse speed | m/min | 25 | 25 | 30 | 30 |
| cutting speed | m/min | 0-8m/min | 0-8m/min | 0-8m/min | 0-8m/min |
| accuracy | |||||
| cutting accuracy | mm | +/- 0.1 | +/- 0.1 | +/- 0.1 | +/- 0.1 |
| linear accuracy | mm | +/- 0.1 | +/- 0.1 | +/- 0.1 | +/- 0.1 |
| repeatability accuracy | mm | +/- 0.05 | +/- 0.05 | +/- 0.05 | +/- 0.05 |
| drive system | |||||
| drive motor | AC servo (YASKAWA) | AC servo (YASKAWA) | AC servo (YASKAWA) | AC servo (YASKAWA) | |
| drive system | Ball screw&Guider Rail | Ball screw&Guider Rail | Ball screw&Guider Rail | Ball screw&Guider Rail | |
| cather tank | |||||
| max. loading capacity | 250Kg 250Kg per square meter | ||||
| cutting heads | 1-3 | 1-3 | 1-3 | 1-3 | |
| controller | |||||
| controller | WASHING/ FAGOR (Optional) | WASHING/ FAGOR (Optional) | WASHING/ FAGOR (Optional) | WASHING/ FAGOR (Optional) | |
| NEWCAM software | Std. | Std. | Std. | Std. | |
| optional | |||||
| auto-garnet removal | ★ | ★ | ★ | ★ | |
| auto-water level control | ★ | ★ | ★ | ★ | |
| load&unload device | ★ | ★ | |||
| auto-garnet feeder | ★ | ★ | ★ | ★ | |
| auto-adjust distance device | ★ | ★ | ★ | ★ | |
| dis-collision device | ★ | ★ | ★ | ★ | |
