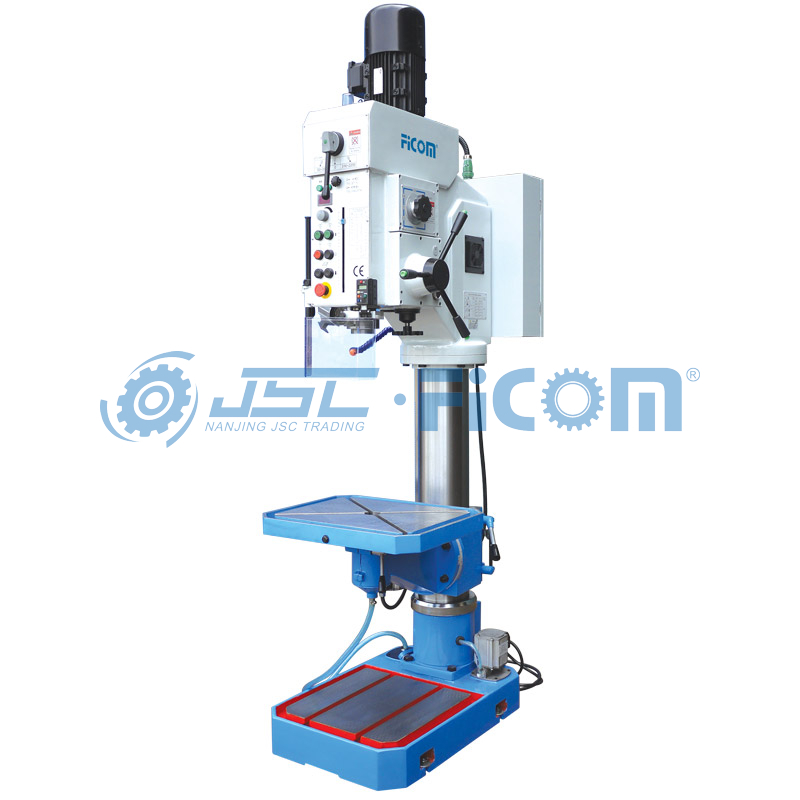

· 3-phase with two-voltage collocation.
· All main parts are made with quality cast iron.
· Two-speed motor, belt stepless timing.
· Milling function.
· Strength spindle, large diameter column.
· Grease lubrication.
· Worktable could be rotated and could be inclined ±45°.
· Motor driven or manual lifting of worktable.
· Digital readout for the display of speed and cutting depth.
· Electromagnetism clutch transmission feed measures is available.
· Micro feed is available.
· Coolant System and fender device.
· Supply accessories φ6~φ16mm collet, handle of milling cutter cross worktable, handle of collet, nut for T-slot, inner hexagon bolt.
DWB5030A/DWB5035A come with
* Speed display
* Electro magnetism feed
* Oil pump lubrication
The other model come with
* Speed display
* Depth display
* up & down motor
* Electro magnetism feed
* Oil pump lubrication
| Model No. | DWB5030A | DWB5035A | DWB5040A | DWB5050A |
| max. drilling diameter(steel) | φ30mm | φ35mm | φ40mm | φ50mm |
| max. tapping diameter | M20 | M22 | M24 | M30 |
| max. milling cutter diameter | 80mm | 80mm | 80mm | |
| max.travel of spindle | 125mm | 155mm | 190mm | 200mm |
| max.distance from spindle to generating line of column | 280mm | 320mm | 340mm | 360mm |
| max.distance from spindle nose to surface of worktable | 650mm | 625mm | 665mm | 590mm |
| max.distance from spindle nose to surface of base worktable | 1120mm | 1180mm | 1195mm | 1175mm |
| max travel of worktable and bracket/manual(mechanical) | 605mm | 560mm | 570(450)mm | 530(410)mm |
| swivel angle of worktable | ±45° | ±45° | ±45° | ±45° |
| spindle taper bore | MT3 | MT4 | MT4 | MT4 |
| spindle speed steps | stepless | stepless | stepless | stepless |
| spindle speed range | 70~249,249~3500r/min | 65~460,465~3250r/min | 60~400,396~2600r/min | 50~316,316~2200r/min |
| spindle feed steps | 3 | 3 | 4 | 6 |
| spindle feed range | 0.1, 0.2, 0.3mm/r | 0.1, 0.2, 0.3mm/r | 0.1, 0.2, 0.3, 0.4mm/r | 0.08~0.50mm/r |
| diameter of culumn | 110mm | 120mm | 140mm | 180mm |
| size of worktable | 450×380mm | 500×380mm | 520×440mm | 580×460mm |
| effective working area of worktable | 335×340mm | 370×360mm | 405×395mm | 445×435mm |
| power of motor | 1.1Kw | 1.5Kw | 2Kw | 3Kw |
| packing dimension | 960×590×2150mm | 870×510×2140mm | 1000×650×2220mm | 1150×680×2250mm |
| N.W./G.W. | 320/400Kg | 550/600Kg | 550/600Kg | 650/705Kg |
