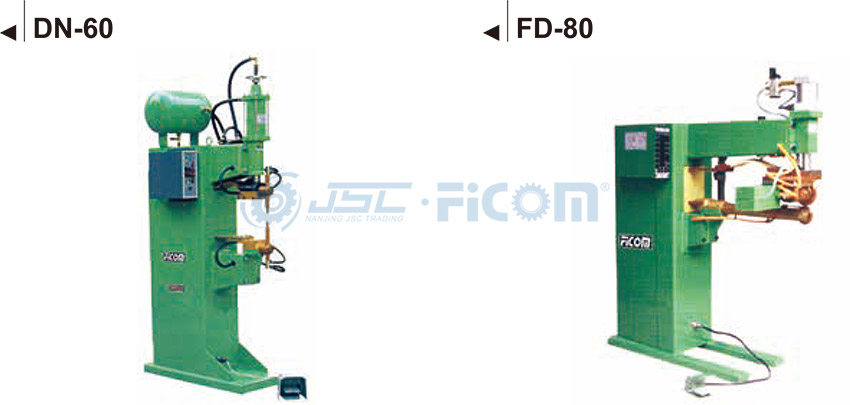

DN / FD Spot Welder & Seam Welder Machine

Availability:
Quantity:
  • DN / FD

  • FICOM

Overview


26


Technical Parameters

Optimal use of high-quality steel body design of the mechanical structure of the overall appearance and good rigidity.

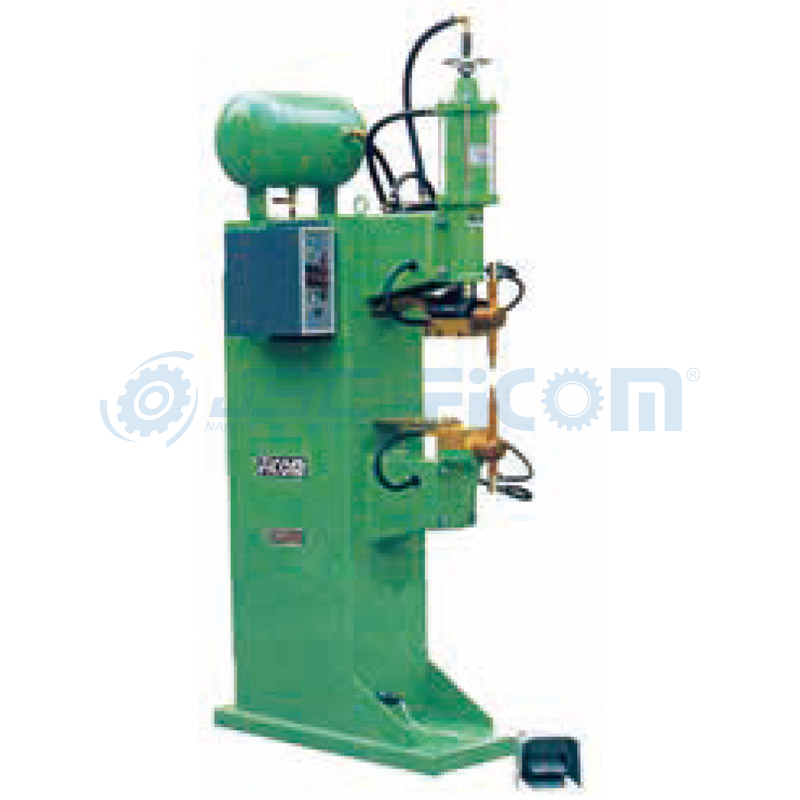

Model Unit DN-25 DN-40 DN-60 D(T)N-80 D(T)N-100 D(T)N-150 D(T)N-200
Rated Capacity kVA 25 40 63 80 100 150 200
Maximum Input Welding kVA 45 73 122 166 222 296 386
Size of Arm Extension mm 220×500 220×500 220×500 220×450 220×450 220×450 220×450
Electrode Stroke mm 60 30/60 30/60 30/60 30/60 40/100 40/100
Weight kg 220 280 340 380 400 750 790
Electrode mm φ13 φ16 φ16 φ16 φ16 φ20 φ20
Electrode Arm
mm φ50×50 φ60×200 φ60×200 φ60×200 φ60×200 φ80×240 φ80×240
Welding Station
mm / 110×130 110×130 120×130 120×130 150×160 150×160
Welding Capacity

2.5+2.5 3.0+3.0 3.5+3.5 4.0+4.0 4.5+4.5 5.0+5.0 6.0+6.0


Suitable for low carbon steel, stainless steel and other materials, pots, barrels, pipes and thin-walled.

With vertical and horizontal welding in two forms, to adapt for a variety of workpiece welding.

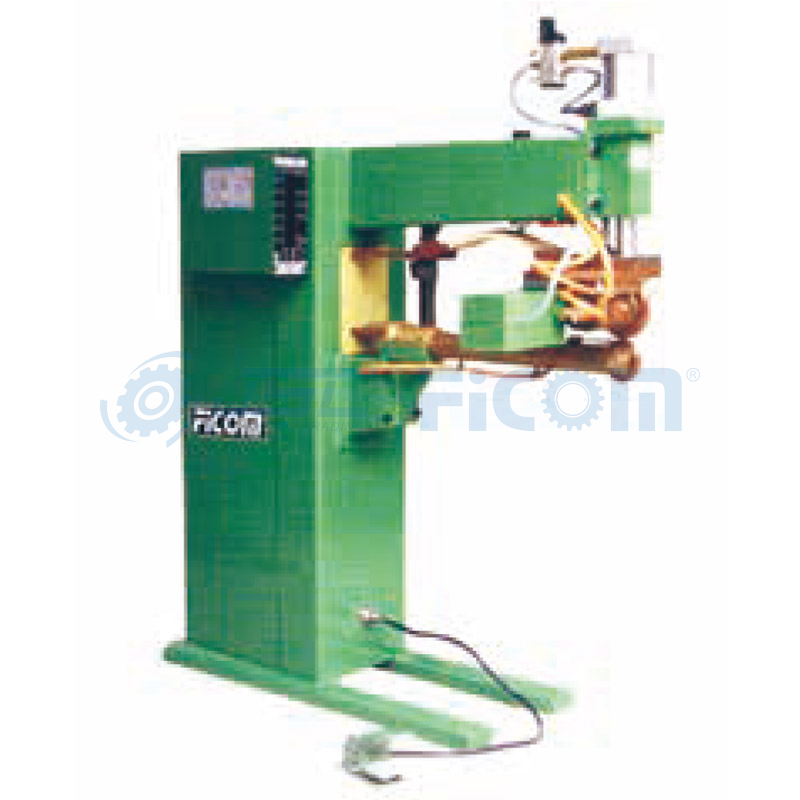

Model Unit FD-25 FD-40 FD-80 FD-150
Rated Capacity kVA 25 40 80 150
Electrode Stroke mm 50 50 60 60
Welding Speed m/min 0.6-3.5 0.6-3.5 0.6-3.5 0.6-3.5

Welding Capacity (Mild Steel)

mm 0.4+0.4 0.6+0.6 1.0+1.0 1.2+1.2
Welding Capacity (Stainless) mm 0.6+0.6 0.8+0.8 1.2+1.2 1.5+1.5
Motor Power
W 120 120 220 370
Water
L/min 15 20 20 30
Weight
kg 280 350 500 800
Power
kVA 25 40 80 150
