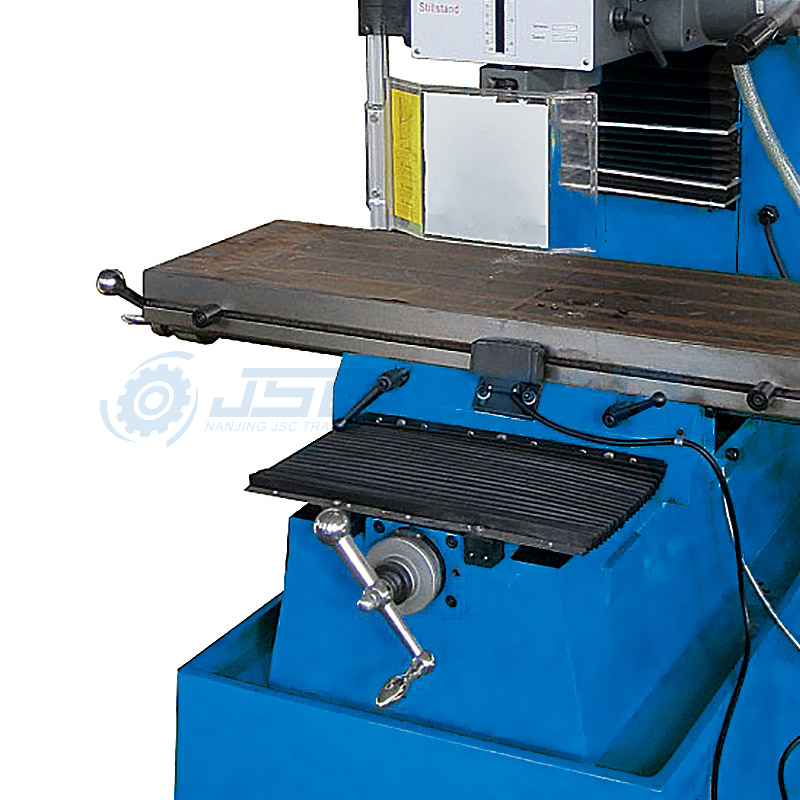

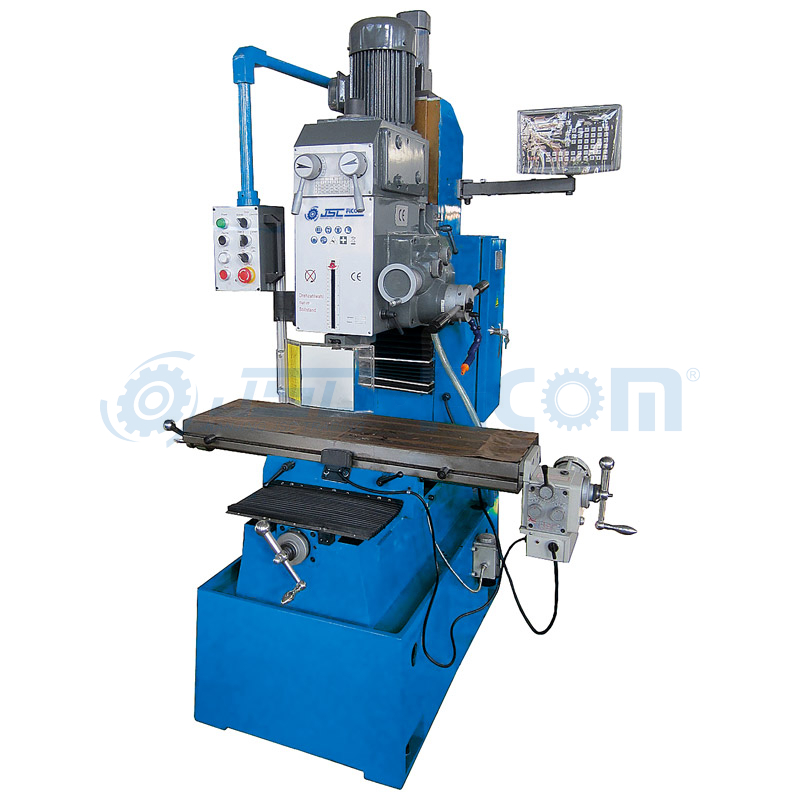

DM60 Drilling & Milling Machine

Quantity:
  • DM60
  • FICOM
Overview


DM60-5


Technical Parameters
Model No.

Unit

DM60

max drilling capacity

mm

60(2.36")

max.face milling capacity

mm

100(3.94)

max.vertical milling diameter

mm

48(1.89")

max. drilling capacity

mm

 iron: 40(1.57")   steel: 33(1.30)

work table size

mm

300×1000(11.81"×39.37")

X-axis trave

mm

650(25.59")

Y-axis trave

mm

320(12.60")

Z-axis trave

mm

500(19.69")

spindle sleeve diameter

mm

Ø100(3.94")

distance between spindle nose to worktable

mm

100-600(3.94"-23.62")

distance between spindle center to column

mm

360(14.17")

spindle taper


7:24/ISO40

spindle speed

rpm

18steps (120-3000)

spindle travel

mm

150(5.91")

spindle feed

mm/r

0.1/0.2/0.3/0.4

motor power

kW

2.2/3

water pump power

W

75

N.W.

kg

1200

Standard Accessories

Drill chuck

Drawbar Arbor

Toolbox & tools

Coolant system

Auto feed


Optional Accessories

Keyless drill chuck

MBV100 milling vise

Doulbe speed motor

Tapping assembly

58pc clamping kits

Halogen work lamp

Digital readout

Collet chuck

Stand & tray
