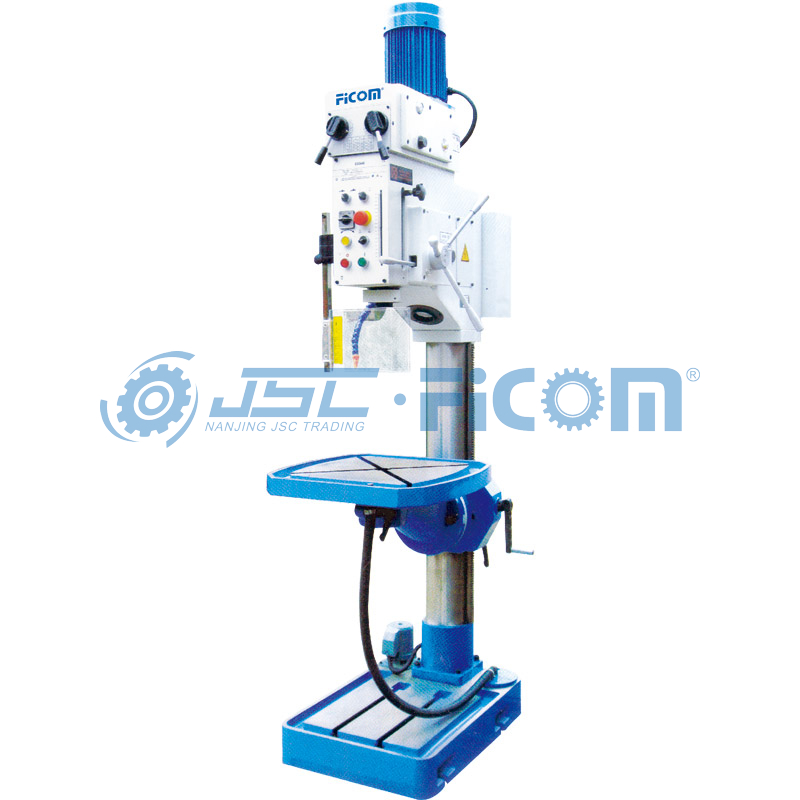

DM5040
FICOM
· 2 Speed strong power motor
· Automatic tools ejector
· 2 steps power feed 0.1-0.2mm/rev
· Drilling,tapping
Model No. | DM5040 |
max. drilling capacity | 40mm |
threading in steel & last iron | M20 & M24 |
taper of spindle bore | MT4 |
spindle travel | 180mm |
step of spindle speed | 2 |
range of spindle speeds | 50-1450rpm |
spindle power feed | 0.1-0.2mm/rev |
width of t-solt | 18mm |
max. distance from spindle axis to surface of column | 350mm |
max. distance from spindle end to surface of table | 770mm |
max. distance from spindle end to surface of base | 1210mm |

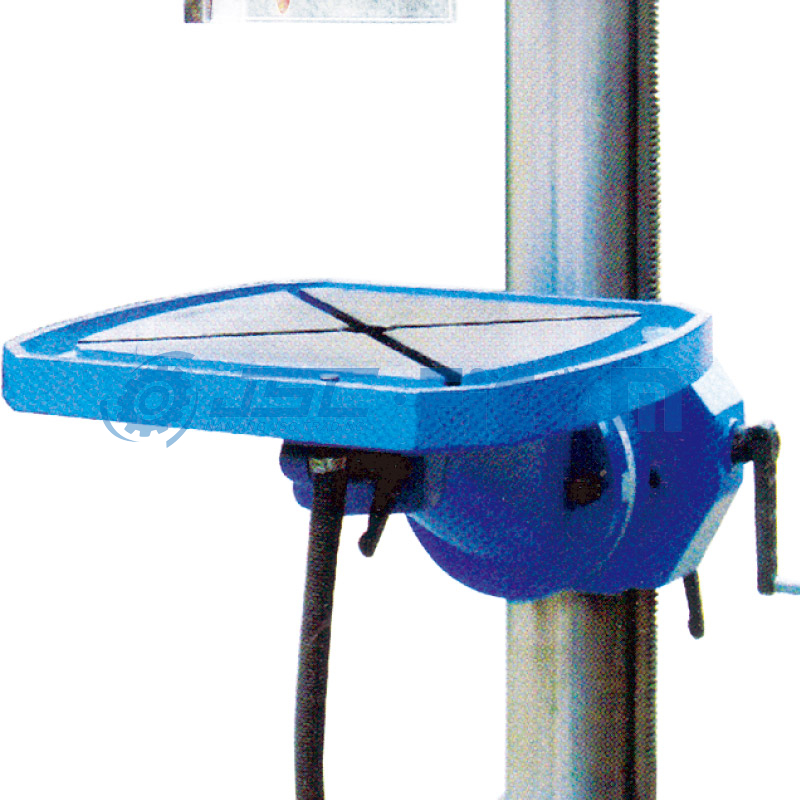

table size | 560×560mm |

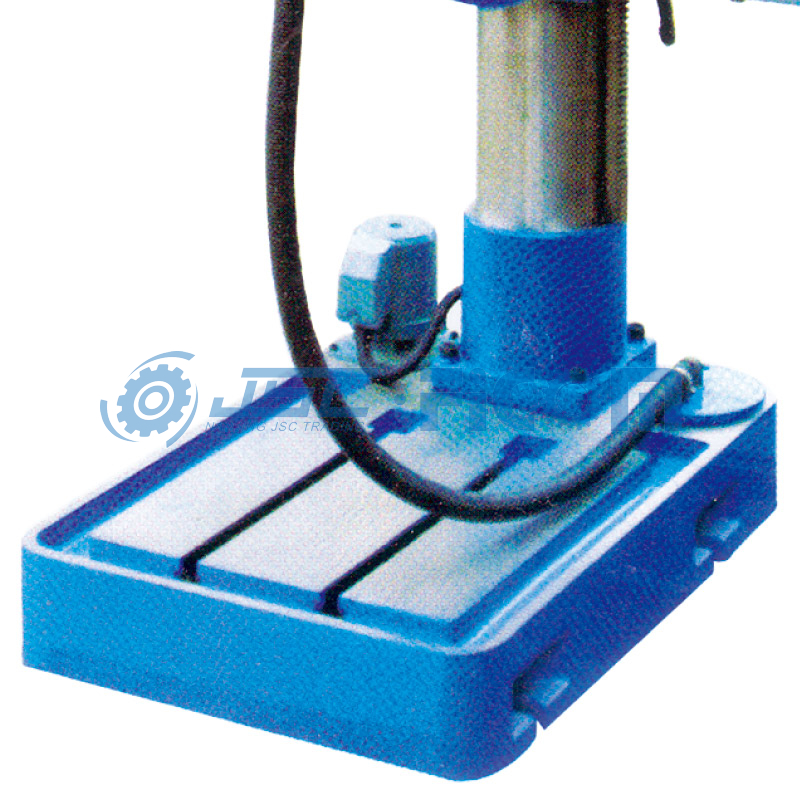

base size | 730×500 |
motor | 0.75/1.5KW |
packing size | 2270×690×1100mm |
N.W. | 510Kg |
G.W. | 650Kg |
drill chuck | toolbox & tools | keyless drill chuck | |
200mm drilling vise | |||
