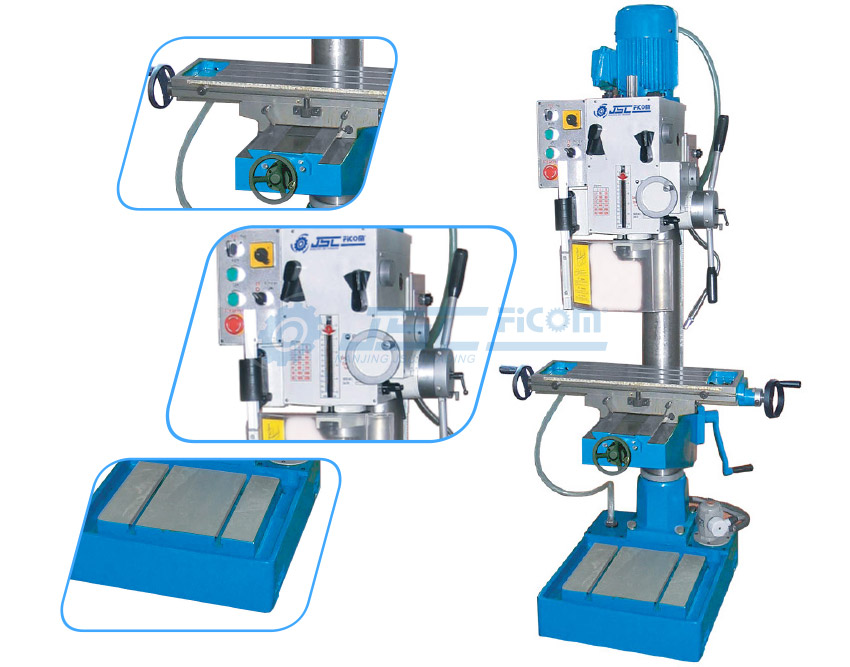

DM30 Drilling & Milling Machine

· Gear driven drilling machine
· Exceptionally quite gearbox
· Equipped with cross table
· Head can be elevated up and down
· High precision ground spindle and larger quill
· Positive locks for the table,quill,head
· Precision fine down feed
· Zero voltage safeguard
· Optional tapping system.double speed motor
Availability:
Quantity:
  • DM30
  • FICOM
Overview


DM30-5


Technical Parameters
Model No.

Unit

DM30

drilling capacity

mm

40(1.57")

max distance spindle to table

mm

-

spindle stroke

mm

120(4.72")

spindle taper


MT4

spindle feed

mm/r

0.1,0.2,0.3

spindle speed

rpm

75-3200/12step

face mill capacity

mm

-

end mill capacity

mm

-

working table size

mm

540×470(21.26"×18.5")

working table cross travel

mm

-

T-Slot size

mm

-

head tilt left right

°

-

base dimension

mm

650×450(25.59"×17.72")

column

mm

Ø115(4.53")

motor power

kW

0.85/1.1

packing siz

mm

740×720×1830

N.W.

kg

320

Standard Accessories

Drill chuck

Arbor Drawbar

Coolant system

Toolbox & tools



Optional Accessories

Power feed

Coolant system

58pcs clamp kits

100 milling vise

100 drill vise

Keyless drill chuck

Halogen work lamp
