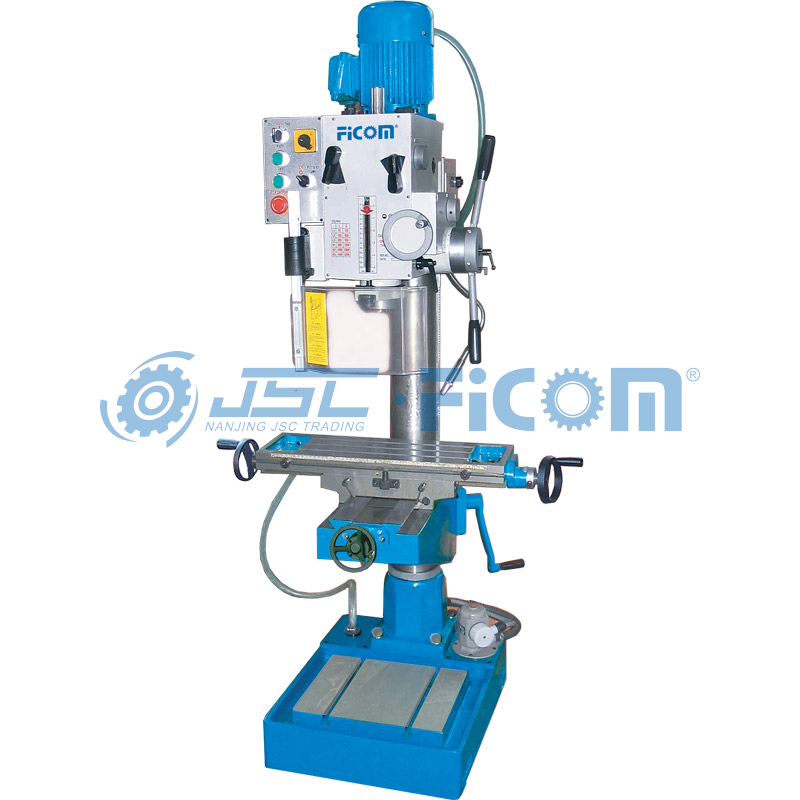

DM30/DM30H
FICOM
DM30
· Gear driven drilling machine
· Exceptionally quite gearbox
· Equipped with cross table
· Head can be elevated up and down
· High precision ground spindle and larger quill
· Positive locks for the table,quill,head
· Precision fine down feed
· Zero voltage safeguard
· Optional tapping system.double speed motor
DM30H
· Gear driven drilling machine
· Exceptionally quite gearbox
· Equipped with cross table(WDMP30F)
· Zero voltage safeguard

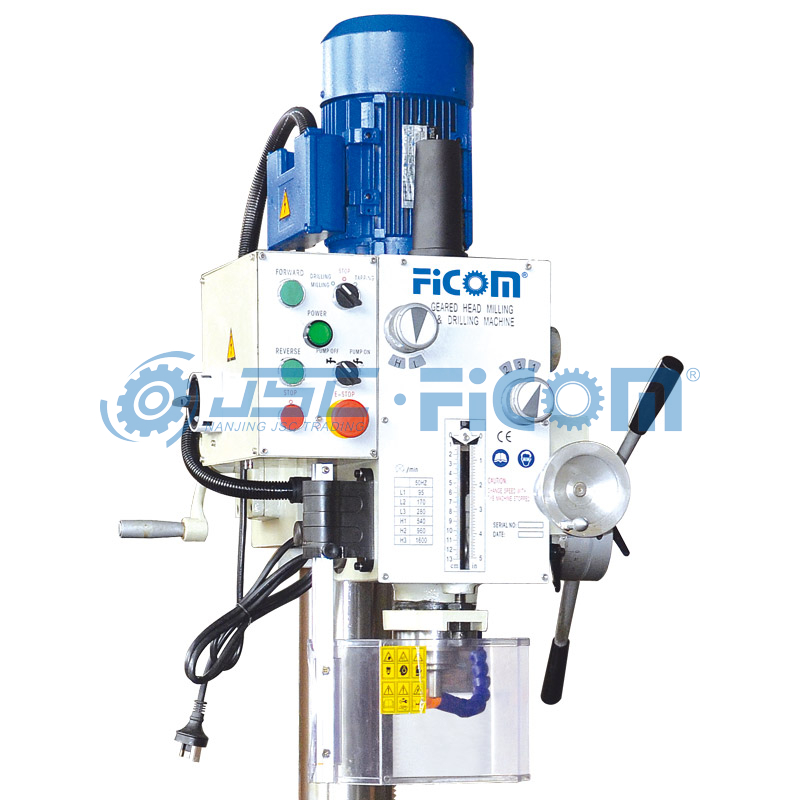

· Equipped with tapping system,double speed motor

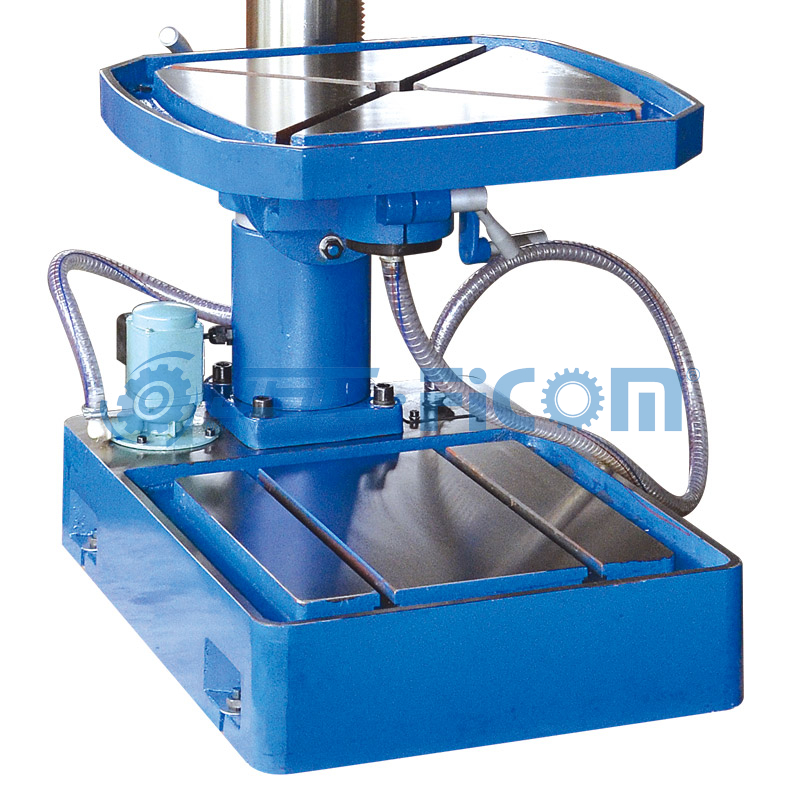

· Equipped with coolant,spindle power feed system
· Three steps of spindle power feed
· Feeding depth position stop device
· High precision ground spindle and larger quill
| Model No. | DM30 | DM30H |
| drilling capacity | 30mm | 40mm |
| spindle stroke | 120mm | 120mm |
| spindle taper | MT4 | MT4 |
| spindle feed | 0.1,0.2,0.3mm/r | 0.1,0.2,0.3mm/r |
| spindle speed | 75-3200rpm/12 | 75-3200rpm/12 |
| table dimension | 540×470mm | 540×470mm |
| base dimension | 650×450mm | 650×450mm |
| column | φ115mm | φ115mm |
| motor power | 0.85/1.1Kw | 0.85/1.1Kw |
| packing size | 740×720×1830mm | 740×720×1830mm |
| net weight | 320Kg | 330Kg |
| drill chuck | arbor | drawbar | coolant system |
coolant system toolbox & tools |
| power feed | coolant system | 58pcs clamp kits | 100 milling vise |
| 100 drill vise | keyless drill chuck | halogen work lamp |
