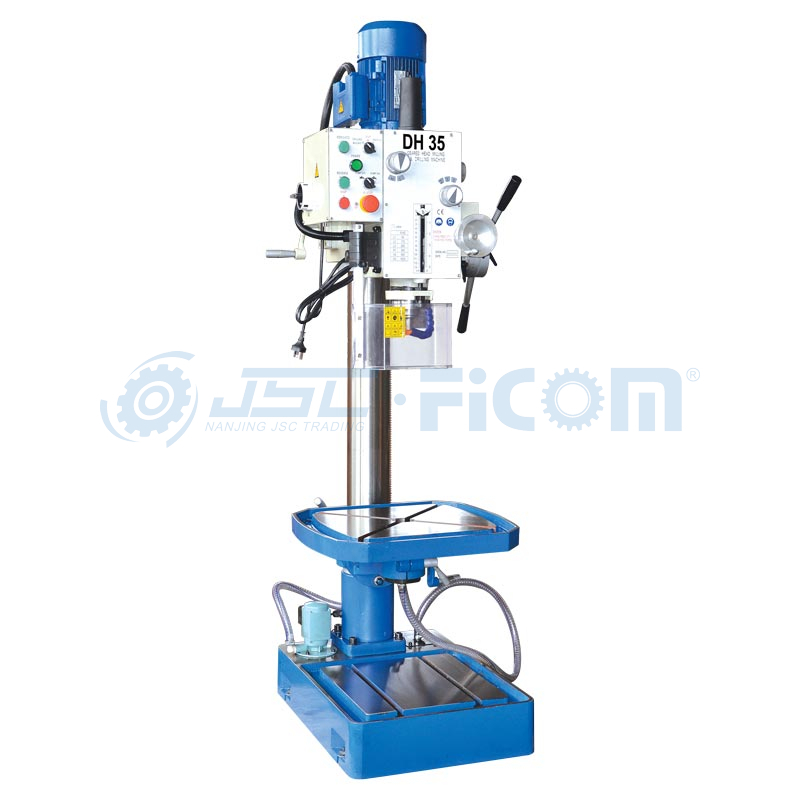

DH 35 Drilling Machine

· Gear driven drilling machine
· Exceptionally quite gearbox

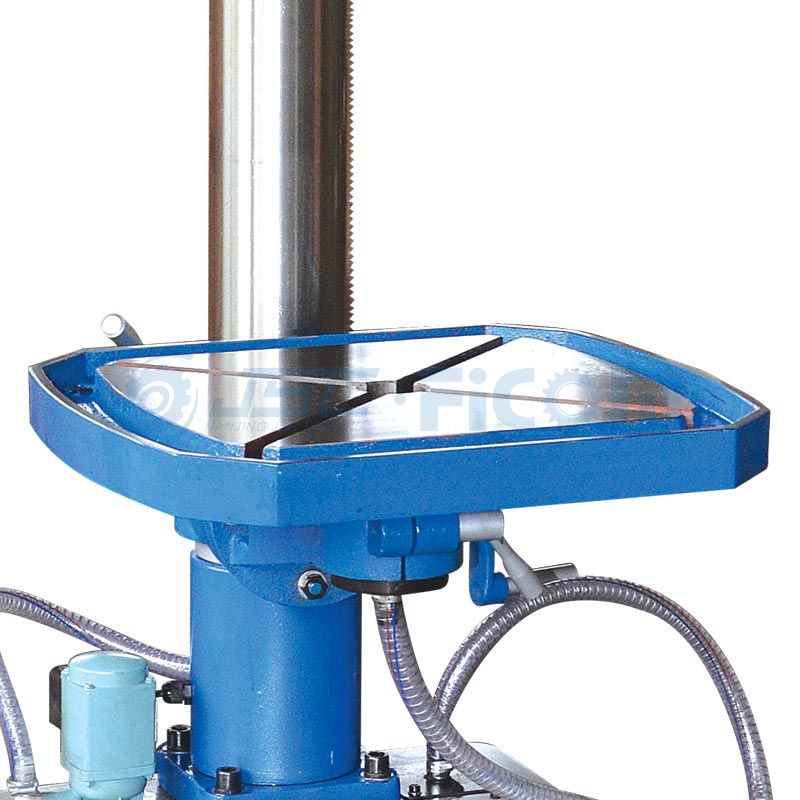

· Equipped with cross table(WDMP30F)
· Zero voltage safeguard
· Equipped with tapping system,double speed motor
· Equipped with coolant,spindle power feed system
· Three steps of spindle power feed
· Feeding depth position stop device
· High precision ground spindle and larger quill
Availability:
Quantity:
  • DH 35
  • FICOM
Overview


DH35


Technical Parameters
Model No.

Unit

DH 35

max. drilling capacity(iron/steel)

mm

40(1.57")

spindle taper


MT4

worktable size

mm

540×470(21.26"×18.50")

dimensions of base

mm

650×450(25.59"×17.72")

spindle travel

mm

120(4.72")

column diameter

mm

Ø115(4.53")

spindle speed (2 step motor)

r/min

 12steps:75-3200r/min

spindle feed range

mm/r

0.1/0.2/0.3mm/r

motor

kW

0.85/1.1

N.W./G.W.

kg

330/380

packing size(L×W×H)

mm

740×720×1830

Standard Accessories

Drill chuck

Arbor

Drawbar

Coolant system

Toolbox & tools





Optional Accessories

Power feed

Coolant system

58Pcs clamp kits

100 Milling vise

100 Drill vise

Keyless drill chuck

Halogen work lamp
