DH 28 Drilling Machine

· Drilling, tapping, boring, reaming
· Strong column, vice table, gear drive, lower noise
· Heavy-duty tapered roller bearing spindle, positive spindle lock
· All gears are haedened and ground

Quantity:
  • DH 28
  • FICOM
Overview


DH28


Technical Parameters
Model No.

Unit

DH 28

max. drilling capacity(iron/steel)

mm

28/25(11.02"/0.98")

max. tapping capacity(iron/steel)

mm

22/18(0.87"×0.71")

spindle taper


MT3

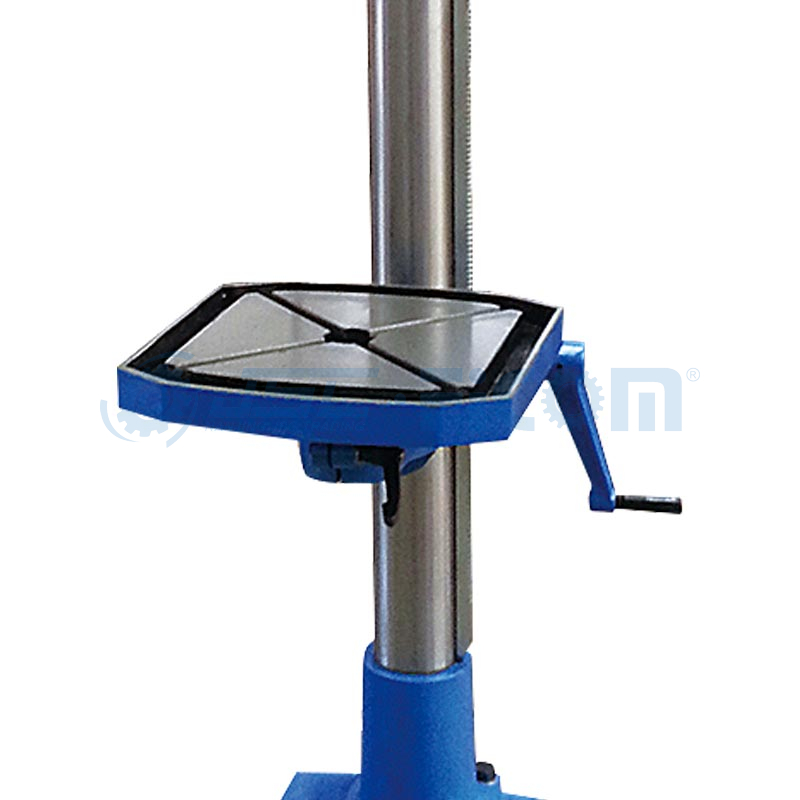

worktable size

mm

380×380(14.96"×14.96")

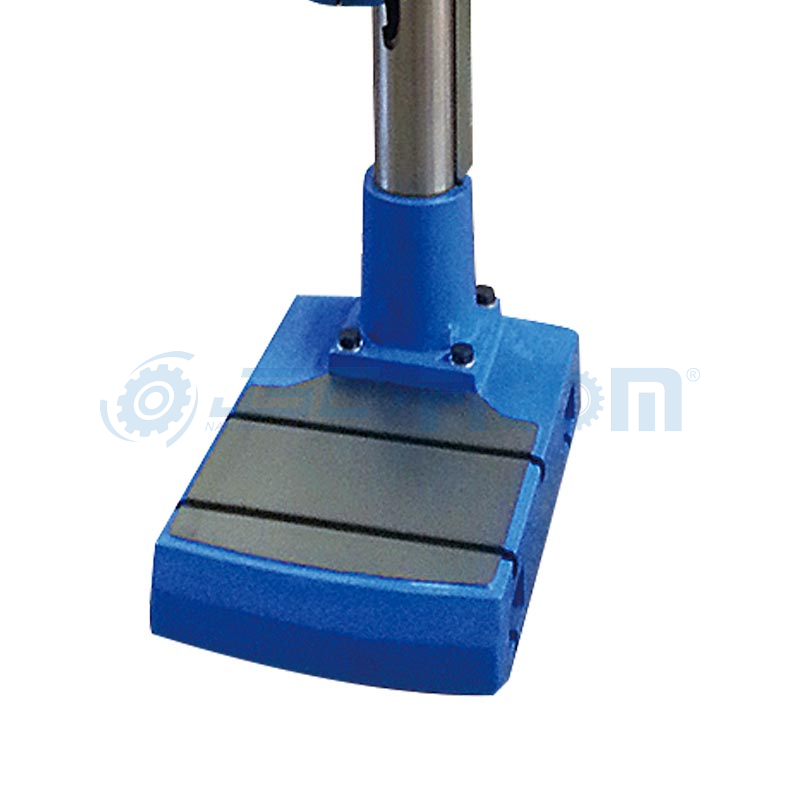

dimensions of base

mm

535×360(21.06"×14.17")

spindle travel

mm

130(5.12")

distance spindle center to column surface

mm

250(9.84")

spindle nose to worktable

mm

825(32.48")

spindle nose to base

mm

1220(48.03")

column diameter

mm

98(3.86")

spindle speeds range

rmp

12steps:75~3200

motor

kW

1.1/0.85

N.W./G.W.

kg

210/25

packing size(L×W×H)

mm

2100×400×680

20’ Container

sets

42

Standard Accessories

Draw bar

Adapter

Taper shank for drilling chuck

Drilling chuck

Arbor

T slot bolt

Washer

Nut

Tilted wedge

Spanner

Oil gun



Optional Accessories

Cooling system

Vices
