D320/D350 Drilling Machine

Quantity:
  • D320/D350
  • FICOM
Overview

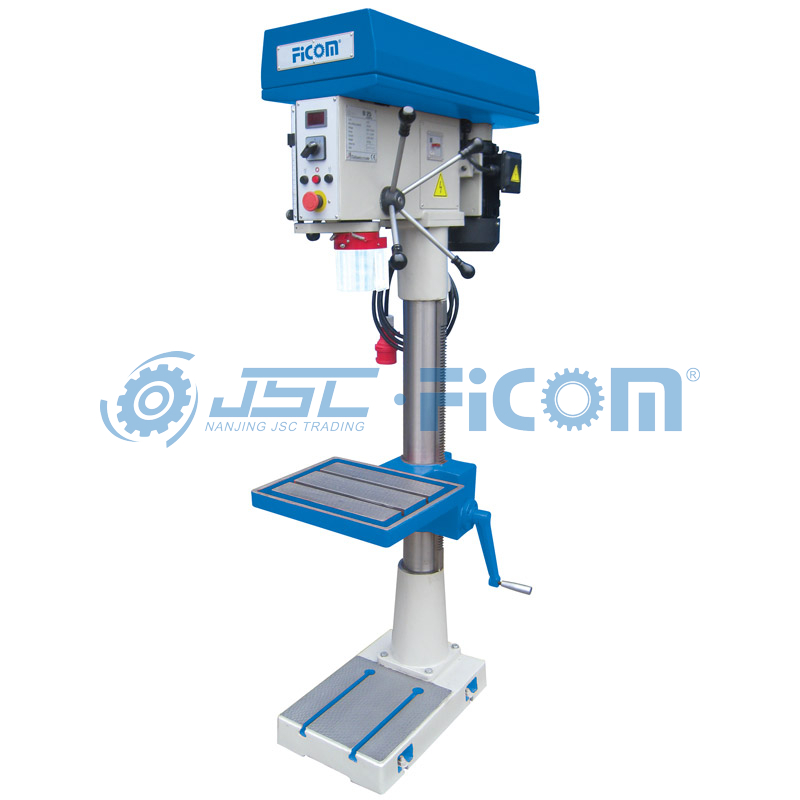

D320

· Two-speed motor

· All main parts are made with quality cast iron

· Wide belt stepless timing

· Digital readout for the display of speed

· With fender device

· Supply 125mm precision vice and cross worktable as special accessories

D320




D350

· Two-speed motor

· Aluminium belt wheel stepless timing

· Mechanical feed

· Particular device for dismounting cutters

· Digital readout for the display of speed

· With coolant device

· With fender device

· Supply 125mm precision vice and TS250 rotation worktable as special accessoriesD350

Technical Parameters
Model No. D320 D350
max. drilling diameter(steel) φ25mm φ35mm
max. tapping diameter M12 M20
max. travel of spindle 110mm 160mm
max. distance from spindle to generating line of column 230mm 320mm
max. distance from spindle nose to surface of worktable 690mm 625mm
max. distance from spindle nose to surface of  base worktable 1180mm 1180mm
max travel of worktable and bracket 555mm 585mm
spindle taper bore 3MT 4MT
spindle speed steps Stepless Stepless
spindle speed range 80~1600r/min 85~1800r/min
spindle feed steps
3
spindle feed range
0.1,0.2,0.3mm/r
dimension of worktable 400×320mm 500×420mm
effective working area of worktable 340×320mm 370×360mm
diameter of column φ100mm φ120mm
power of motor 0.70/1.3Kw 1.0/1.7Kw
machine dimension 820x530x1715mm 965x515x1920mm
packing dimension 840x480x1800mm 1100x600x2010mm
N.W./G.W. 245/280Kg 450/500Kg
