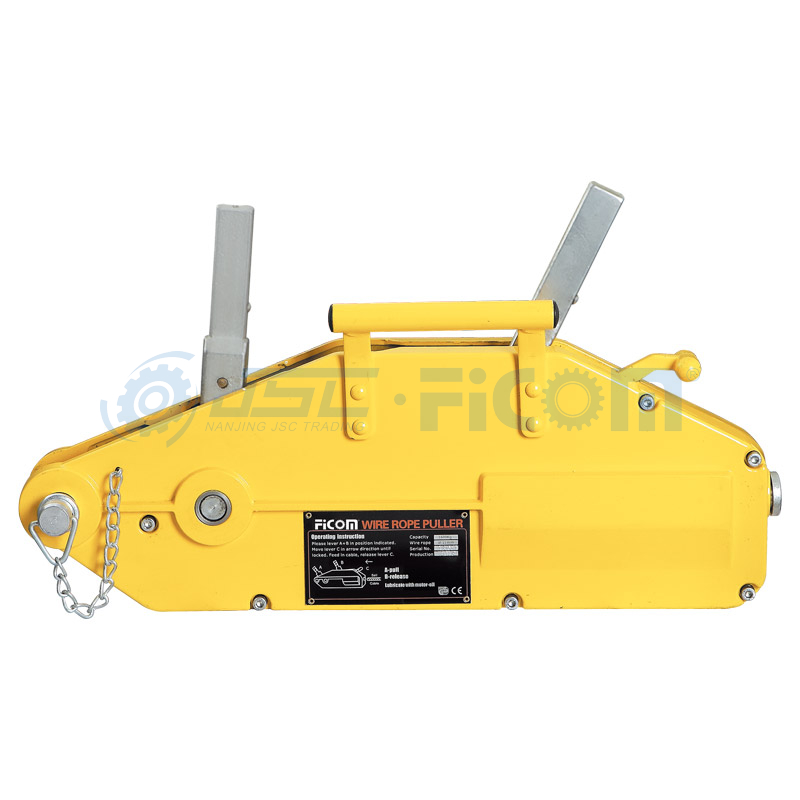

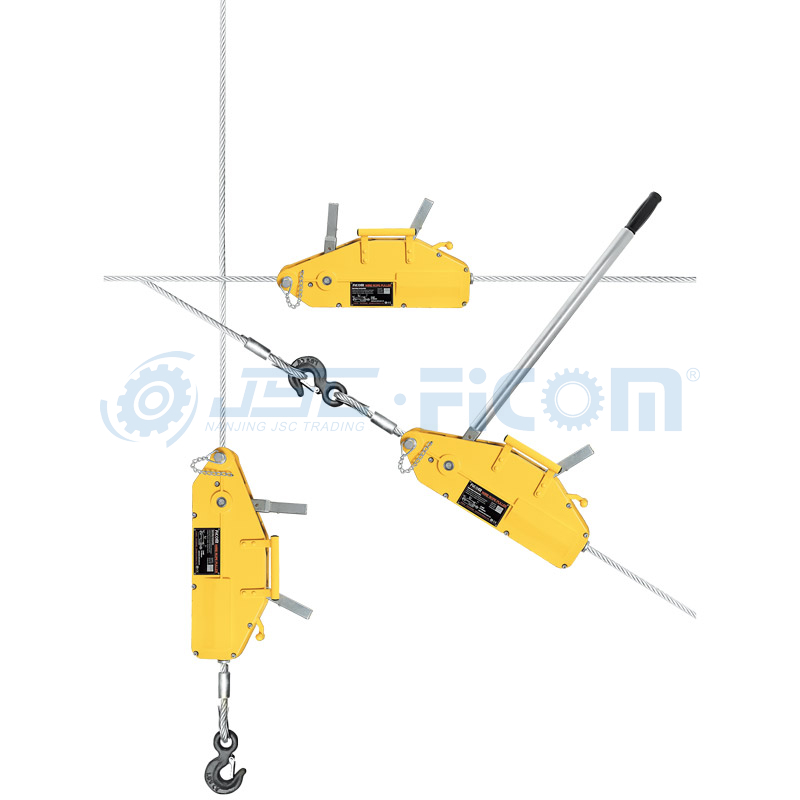

It has a light weight,compact,high strength aluminium alloy housing(TS model is stamped steel housing),with a large flat bottom surface for increased stability in horizontal as well as vertical working position.

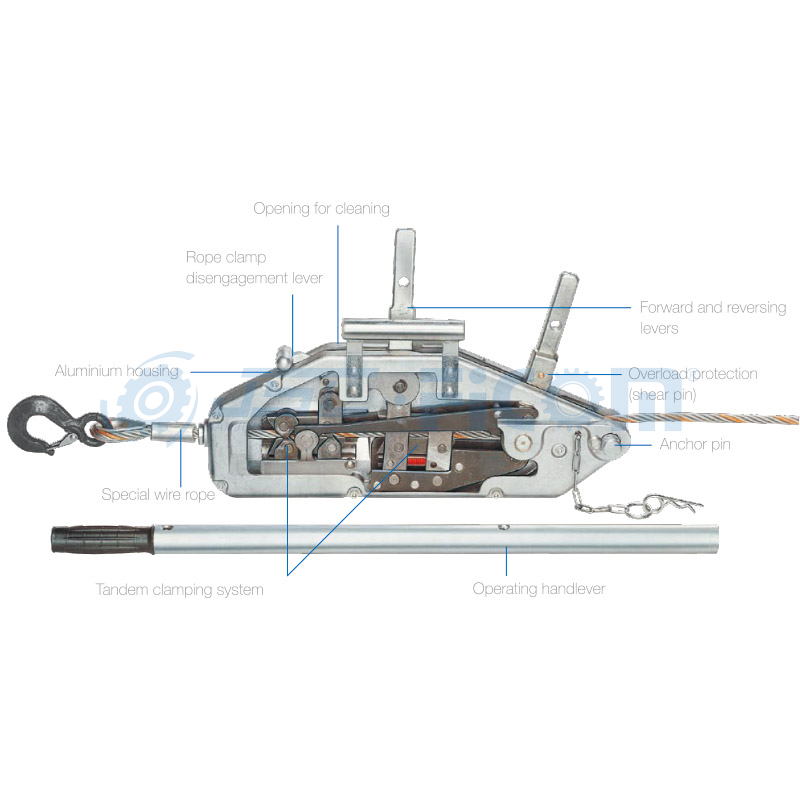

Forward and reversing levers in tandem provide slim design and assure power transfer along the centre ling.
Overload protection is by a shearing pin in the forward lever.Spare shear pins are conveniently located in the carrying handle or operating lever.
A brokenpin can be replaced without removing the load.
A lever disengages the rope clamp system allowing easy,smooth installation of the wire rope.
The rope is tapered at one end for easy threading and fitted with an eye sling hook with safety latch on the other end.
The parellel arrangement of the clamping system protects the wire rope by distributing the clamping forces evenly.
A long rope advance per each lever stroke increases the working speed.
Quantity: | |
---|---|
Capacity pulling force 800-5400kg
*TA: aluminium body *TS: iron casting body
Model | Capacity (kg) | Leaver Pull at WLL (N) | Rope Advance Per Double (mm) | Rope Dia. (mm) | Max. Travelling Load (kg) | Net Weight (kg) |
TA0.8 | 800 | 343 | ≥52 | 8.3 | 1200 | 6 |
TA1.6 | 1600 | 441 | ≥55 | 11 | 2400 | 12.5 |
TA3.2 | 3200 | 441 | ≥28 | 16 | 4000 | 28 |
TA5.4 | 5400 | 745 | ≥30 | 20 | 8000 | 56.5 |
TS0.8 | 800 | 343 | ≥52 | 8.3 | 1200 | 8 |
TS1.6 | 1600 | 441 | ≥55 | 11 | 2400 | 14 |
TS3.2 | 3200 | 441 | ≥28 | 11 | 2400 | 12.5 |

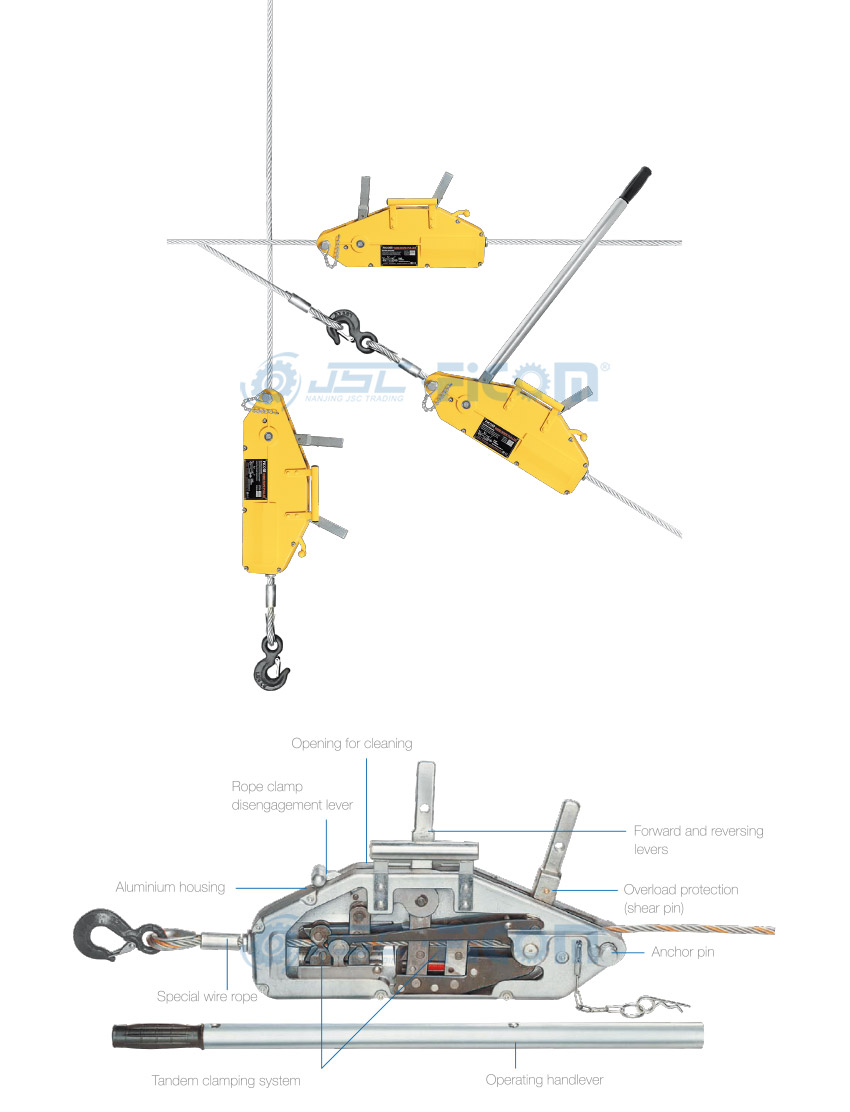

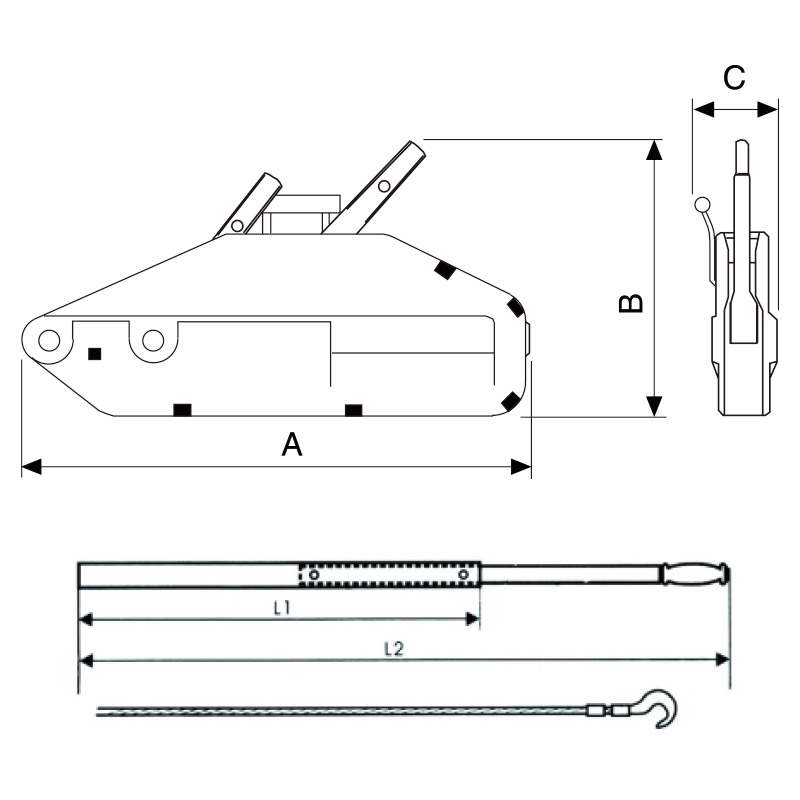

Model | Max. Overall Size | ||||
A | B | C | L1 | L2 | |
TA0.8 | 426 | 235 | 64 | 800 | / |
TA1.6 | 545 | 280 | 97 | 692 | 1200 |
TA3.2 | 660 | 325 | 116 | 692 | 1200 |
TA5.4 | 930 | 480 | 152 | 680 | 1120 |
TS0.8 | 426 | 235 | 64 | 800 | / |
TS1.6 | 545 | 280 | 97 | 692 | 1200 |
TS3.2 | 660 | 325 | 116 | 692 | 1200 |
