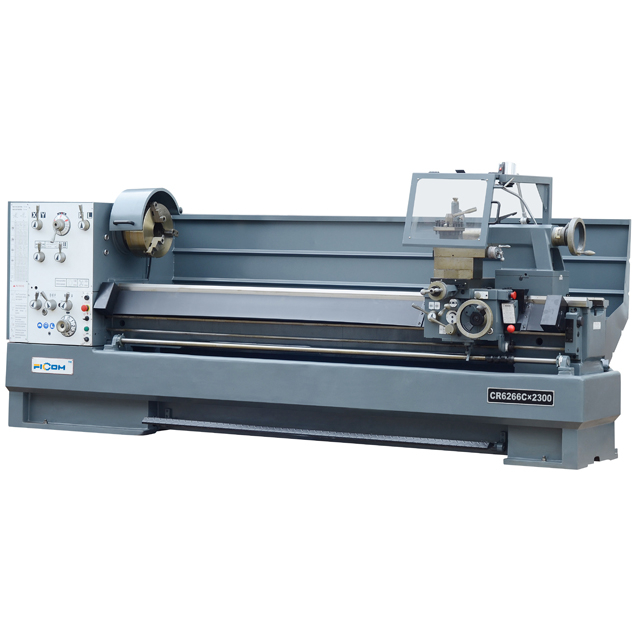

CR62 Series
FICOM
· The surface of the bedways is supersonic frequency hardened
· The spindle bore size is 105mm.the spindle system is high rigid and accuracy
· There is no need for change gears,the machine can turn about 89 kinds of metric,Inch,Module,and D.P.threads.
· An automatic stopping device is used to realize automatic stop for the machining of a workpiece of certain
length.
· One-piece iron casting base allows heavier cuts.
Model | Unit | CR6240 | CR6250 | CR6266 |
CAPACITY | ||||
Distance between centers | mm | 1000(40")/1500(60")/2000(80") | 1000(40")/1500(60")/ 2000(80")/2300(90")/3000(120") | |
Max.swing over bed | mm | 410(16") | 510(20") | 660(26") |
Max.swing over cross slide | mm | 220 | 320 | 455 |
Width of bed | mm | 300 | 350 | |
Max.swing over gap | mm | 640 | 740 | 885 |
Length of gap | mm | 165 | 200 | |
SPINDLE | ||||
Spindle nose | D1-6 | D1-8 | ||
Spindle bore | mm | 58 | 80 | |
Taper bore of spindle | No.6 Morse | No.7 Morse | ||
Steps of spindle speed | 12 | 12 | ||
Range of spindle speed | r/min | 25-2000 | 25-1600 | |
RANGE OF THREAD CUTTING | ||||
Metric threads | 41 kinds,0.1-14mm | 47 kinds,0.2-14mm | ||
Imperial threads | 60 kinds, 2-112TPI | 60 kinds, 2-112TPI | ||
Module threads | 34 kinds, 0.1-7MP | 34 kinds, 0.1-7MP | ||
Diametral threads | 50 kinds, 4-112DP | 50 kinds, 4-112DP | ||
RANGE OF FEED | ||||
Range of longitudinal feeds | 42 kinds,0.031-1.7mm/rev | 35 kinds,0.059-1.646mm/rev | ||
Range of cross feeds | 42 kinds,0.014-0.784mm/rev | 35 kinds,0.020-0.573mm/rev | ||
TAILSTOCK SLEEVE | ||||
Dia.of tailstock sleeve | mm | 60 | 75 | |
Travel of tailstock sleeve | mm | 128 | 180 | |
Taper of tailstock sleeve | No.4 Morse | No.5 Morse | ||
OTHERS | ||||
Size of tool shank | mm | 25x25 | ||
Max travel of cross slide | mm | 285 | 355 | |
Max.travel of compound rest | mm | 128 | 130 | |
Main motor power | kW | 5.5 | 7.5 | |
Overall dimensions(L×W×H) | cm | 220/280/330x108x137 | 240/285/335/370/435x115x151 | |
Packing size(L×W×H) | cm | 225/282/340x113x156 | 245/290/340/375/440x115x182 | |
Net weight | kg | 1750/2000/2150 | 2000/2250/2400 | 2420/2540/2800/2880/3200 |
Gross weight | kg | 2060/2340/2530 | 2310/2590/2780 | 2800/2930/3200 /3290/3680 |
3 jaw chuck and adapter | 4 jaw chuck and adapter | face plate | steady rest |
follow rest | oil gun | one pc iron casting stand | operation manual |
one set of wrenches | 2 dead centers | sleeve | foot brake |
coolant pump | halogen lamp | splash guard | micro carriage stop |
quick change tool post | driving plate | taper turning attachment | digital readout（1.5/2/3） |
Nr 12 standard for Brazil |
