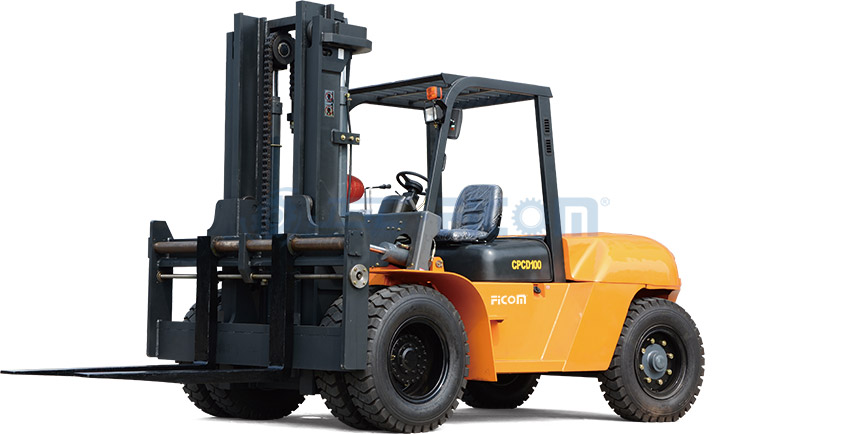

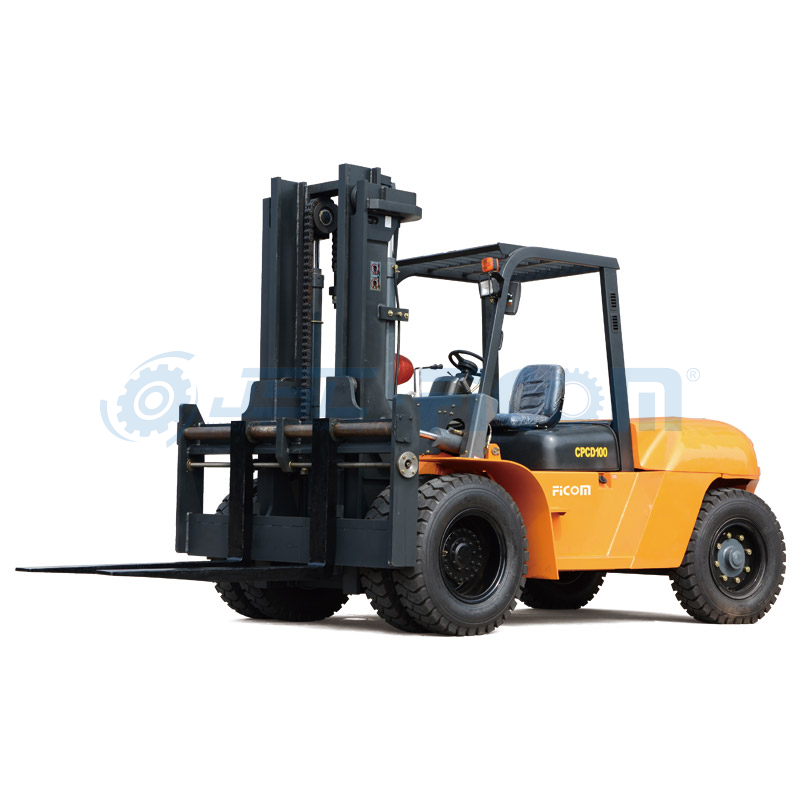

CPCD80 / CPCD100 Diesel Forklift 8-10ton

Quantity:
  • CPCD80 / CPCD100
  • FICOM
Overview


109

Technical Parameters


Model Unit

CPCD80

CPCD100

Power Type
Diesel
Diesel
Rated Capacity kg 8000 10000
Load Centre mm 600 600
Lift Height mm 3000 3000
Free lift Height
200 200
Fork Size(L×W×T) mm 1300×152×60 1500×180×80
Mast Tilt Angle(F/R) Deg 6°/12° 6°/12°
Overall Length (ex. fork length) mm 5120 5750
Overall Width mm 2165 2165
Mast Lowered Height mm 2850 2850
Mast Extended Height (With backrest) mm 4250 4250
Overhead Guard Height mm 2580 2580
Min.Turning Radius mm 3700 3950
Travel speed(Full load) km/h 28 28
Lifting speed (Full load) mm/s 350 350
Max. Gradeability % 20 20
Service Weight kg 10850 12510
Front Tire
4×900-20-14PR 4×900-20-14PR
Rear Tire
4×900-20-14PR 4×900-20-14PR
Wheelbase mm 2500 2800
Min. Ground Clearance (Bottom of mast) mm 250 250
Battery V/Ah 2*12/80 2*12/80
Model
6102 6BG1QC-02
Manufacture
CHINA CHAOCHAI JAPAN ISUZU
Rated Output kw/rpm 81/2500 82.4/2000
Rated Torque N·m/rpm 353/1700 416.8/1500
Displacement cc 5785 6494
 Fuel Tank Capacity L 140 140
