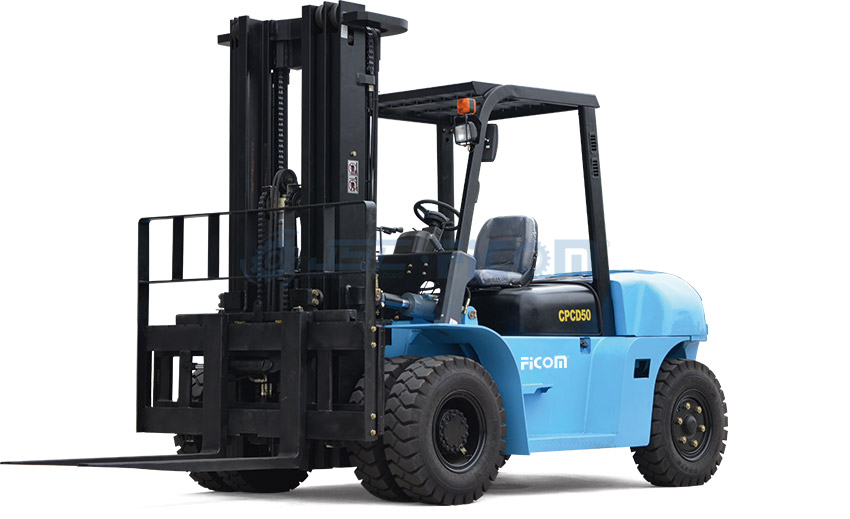

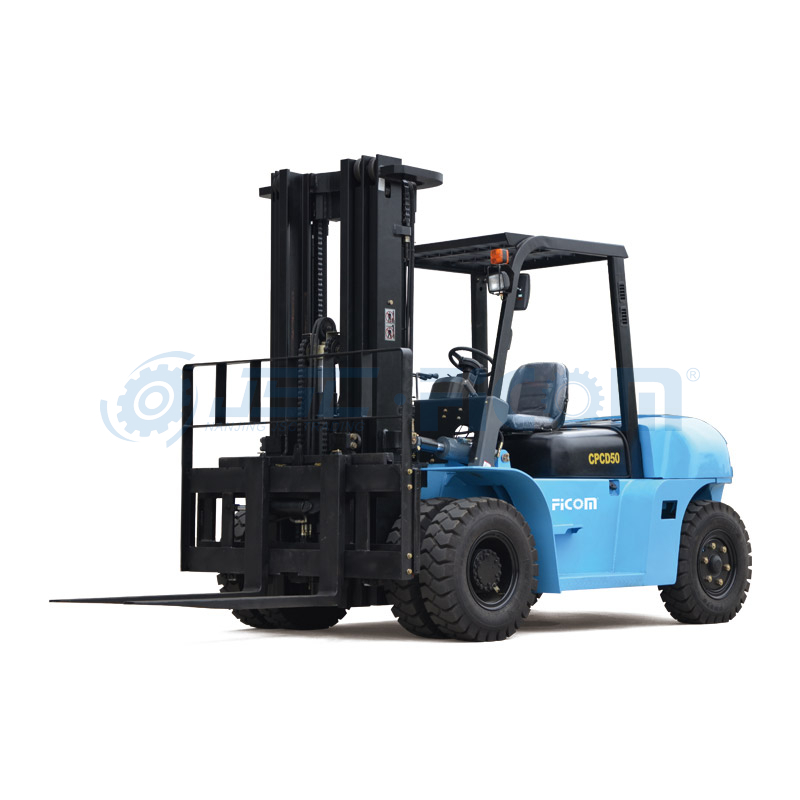

CPCD50 / CPCD60 / CPCD70
FICOM
| Model | Unit | CPCD50 | CPCD60 | CPCD70 |
| Power Type | Diesel | Diesel | Diesel | |
| Rated Capacity | kg | 5000 | 6000 | 7000 |
| Load Centre | mm | 600 | 600 | 600 |
| Lift Height | mm | 3000 | 3000 | 3000 |
| Free lift Height | 160 | 160 | 160 | |
| Fork Size(L×W×T) | mm | 1220×150×60 | 1220×150×60 | 1220×150×60 |
| Mast Tilt Angle(F/R) | Deg | 6°/12° | 6°/12° | 6°/12° |
| Overall Length (ex. fork length) | mm | 3472 | 3592 | 3592 |
| Overall Width | mm | 1995 | 1995 | 1995 |
| Mast Lowered Height | mm | 2519 | 2519 | 2519 |
| Mast Extended Height (With backrest) | mm | 4419 | 4419 | 4419 |
| Overhead Guard Height | mm | 2500 | 2500 | 2500 |
| Min.Turning Radius | mm | 3300 | 3450 | 3450 |
| Travel speed(Full load) | km/h | 24 | 24 | 24 |
| Lifting speed (Full load) | mm/s | 390 | 390 | 390 |
| Max. Gradeability | % | 20 | 20 | 20 |
| Service Weight | kg | 8240 | 8840 | 9530 |
| Front Tire | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | |
| Rear Tire | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | |
| Wheelbase | mm | 2250 | 2250 | 2250 |
| Min. Ground Clearance (Bottom of mast) | mm | 180 | 180 | 180 |
| Battery | V/Ah | 2*12/80 | 2*12/80 | 2*12/80 |
| Model | 6102 | 1104D-44TA | 6BG1QC-02 | |
| Manufacture | CHINA CHAOCHAI | UK PERKINS | JAPAN ISUZU | |
| Rated Output | kw/rpm | 81/2500 | 83/2200 | 82.4/2000 |
| Rated Torque | N·m/rpm | 353/1700 | 418/1400 | 416.8/1500 |
| Displacement | cc | 5785 | 4400 | 6494 |
| Fuel Tank Capacity | L | 140 | 140 | 140 |
| Model | Unit | CPCD50 | CPCD60 | CPCD70 |
| Power Type | Diesel | Diesel | Diesel | |
| Rated Capacity | kg | 5000 | 6000 | 7000 |
| Load Centre | mm | 600 | 600 | 600 |
| Lift Height | mm | 3000 | 3000 | 3000 |
| Free lift Height | 160 | 160 | 160 | |
| Fork Size(L×W×T) | mm | 1220×150×60 | 1220×150×60 | 1220×150×60 |
| Mast Tilt Angle(F/R) | Deg | 6°/12° | 6°/12° | 6°/12° |
| Overall Length (ex. fork length) | mm | 3472 | 3592 | 3592 |
| Overall Width | mm | 1995 | 1995 | 1995 |
| Mast Lowered Height | mm | 2519 | 2519 | 2519 |
| Mast Extended Height (With backrest) | mm | 4419 | 4419 | 4419 |
| Overhead Guard Height | mm | 2500 | 2500 | 2500 |
| Min.Turning Radius | mm | 3300 | 3450 | 3450 |
| Travel speed(Full load) | km/h | 24 | 24 | 24 |
| Lifting speed (Full load) | mm/s | 390 | 390 | 390 |
| Max. Gradeability | % | 20 | 20 | 20 |
| Service Weight | kg | 8240 | 8840 | 9530 |
| Front Tire | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | |
| Rear Tire | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | |
| Wheelbase | mm | 2250 | 2250 | 2250 |
| Min. Ground Clearance (Bottom of mast) | mm | 180 | 180 | 180 |
| Battery | V/Ah | 2*12/80 | 2*12/80 | 2*12/80 |
| Model | 6102 | 1104D-44TA | 6BG1QC-02 | |
| Manufacture | CHINA CHAOCHAI | UK PERKINS | JAPAN ISUZU | |
| Rated Output | kw/rpm | 81/2500 | 83/2200 | 82.4/2000 |
| Rated Torque | N·m/rpm | 353/1700 | 418/1400 | 416.8/1500 |
| Displacement | cc | 5785 | 4400 | 6494 |
| Fuel Tank Capacity | L | 140 | 140 | 140 |
