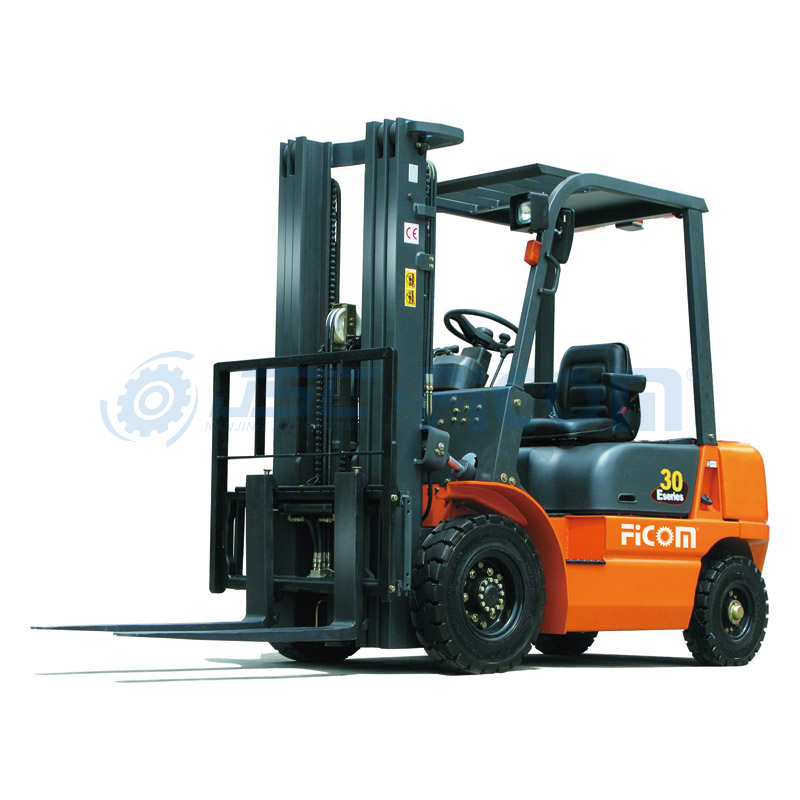

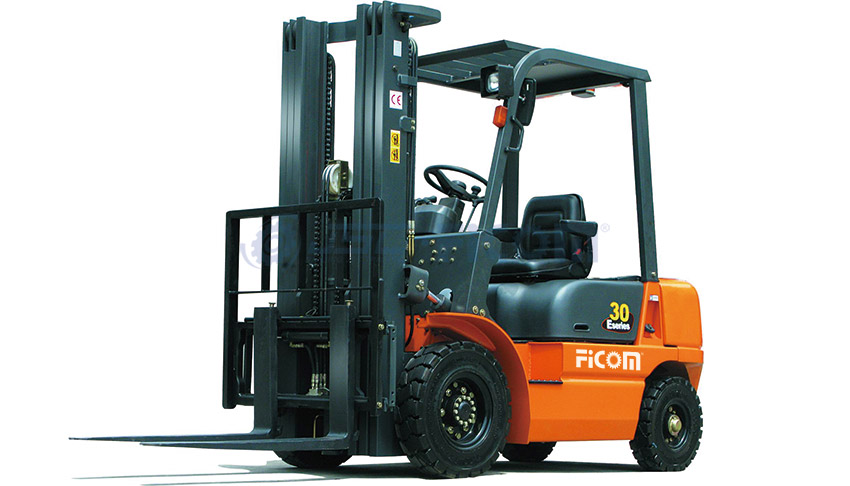

CPCD Diesel Forklift 1.5-3.5ton

Quantity:
  • CPCD
  • FICOM
Overview


107

Technical Parameters


Model Unit CPCD15 CPCD20 CPCD25 CPCD30 CPCD35
Power Type
Diesel Diesel Diesel Diesel Diesel
Rated Capacity kg 1500 2000 2500 3000 3500
Load Center mm 500 500 500 500 500
Lift Height mm 3000 3000 3000 3000 3000
Free lift Height
120 120 120 120 120
Fork Size(L×W×T) mm 920×100×35 1070×120×40 1070×120×40 1070×130×45 1070×140×45
Mast Tilt Angle(F/R) Deg 6°/12° 6°/12° 6°/6° 6°/12° 6°/12°
Overall length (ex. fork length) mm 2230 2530 2600 2730 2790
Overall Width mm 1080 1150 1150 1250 1250
Mast Lowered Height mm 1995 1995 1995 2005 2005
Mast Extended Height (With backrest) mm 3960 4200 4200 4210 4210
Overhead Guard Height mm 2070 2130 2130 2180 2180
Min.Turning Radius mm 1995 2170 2240 2450 2450
Travel (Full load) km/h 14 20 20 18.5 18.5
Lifting (Full load) mm/s 460 450 450 400 400
Max. Gradeability % 20 20 19 20 20
Service Weight kg 2700 3340 3690 4200 4280
Front Tire
6.50-10- 10PR 7.00-12-12PR 7.00-12-12PR 28*9-15-12PR 28*9-15-12PR
Rear Tire
5.00-8-10PR 6.00-9-10PR 6.00-9-10PR 6.50-10-10PR 6.50-10-10PR
Wheelbase mm 1430 1600 1600 1700 1760
Ground Clearance (Bottom of mast) mm 110 120 120 140 140
Voltage/Capacity V/Ah 12/80 12/80 12/80 12/80 12/80
Model
NC485BPG  C490BPG -252 C240PKJ 4JG2PE S4S
Manufacturer
CHINA XINCHAI CHINA XINCHAI JAPAN ISUZU JAPAN ISUZU JAPAN MITSUBISHI
Rated Output kw/rpm 33.5/2650 40/2650 34.5/2500 45/2500 38/2300
Rated Torque N·m/rpm 139/1900 145/1900  139/1800 187/1800 176/1800
Displacement cc 2380 2540 2369 3059 3331
Fuel Tank Capacity L 50 60 60 60 70
