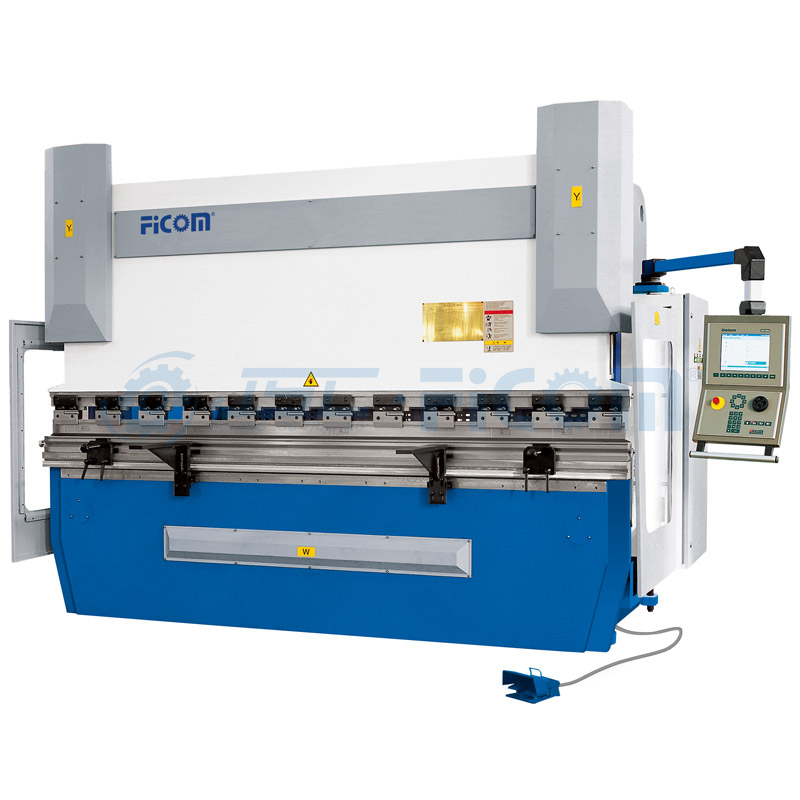

CPB Series CNC Hydraulic Press Brake

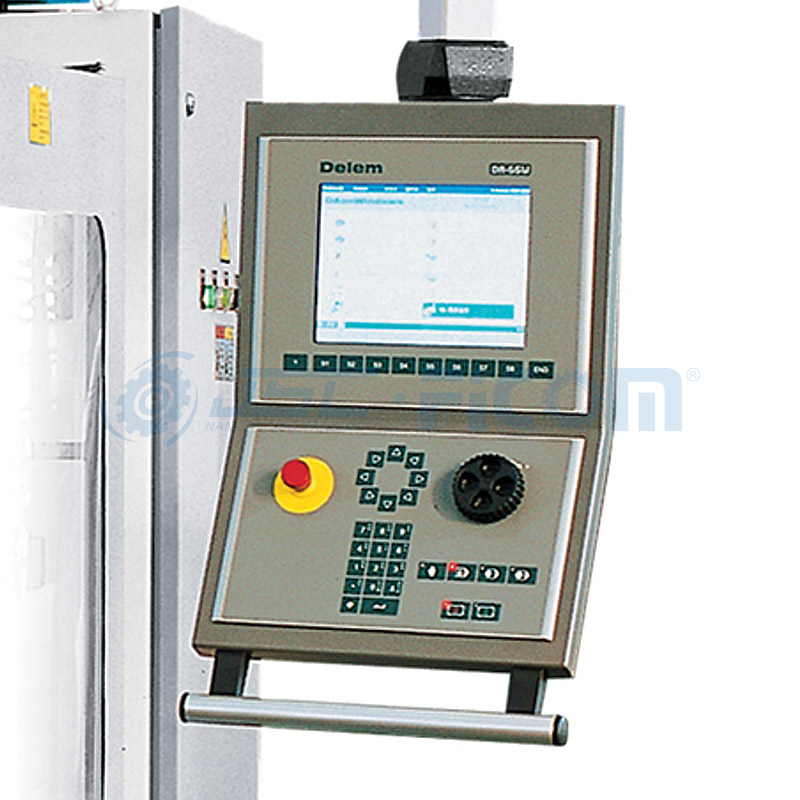

· CPB series CNC hydraulic press brake has two hydraulic cylinders with electro hydraulic servo valve. Deflection can be compensated by hydraulic vaulted back-off system. Backgauge mechanism can control several backgauge axes. Its frame is welded with steel plate and is treated with annealing. Hydraulic system adopts integrated control system and imported ring seals. It has a beautiful and simple contour. CNC system uses DA65W or DA66W system with Chinese manu made in delem company of Holland. It can also be equipped with mould fixture according to customer’s requirement.

Quantity:
  • CPB
  • FICOM
Overview



CPB

CPB-100×3200

Technical Parameters
Model No.

nominal

force

(Kn)

working

length

(mm)

frame

distance

(mm)

max. shut

height

(mm)

ram

stroke

(mm)

throat

gap

(mm)

worktable

width

(mm)

idle

speed

(mm/s)

work

speed

(mm/s)

retum

speed

(mm/s)

backgauge

stroke

(mm)

G.W.

(Kg)

dimensions

(L×W×H)

(mm)

CPB-63×2500 630 2500 2060 440 200 300 150 100 8 100 500 5500 2825×1650×2430
CPB-100×3200 1000 3200 2700 480 200 400 200 100 8 100 500 8000 3500×1650×2540
CPB-100×4200 1000 4200 3700 480 200 400 200 100 8 100 500 9500 4500×1650×2540
CPB-160×3200 1600 3200 2700 480 200 400 200 100 8 100 500 10000 3500×1650×2580
CPB-160×4200 1600 4200 3700 480 200 400 200 100 8 100 500 12000 4500×1650×2580
CPB-250×3200 2500 3200 2700 480 200 400 200 100 8 100 500 15000 3500×1730×2580
CPB-250×4200 2500 4200 3700 480 200 400 200 100 8 100 500 16000 4500×1730×2580
CPB-300×3000 3000 3000 2500 480 200 400 230 80 8 85 500 20000 3300×1950×2670
CPB-300×4000 3000 4000 3500 480 200 400 230 80 8 85 500 22000 4300×1950×2670
CPB-400×4000 4000 4000 3400 480 320 400 230 80 8 80 500 27000 4500×2000×2930
CPB-400×5000 4000 5000 4050 480 320 400 230 80 8 80 500 32000 5500×2000×2930
CPB-500×6000
5000 6000 5050 570 320 400 300 75 8 80 700 45000 6500×2700×5260
CPB-600×6000
6000 6000 5050 640 320 400 300 75 7 80 700 61000 6500×3000×5860
CPB-800×8000
8000 8000 6340 820 400 500 400 75 7 80 1000 105000 8500×3300×6460
CPB-1000×8000
10000 8000 6340 820 400 600 400 70 7 70 1000 130000 8500×4635×6860
CPB-1200×8000
12000 8000 6340 920 400 600 400 65 7 65 1000 155000 8500×4300×7276
CPB-1200×10000 12000
10000 7050 920 400 600 400 65 7 65 1000 220000 10500×4700×7276
CPB-1600×10000
16000 10000 7050 920 400 600 500 60 7 60 1000 320000 12500×5500×10000
CPB-2500×14000
25000 14000 11000 920 400 600 500 60 7 60 1000 420000 16500×6000×10500


CPB-F
