Views: 1 Author: JSC Publish Time: 2026-10-09 Origin: Site
A CNC Mechanical Type Turret Punch Machine is an important piece of equipment for manufacturers that require efficient, accurate, and repeatable sheet metal processing. By combining mechanical punching technology with computer numerical control, this machine can perform multiple punching operations according to programmed instructions, helping manufacturers improve productivity and maintain consistent processing quality.
For sheet metal fabrication businesses handling different component designs, production volumes, and delivery requirements, a reliable CNC turret punching machine can help reduce manual operations, improve workflow efficiency, and support flexible manufacturing.
JSC Machinery provides metalworking machinery solutions for manufacturers looking to optimize their sheet metal production processes.

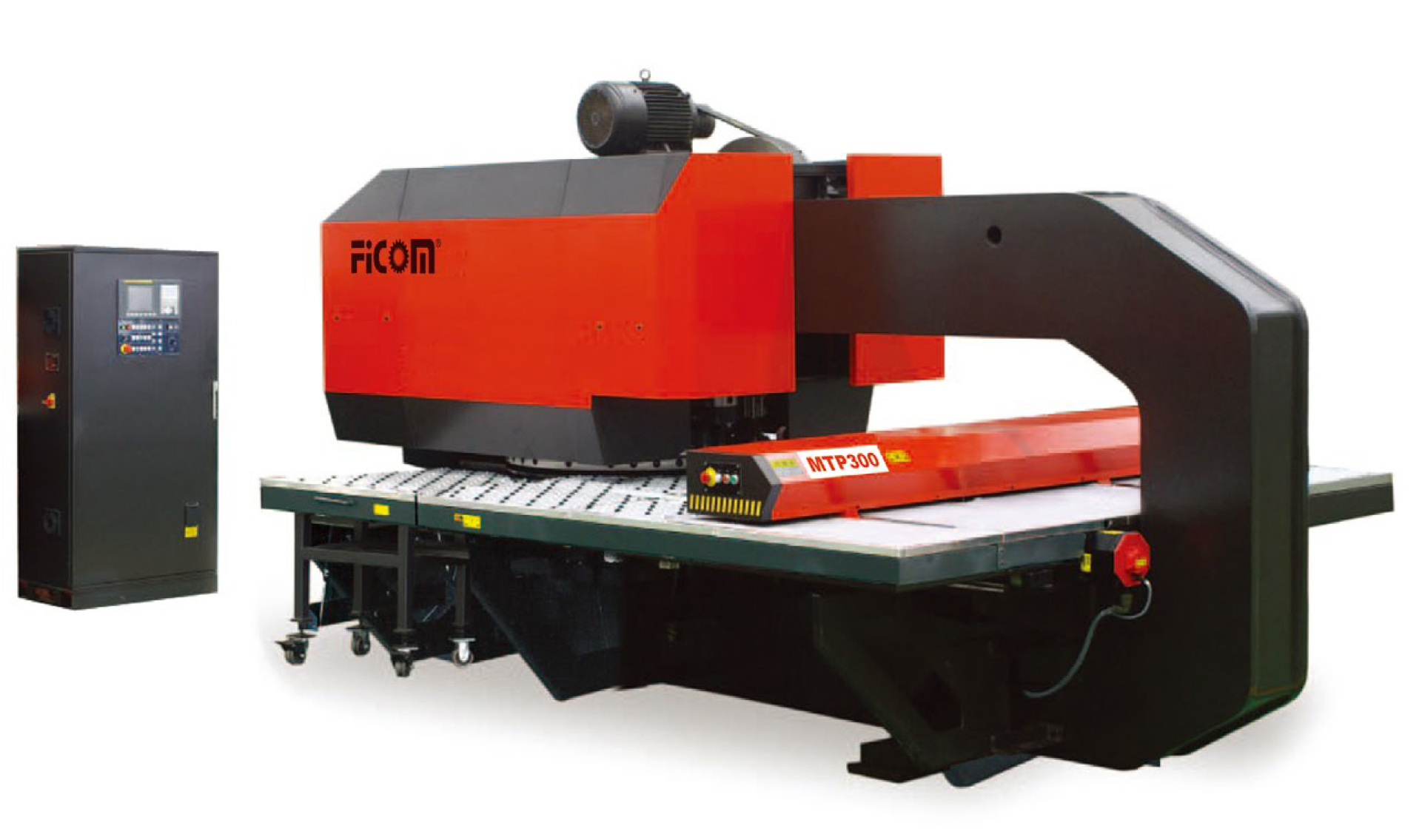

A CNC Mechanical Type Turret Punch Machine is a sheet metal processing machine that uses mechanical force to punch holes, slots, and other shapes into metal sheets. Its CNC control system manages punching positions and movement according to programmed processing data.
The turret holds multiple punching tools, allowing the machine to select different punches and dies during production. This design reduces the need for frequent manual tool changes and supports the processing of components with various hole sizes and patterns.
Compared with conventional manual punching equipment, a CNC mechanical turret punch press offers greater automation, improved repeatability, and more efficient handling of complex punching tasks.
Production efficiency is a major concern for sheet metal manufacturers. Manual punching and repeated tool changes can increase processing time, particularly when components require multiple holes or different punching shapes.
A CNC Mechanical Type Turret Punch Machine can execute programmed punching sequences automatically. Its turret design allows operators to switch between compatible tools without replacing each tool manually, helping reduce non-cutting time and improve production throughput.
Accurate hole positioning is essential for components used in electrical enclosures, control cabinets, machinery housings, and other assembled products.
CNC positioning helps the machine follow programmed coordinates consistently, reducing errors associated with manual measurement and positioning. With suitable tooling, proper machine maintenance, and correct processing parameters, manufacturers can achieve repeatable punching results across production batches.
Different sheet metal products often require various hole diameters, slots, notches, and other shapes. A multi-station turret allows multiple compatible tools to remain installed and ready for use.
This configuration makes the CNC turret punch press suitable for processing diverse component designs. Manufacturers can adjust programs and tool combinations to accommodate different product specifications while reducing unnecessary setup operations.
Labor availability and operator workload can affect production schedules. CNC automation helps reduce repetitive manual positioning and punching operations.
Once the program and tooling have been prepared, the machine can perform punching sequences with limited operator intervention, depending on the workpiece handling arrangement and production setup.
Operators can focus more on material preparation, quality inspection, machine monitoring, and other value-added tasks.
For manufacturers producing repeated batches of sheet metal parts, consistent processing is important for quality control and delivery reliability.
Stored CNC programs can be reused for recurring jobs, reducing repeated programming and setup work. When the material, tooling, and machine conditions remain consistent, this can help maintain more uniform production results and simplify process management.
A CNC Mechanical Type Turret Punch Machine is suitable for a wide range of sheet metal fabrication applications.
Electrical Cabinets and Control Panels
Punching holes and openings for switches, connectors, ventilation, and electrical components.
Industrial Enclosures
Processing mounting holes, ventilation patterns, slots, and other features required for equipment housings.
Metal Furniture and Office Equipment
Manufacturing perforated panels, brackets, cabinet components, and structural sheet metal parts.
HVAC and Ventilation Components
Producing holes, slots, and patterns for suitable sheet metal duct accessories, covers, and ventilation panels.
Automotive and Machinery Components
Processing sheet metal brackets, mounting plates, equipment covers, and other parts requiring repeated punching operations.
The machine's suitability for a particular application depends on material type, sheet thickness, punching force, tooling configuration, and required component geometry.
Selecting suitable equipment requires more than comparing the initial purchase price. Manufacturers should evaluate the machine's technical capabilities against their actual production requirements.
Different materials and thicknesses require different punching forces and tooling configurations. Buyers should confirm the machine's rated capacity for the materials they process most frequently.
The machine's nominal punching force and working area should match the dimensions and processing requirements of typical workpieces. Choosing appropriate specifications helps avoid unnecessary limitations during production.
The number of turret stations affects the range of tools that can be installed and the flexibility of the punching process. Buyers should also confirm tool compatibility, indexing requirements, and the availability of suitable punches and dies.
An easy-to-use CNC control system can simplify program creation, job changes, and production management. Consider the availability of CAD/CAM integration, program storage, and functions that support the intended workflow.
For higher production volumes, consider whether loading, unloading, sheet positioning, and finished-part handling can be integrated efficiently. The right configuration depends on workpiece size, production volume, available floor space, and labor requirements.
Reliable operation depends on regular maintenance, suitable spare parts, and timely technical assistance. Before purchasing, clarify installation requirements, operator training, maintenance procedures, and after-sales support arrangements.
Different punching technologies serve different manufacturing needs.
A mechanical turret punch press uses mechanical drive technology to deliver punching force and is suitable for applications within its rated capacity. A hydraulic punching machine uses hydraulic power to generate force and may offer different control characteristics depending on its design. Laser cutting equipment uses a focused laser beam to cut profiles and openings without conventional punching tools.
For repetitive sheet metal components requiring numerous holes and standardized shapes, a CNC mechanical turret punch machine can be an effective solution. For intricate contours, frequent design changes, or geometries that are difficult to produce with standard tooling, laser cutting may be more appropriate.
Some manufacturers use punching and laser cutting together to balance production speed, flexibility, and processing cost.
The best solution depends on part geometry, material thickness, production volume, tooling costs, and the required finished-part quality.
Manufacturing costs include more than the cost of raw materials and equipment. Setup time, labor, tool changes, rejected parts, maintenance, and production interruptions also influence the cost per component.
A CNC Mechanical Type Turret Punch Machine can help control these costs by automating repetitive punching sequences, improving positioning consistency, and reducing unnecessary manual operations.
For repeat production, reusable CNC programs can shorten preparation time. A suitable turret configuration can reduce tool-change requirements, while appropriate process planning helps minimize material waste and unnecessary handling.
However, actual cost savings depend on machine utilization, product design, operator skills, tooling expenses, maintenance requirements, and production volume. Manufacturers should evaluate total operating costs rather than relying solely on rated machine speed.
JSC Machinery provides metalworking machinery solutions for manufacturers seeking practical equipment for sheet metal fabrication and industrial production.
When evaluating a CNC Mechanical Type Turret Punch Machine, buyers should consider not only the machine specifications but also the suitability of the proposed configuration, tooling requirements, production objectives, and technical support.
By identifying the materials, sheet dimensions, punching patterns, and expected production volume, manufacturers can make a more informed equipment selection and build a more efficient sheet metal processing workflow.
For more information about metalworking machinery and available solutions, visit the JSC Machinery website:
It is used to punch holes, slots, notches, and other shapes in sheet metal. Common applications include electrical cabinets, industrial enclosures, metal panels, machinery housings, and selected HVAC components.
A CNC turret punch press uses programmed positioning and a multi-tool turret to automate punching sequences. A conventional punching machine may require more manual positioning and tool changes, depending on its configuration.
Depending on machine capacity and tooling, it can process suitable sheet metals such as mild steel, stainless steel, and aluminum. Material thickness and punching performance must remain within the machine's rated limits.
It can reduce repetitive manual operations, shorten tool-change interruptions, reuse stored programs, and maintain consistent punching positions. Actual productivity depends on the workpiece design, machine configuration, and material-handling process.
Consider material type, maximum sheet thickness, punching force, working area, turret stations, tool compatibility, CNC functions, automation requirements, maintenance, and technical support. Matching these factors to actual production needs helps avoid over- or under-specifying the machine.
Yes. It can be suitable for small-batch production when the required tooling and programming effort are justified. For highly customized parts with complex contours and frequent design changes, manufacturers should also compare laser cutting and other processing methods.
A CNC Mechanical Type Turret Punch Machine can help sheet metal manufacturers improve punching efficiency, maintain consistent quality, and process a wide range of component designs. Its CNC control and multi-tool turret make it a practical option for production environments that require repeatable punching operations and flexible tool selection.
By evaluating machine capacity, tooling compatibility, automation, and operating costs, manufacturers can select equipment that supports their long-term production goals.
JSC Machinery is committed to providing metalworking machinery solutions that help manufacturers make informed equipment decisions and improve their production processes.
