CNC Lathe with Inclined Bed: Improving Precision, Productivity, and Reliability

Manufacturers worldwide continue to face increasing demands for tighter tolerances, faster delivery times, and lower production costs. Traditional machining methods often struggle to maintain consistent quality while meeting modern production requirements.

A CNC Lathe with Inclined Bed offers an advanced solution by combining high structural rigidity, efficient chip evacuation, and superior machining accuracy. Whether producing small precision parts or large industrial components, slant bed CNC lathes provide the stability and automation needed for today's competitive manufacturing environment.

What Is a CNC Lathe with Inclined Bed?

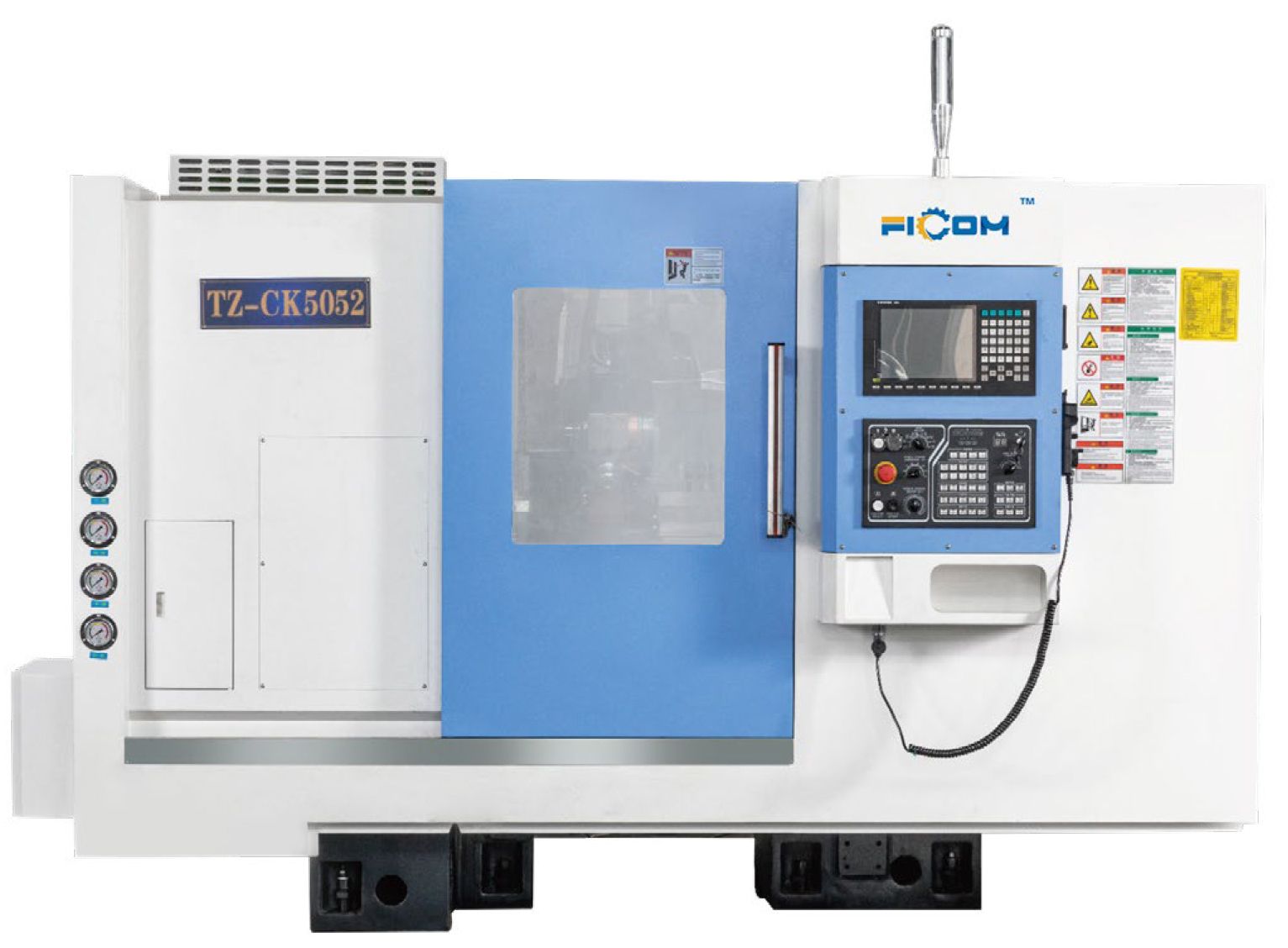

A CNC Lathe with Inclined Bed is a computer-controlled turning machine featuring a bed structure positioned at an angle, typically between 30° and 45°. Unlike flat bed lathes, the inclined design allows chips to fall away naturally while improving machine rigidity and operator accessibility.

The slant bed construction also lowers the machine's center of gravity, reducing vibration during high-speed machining and enabling greater dimensional accuracy.

This design has become standard in modern CNC turning centers due to its balance of speed, stability, and precision.

Key Advantages of a CNC Lathe with Inclined Bed

Superior Structural Rigidity

The inclined bed structure distributes cutting forces more efficiently than traditional flat bed machines. This minimizes deformation during heavy cutting operations and helps maintain stable machining performance over long production cycles.

Higher rigidity results in:

· Better surface finish

· Improved dimensional consistency

· Reduced tool chatter

· Longer machine life

Excellent Chip Evacuation

One of the biggest advantages of the inclined bed design is efficient chip removal.

Gravity allows chips to fall directly into the conveyor or chip collection system, preventing accumulation around the cutting area.

Benefits include:

· Lower risk of tool damage

· Improved machining stability

· Reduced downtime

· Cleaner working environment

· Higher automation efficiency

Efficient chip management is especially important when machining steel, stainless steel, cast iron, and aluminum alloys.

Higher Machining Accuracy

Modern CNC Lathe with Inclined Bed machines are designed with precision linear guideways or box guideways, high-quality ball screws, and advanced spindle systems.

These components help achieve:

· Excellent positioning accuracy

· High repeatability

· Stable thermal performance

· Consistent production quality

This makes the machine suitable for industries requiring micron-level precision.

High-Speed Machining Performance

The rigid machine structure supports high spindle speeds and rapid axis movement without sacrificing stability.

High-speed machining offers:

· Shorter cycle times

· Increased production capacity

· Lower manufacturing costs

· Better utilization of cutting tools

For manufacturers producing large batches, these productivity gains significantly improve profitability.

Improved Operator Accessibility

The inclined machine layout provides better visibility of the machining area while making tool changes and maintenance more convenient.

This ergonomic design improves:

· Operator safety

· Faster setup

· Reduced maintenance time

· Easier programming verification

Industries That Benefit from CNC Lathe with Inclined Bed

The versatility of slant bed CNC lathes makes them suitable for numerous industries.

Automotive Manufacturing

Production of:

· Transmission shafts

· Brake components

· Engine parts

· Wheel hubs

· Suspension components

High repeatability is essential for automotive mass production.

Aerospace Industry

Aerospace manufacturers require precision turning of:

· Titanium components

· Landing gear parts

· Hydraulic fittings

· Engine components

Stable machining helps maintain strict quality standards.

Medical Equipment

Medical manufacturers machine:

· Surgical instruments

· Orthopedic implants

· Dental components

· Stainless steel precision parts

Surface finish and dimensional accuracy are critical.

Energy Industry

Oil & gas and energy companies use CNC turning for:

· Valve bodies

· Pipe fittings

· Pump shafts

· Flanges

These parts often require machining of difficult materials.

General Precision Engineering

The machine is widely used for producing:

· Bearings

· Couplings

· Bushings

· Connectors

· Hydraulic components

Important Features to Consider

When selecting a CNC Lathe with Inclined Bed, buyers should evaluate several key specifications.

Bed Construction

A heavily ribbed cast iron base provides excellent vibration absorption and long-term stability.

Spindle Performance

Important considerations include:

· Maximum spindle speed

· Torque output

· Bearing quality

· Thermal stability

Guideway Type

Options include:

· Linear guideways for speed

· Box guideways for heavy cutting

The right choice depends on production requirements.

Turret System

Modern servo turrets enable rapid indexing while maintaining high positioning accuracy.

Live tooling capability further expands machining flexibility.

CNC Controller

Advanced controllers provide:

· User-friendly programming

· Tool life management

· Network connectivity

· Automatic diagnostics

· Production monitoring

How a CNC Lathe with Inclined Bed Reduces Manufacturing Costs

Although initial investment may be higher than conventional machines, operating costs are often significantly lower.

Cost-saving benefits include:

· Reduced labor requirements

· Less material waste

· Longer tool life

· Lower maintenance costs

· Higher machine utilization

· Reduced production downtime

These advantages contribute to a lower total cost of ownership over the machine's service life.

Maintenance Tips for Long-Term Performance

Routine maintenance helps maximize machine reliability.

Recommended practices include:

· Lubricate guideways regularly.

· Inspect spindle bearings periodically.

· Clean chip conveyors daily.

· Check coolant concentration.

· Verify machine geometry.

· Calibrate axes according to the maintenance schedule.

· Replace worn cutting tools promptly.

· Monitor vibration and spindle temperature.

Preventive maintenance minimizes unexpected downtime and extends equipment life.

Future Trends in CNC Lathe with Inclined Bed Technology

Manufacturing continues to evolve toward intelligent automation.

Future developments include:

· AI-assisted machining optimization

· Digital twin simulation

· Predictive maintenance

· Remote machine monitoring

· Industrial IoT integration

· Automated tool management

· Robotic loading systems

· Energy-efficient drive technologies

These innovations will further enhance productivity and operational efficiency.

Frequently Asked Questions (FAQ)

Why is an inclined bed better than a flat bed?

The inclined bed offers better rigidity, improved chip evacuation, reduced vibration, and higher machining precision, making it more suitable for high-speed and precision production.

Can a CNC Lathe with Inclined Bed machine difficult materials?

Yes. These machines can efficiently process stainless steel, alloy steel, titanium, aluminum, brass, cast iron, and many other engineering materials.

Is a slant bed CNC lathe suitable for mass production?

Absolutely. Automatic tool changing, fast axis movement, and stable machining make it ideal for medium- and high-volume manufacturing.

How does the inclined bed improve tool life?

Improved rigidity and smoother chip removal reduce cutting vibration and heat generation, allowing cutting tools to last longer.

What industries commonly use CNC Lathe with Inclined Bed?

Automotive, aerospace, medical, energy, electronics, machinery manufacturing, mold making, and precision engineering all rely on slant bed CNC lathes.

Conclusion

A CNC Lathe with Inclined Bed is an essential machine tool for manufacturers seeking greater precision, faster production, and long-term reliability. Its rigid construction, efficient chip evacuation, high-speed capabilities, and advanced automation features make it a preferred choice across a wide range of industries.

As manufacturing continues to demand higher quality and greater efficiency, investing in a high-performance slant bed CNC lathe can help improve productivity, reduce operating costs, and ensure consistent machining results for years to come.
