Views: 0 Author: JSC Publish Time: 2026-08-20 Origin: Site

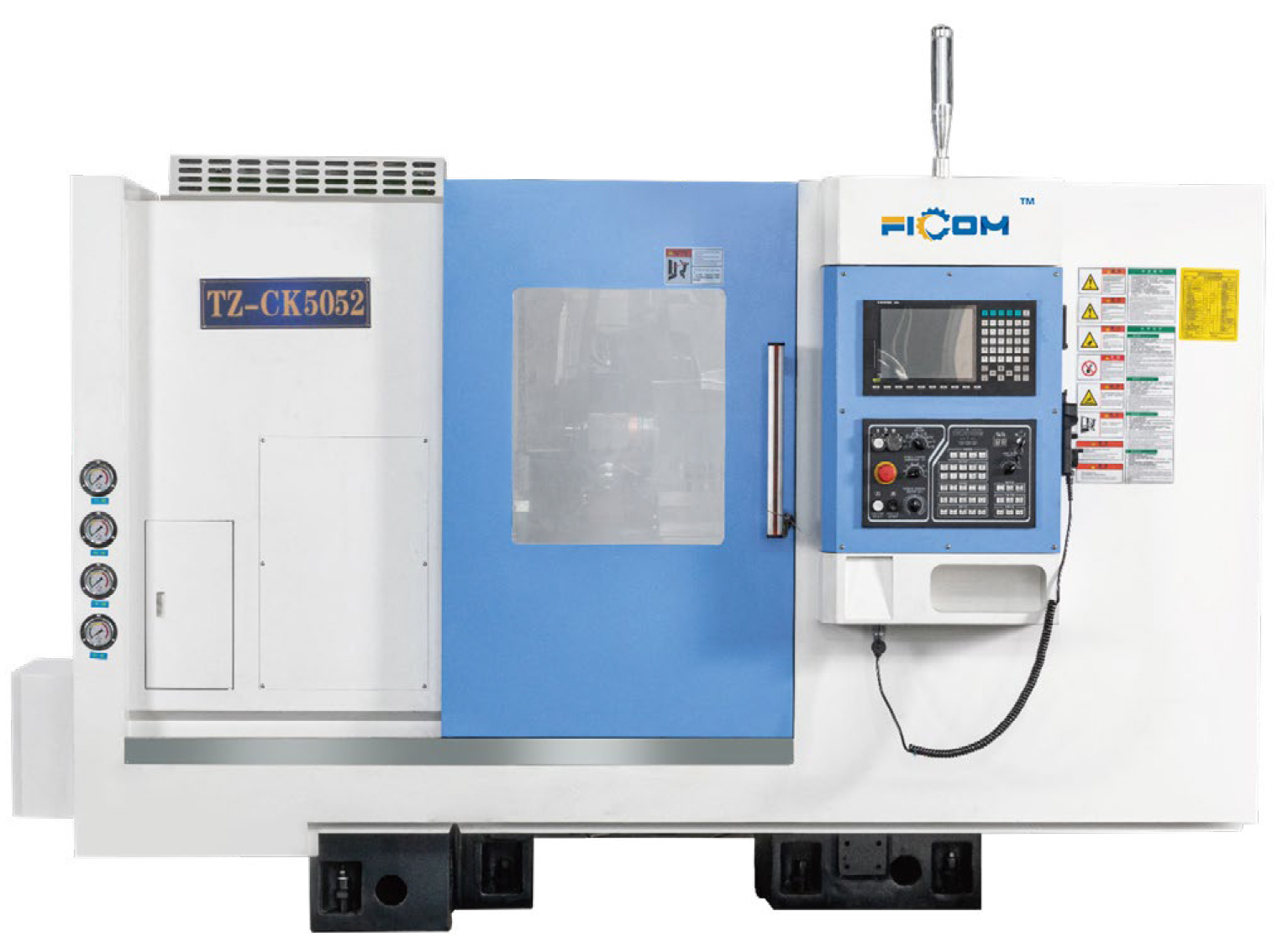

A CNC Lathe with Inclined Bed is a computer-controlled turning machine that uses a slanted machine-bed design to support high-precision machining. Unlike traditional flat-bed lathes, the inclined structure positions the guideways at an angle, providing better rigidity and improved chip evacuation.
The design is particularly effective for manufacturers producing precision components in medium- and high-volume production environments. The CNC control system manages spindle speed, feed rate, tool movement, positioning, and machining cycles with a high level of repeatability.
This combination of structural rigidity, automated control, and efficient chip removal makes the inclined-bed CNC lathe an important solution for modern precision machining.
The machine-bed structure directly affects machining stability, accuracy, tool life, and production efficiency. An inclined bed provides several advantages compared with conventional flat-bed designs.
The slant-bed structure creates a strong support system for the carriage and cutting tools. Improved rigidity helps reduce vibration during turning, especially when machining difficult materials or performing heavier cutting operations.
Better rigidity can also contribute to:
· Improved dimensional accuracy
· Better surface finish
· Reduced cutting vibration
· More stable tool performance
· Longer tool life
One of the most important advantages of an inclined bed is its ability to help chips move away from the cutting area.
During machining, chips naturally slide downward along the inclined structure. This reduces chip accumulation around the workpiece and cutting tools, helping maintain a cleaner machining environment.
Efficient chip evacuation is particularly valuable during continuous production and high-speed turning.
The inclined configuration provides favorable access between the cutting tool, workpiece, and machine enclosure. This allows the tooling system to operate efficiently within the machining area.
Depending on the machine configuration, a CNC inclined-bed lathe can support multiple tools and automated tool changing, reducing manual intervention between machining operations.
A modern slant bed CNC lathe can combine turning, drilling, boring, threading, grooving, and other machining operations within one automated process.
Reducing manual tool changes and repositioning can shorten production cycles and improve overall manufacturing efficiency.
Precision is critical when manufacturing components for automotive, aerospace, hydraulic, electronics, energy, and general engineering applications.
A CNC system controls the movement of each machining axis according to programmed instructions. This enables the machine to maintain consistent positioning and cutting parameters throughout the production process.
For precision machining, manufacturers typically focus on several factors:
· Machine structural rigidity
· Spindle accuracy
· Axis positioning accuracy
· Thermal stability
· Tool holding performance
· CNC control capability
· Workpiece clamping stability
· Cutting parameter optimization
A properly configured inclined-bed CNC lathe can maintain consistent machining performance across repeated production cycles.
A CNC Lathe with Inclined Bed can be used to manufacture a wide range of cylindrical and complex components.
Common applications include:
The machine can produce shafts, bushings, pins, sleeves, hubs, and other precision automotive components.
Hydraulic fittings, valve bodies, cylinders, connectors, and other precision components can benefit from automated CNC turning.
When high dimensional consistency and surface quality are required, inclined-bed CNC turning machines can be used for precision aerospace parts.
Manufacturers can use CNC turning for gears, shafts, flanges, rollers, couplings, and other mechanical components.
Small and medium-sized metal components requiring repeatable dimensions can be efficiently manufactured using CNC turning technology.
A CNC inclined-bed lathe can perform multiple machining operations depending on its spindle, tooling, and configuration.
Typical operations include:
Turning: Removes material from the external diameter of a workpiece.
Facing: Produces a flat surface at the end of a component.
Grooving: Creates grooves or recesses on the workpiece.
Threading: Produces internal or external threads according to programmed specifications.
Boring: Enlarges and finishes existing holes.
Drilling: Creates holes along the required machining axis.
Chamfering: Creates angled edges to improve component assembly and reduce sharp edges.
Combining multiple operations in one machine can reduce the need for secondary processing.
The main difference is the geometry of the machine structure.
Feature | Inclined Bed CNC Lathe | Flat Bed CNC Lathe |
Machine structure | Slanted bed | Horizontal bed |
Chip evacuation | Excellent | Moderate |
Rigidity | High | Application dependent |
Production efficiency | High | Moderate to high |
Automation suitability | Excellent | Good |
Precision production | Excellent | Good |
Complex turning | Highly suitable | Suitable |
High-volume production | Highly suitable | Suitable |
For manufacturers focused on automated, repeatable, and high-efficiency production, an inclined-bed configuration can provide significant advantages.
Selecting the right machine requires more than comparing price and basic specifications.
Determine the largest diameter that needs to be machined. The machine's maximum turning diameter should provide sufficient working capacity for the intended components.
The required machining length should be considered when selecting the machine. Longer components require an appropriate distance between the chuck and tailstock or other supporting equipment.
Higher spindle speeds can improve productivity when machining smaller components and suitable materials. However, spindle speed should always match the workpiece material, tooling, and cutting conditions.
Motor power determines the machine's ability to perform different cutting operations. Heavy-duty applications generally require greater spindle power.
The number and type of available tool positions affect how many machining operations can be completed automatically.
The control system influences programming, machine operation, interpolation, positioning, and automation capabilities. The appropriate controller should match the manufacturer's production requirements and operator experience.
Chuck size, hydraulic clamping, collet systems, and other workholding options should be selected according to workpiece dimensions and production requirements.
Even a high-quality CNC lathe requires proper operation and maintenance to achieve consistent results.
Manufacturers should pay attention to:
1. Correct workpiece clamping
2. Proper tool selection
3. Appropriate cutting parameters
4. Regular machine calibration
5. Effective chip removal
6. Proper lubrication
7. Spindle and guideway maintenance
8. Tool wear monitoring
9. Stable workshop temperature
10. Regular inspection of finished components
These factors work together to maintain dimensional consistency and reduce production defects.
Automation is becoming increasingly important in modern machining operations. An inclined-bed CNC lathe can be integrated with automatic bar feeders, robotic loading systems, chip conveyors, tool monitoring systems, and other auxiliary equipment.
An automated production cell can reduce manual handling while allowing machines to operate for longer periods with limited operator intervention.
For manufacturers producing large quantities of similar components, automation can significantly improve productivity and production consistency.
The versatility of inclined-bed CNC turning makes it suitable for many manufacturing sectors, including:
· Automotive manufacturing
· Aerospace
· Hydraulic equipment
· Pneumatic equipment
· Agricultural machinery
· Construction equipment
· Energy equipment
· General machinery
· Electronics
· Medical equipment
· Precision component manufacturing
The exact machine configuration should be selected according to the material, component geometry, production volume, and required tolerance.
The main advantages include high structural rigidity, efficient chip evacuation, improved machining stability, and suitability for automated production.
Yes. Its rigid structure, CNC automation, efficient chip removal, and multi-tool capability make it well suited for medium- and high-volume production.
Depending on the machine configuration and tooling, it can machine materials such as carbon steel, stainless steel, aluminum, copper alloys, cast iron, and various engineering materials.
Yes. The angled bed helps chips move away from the machining zone through gravity and the machine's chip-removal system.
Yes. CNC turning machines can perform internal and external threading when equipped with appropriate tooling and programmed cutting cycles.
Important factors include maximum turning diameter, turning length, spindle speed, spindle power, chuck size, tool capacity, CNC control system, machining accuracy, automation requirements, and after-sales support.
A CNC Lathe with Inclined Bed combines structural rigidity, precision CNC control, efficient chip evacuation, and production automation in a single machining platform. Its slant-bed design makes it particularly suitable for manufacturers seeking stable turning performance and consistent component quality.
For precision machining applications, the right machine configuration should be selected according to workpiece dimensions, material, tolerances, production volume, tooling requirements, and automation needs.
Choosing the appropriate inclined bed CNC lathe can help manufacturers improve machining consistency, reduce production interruptions, increase productivity, and build a more efficient modern machining process.
