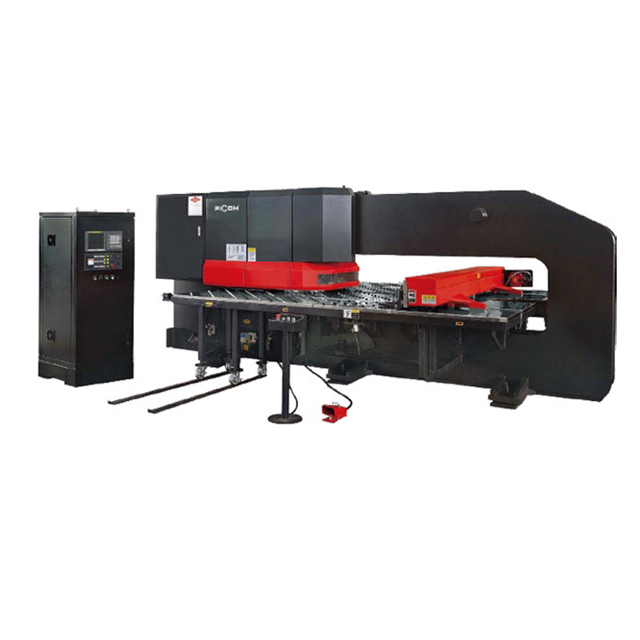

CNC Hydraulic Turret Punch Machine | Precision Sheet Metal Fabrication

The CNC Hydraulic Turret Punch Machine is a high-performance sheet metal processing solution engineered for precision and productivity. Its hydraulic-driven turret system allows rapid tool changes and consistent punching accuracy, while the CNC interface enables fully automated operation. This machine is capable of handling diverse sheet metal thicknesses, from thin aluminum sheets to heavy-duty stainless steel, making it ideal for industrial applications such as automotive panels, electrical enclosures, and structural components.

Key Features and Technical Specifications

Hydraulic Turret System: Ensures smooth, consistent punching with minimal wear and reduced vibration.

CNC Control Panel: Programmable for complex punching patterns, reducing manual intervention and improving throughput.

Multi-Tool Capability: Supports a variety of punch shapes and sizes, including round, square, and custom profiles.

High-Speed Operation: Optimized hydraulic pressure and feed speed allow faster production without sacrificing accuracy.

Material Versatility: Handles mild steel, stainless steel, aluminum, and other conductive or non-ferrous metals.

Precision and Repeatability: Maintains tolerance levels within ±0.02 mm, critical for industrial-grade fabrication.

Applications

The CNC Hydraulic Turret Punch Machine is used in industries requiring high-precision sheet metal fabrication, including:

Automotive Manufacturing: Body panels, brackets, and chassis components.

Electronics: Enclosures, frames, and sheet metal housing for electrical devices.

Construction & Architecture: Metal cladding, HVAC panels, and structural components.

Appliances & Equipment: Panels and frames for industrial and consumer products.

Advantages of CNC Hydraulic Turret Punching

High Efficiency: Reduces cycle times with automated turret tool rotation and hydraulic power.

Accuracy: CNC-controlled punching patterns ensure minimal deviation across large production runs.

Durability: Hydraulic drive system ensures long-term reliability, with corrosion-resistant components.

Flexibility: Quick-change turret tools allow customization for specialized punching tasks.

User-Friendly Operation: CNC interface simplifies programming for operators of varying skill levels.

Maintenance and Safety Tips

Routine Lubrication: Maintain hydraulic systems and turret bearings for optimal performance.

Tool Inspection: Regularly check punch and die condition to prevent deformation.

Hydraulic Fluid Monitoring: Replace or top-up fluid as recommended by the manufacturer.

Operator Training: Ensure safety protocols and CNC programming procedures are strictly followed.

Recommended Accessories

Extra punch and die sets for specific sheet thicknesses.

Sheet material support tables for heavy metal sheets.

Protective enclosures and sensors for high-speed operations.

Call-to-Action

Explore the CNC Hydraulic Turret Punch Machine to increase productivity, ensure precise sheet metal fabrication, and reduce operational downtime. Contact our sales team for custom configurations tailored to your industrial application.

FAQ (People Also Ask)

Q1: What is the maximum sheet thickness a CNC hydraulic turret punch machine can handle?
A1: Most machines can handle sheets from 0.5 mm up to 6 mm, depending on the material and punch size. Heavy-duty models can process thicker steel sheets efficiently.

Q2: How does the turret system improve production speed?
A2: The multi-tool turret allows rapid tool rotation and automated punching sequences, minimizing downtime caused by manual tool changes.

Q3: Can it perform complex geometric patterns?
A3: Yes, the CNC control system supports highly intricate patterns, including round, square, oval, and custom-shaped punches, maintaining high precision.

Q4: What maintenance is critical for hydraulic turret machines?
A4: Regular lubrication, hydraulic fluid checks, and tool inspection are essential to maintain accuracy and extend machine lifespan.

Q5: Which industries benefit the most from CNC hydraulic turret punching?
A5: Automotive, electronics, construction, appliances, and industrial equipment manufacturing benefit from its precision, speed, and versatility.

Looking for a reliable CNC Hydraulic Turret Punch Machine? Contact us today to explore our extensive range of Precision Lathe Reliable Pergormance and find the perfect solution for your production needs.
