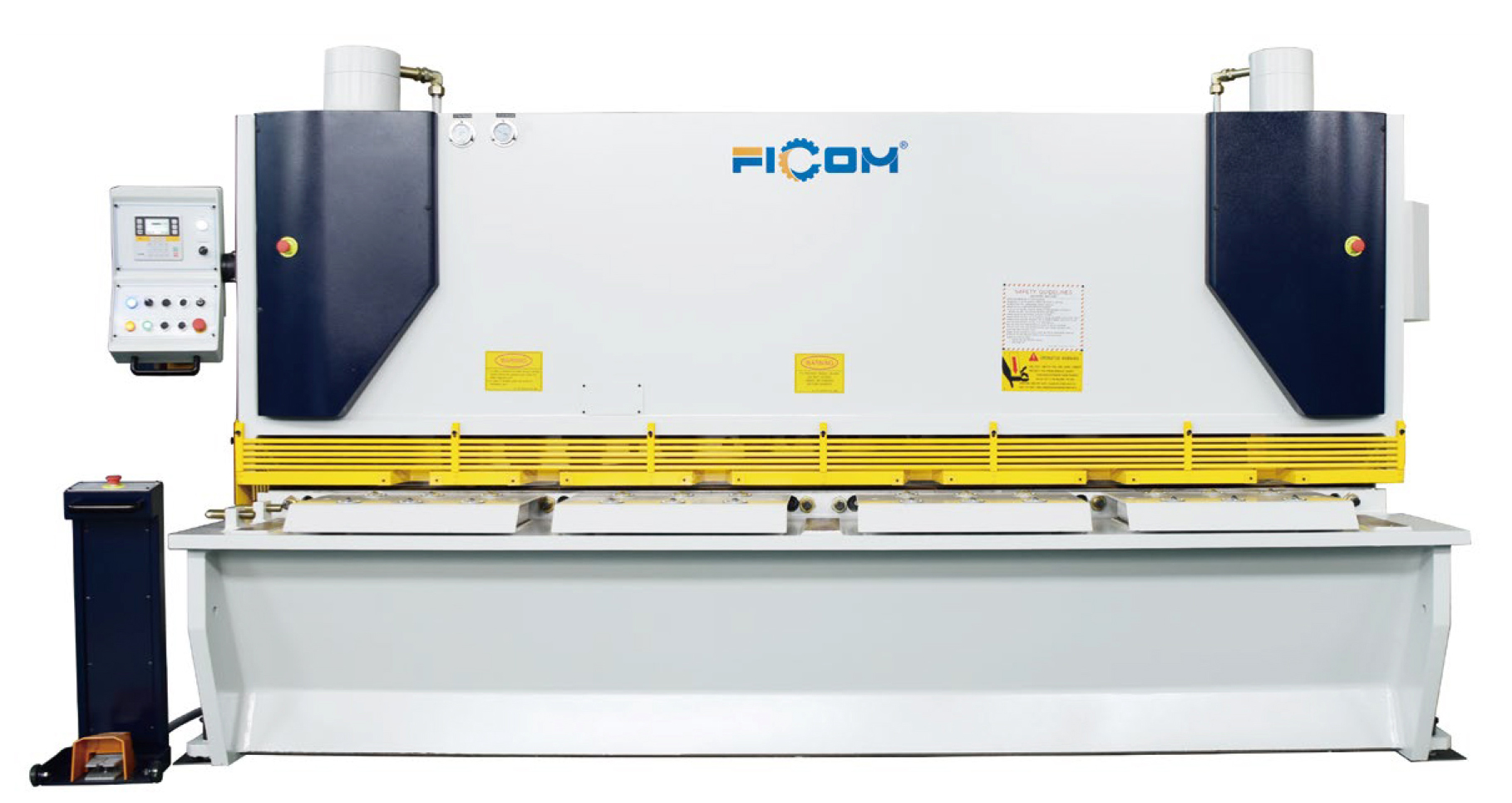

CNC Hydraulic Guillotine Shear with Precision Backgauge System

CNC Hydraulic Guillotine Shears are high-performance metal cutting machines widely used in industrial fabrication shops. They provide consistent and accurate shearing of steel, stainless steel, and aluminum plates using hydraulic force and programmable cutting parameters. A standout feature in advanced models is the precision backgauge system, which ensures exact positioning of the metal sheet before each cut.

Technical Overview of the Backgauge Mechanism

The precision backgauge system in a CNC hydraulic guillotine shear is responsible for automatically adjusting the material position based on programmed cutting lengths. Key components include:

Ball Screw Drives: For ultra-smooth and backlash-free movement.

Servo Motor Control: Ensures millimeter-level repeatability.

Linear Guides: Reduce friction and enhance long-term positioning stability.

Advanced models also include automatic retracting during cutting to prevent backgauge collision, ideal for handling large or thin sheets.

Material Accuracy and Repeatability Benefits

One of the primary goals in sheet metal fabrication is cutting accuracy, and the CNC hydraulic guillotine shear excels in this regard due to:

±0.05 mm repeatable backgauge positioning

Automated cut length compensation based on material thickness

CNC memory storage for batch programming

These benefits reduce operator error, ensure tight tolerances, and enable high-volume precision production.

Hydraulic Drive System Integration

The shear's hydraulic system features:

Dual-cylinder synchronized control for consistent blade force

Adjustable blade clearance settings based on material type and thickness

Overload protection circuits for operator and equipment safety

This integration allows the machine to handle various material grades and thicknesses without compromising cut quality.

Use Cases in High-Precision Industries

Industries that require high-accuracy sheet metal fabrication rely on CNC hydraulic guillotine shears with backgauge systems. Typical applications include:

Electrical cabinet manufacturing

HVAC ducting and chassis fabrication

Automotive body panels and aerospace subcomponents

Precision enclosures and stainless steel panel work

The combination of fast setup, programmable control, and precision cutting makes it a vital machine for modern metalworking.

User Interface and Automation Enhancements

Modern CNC guillotine shears come with a touchscreen interface and PLC/CNC controllers, which enable:

Custom cut list programming

Batch memory storage

Auto material positioning

Integration with CAD/CAM files

Remote diagnostics and Ethernet connection allow for smart factory integration.

Maintenance and Longevity Features

The machine’s long service life is ensured through:

Self-lubricating guideways

Anti-corrosive coated hydraulic components

Wear-resistant blade material

Dust-proof electrical enclosures

Routine diagnostics on the CNC interface also prompt scheduled maintenance alerts.

FAQ Schema Section

What is the function of a precision backgauge in a CNC guillotine shear?

The precision backgauge automatically positions the metal sheet to ensure each cut is made at the exact programmed length, improving accuracy and repeatability.

How does a programmable backgauge improve production efficiency?

It reduces manual adjustment time, supports batch processing, and minimizes errors by automatically repositioning between cuts.

Can a CNC hydraulic guillotine shear handle large-format sheets?

Yes, especially models with motorized or retractable backgauges and extended worktables, which are designed for oversized sheet materials.

Does the machine support automation integration?

Yes, most advanced CNC shears include PLC/CNC controllers that support Ethernet and USB connections, enabling integration into smart factories or automated lines.
