CNC Gantry Machining Center: A Practical Solution for Large and Heavy Workpieces

Manufacturers working with large and heavy metal components often face challenges that conventional machining centers cannot easily handle. Large workpieces require sufficient working space, strong machine rigidity, stable cutting performance, and reliable long-term accuracy.

A CNC Gantry Machining Center is designed to address these requirements by providing a large machining envelope, rigid structural support, and efficient multi-axis machining capabilities.

For industries such as heavy machinery, automotive, energy, mold manufacturing, construction equipment, and general metalworking, a gantry machining center can provide a practical solution for machining large components while improving productivity and process stability.

What Is a CNC Gantry Machining Center?

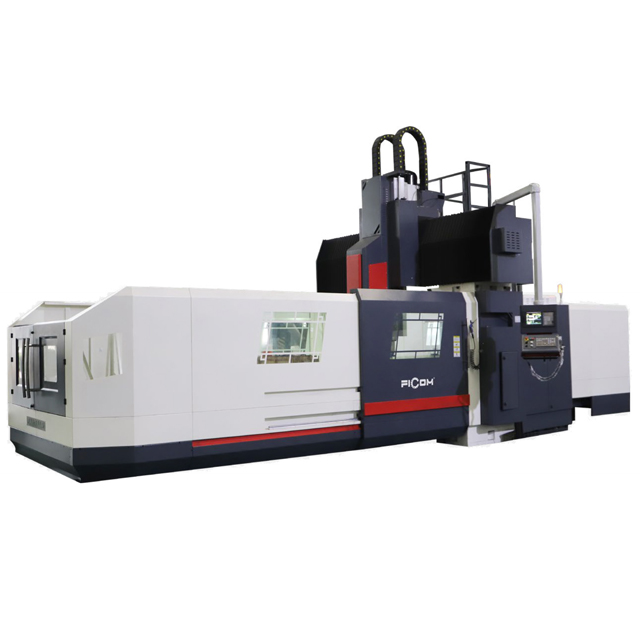

A CNC gantry machining center is a computer-controlled machine tool designed for machining large and heavy workpieces.

Unlike conventional vertical machining centers, a gantry machining center typically uses a rigid gantry structure that spans the worktable. The machining head moves along the gantry system, allowing the machine to cover a large working area while maintaining structural stability.

Depending on the machine configuration, a CNC gantry machining center can perform operations such as:

· Milling

· Drilling

· Tapping

· Reaming

· Boring

· Face milling

· Contouring

· Heavy-duty material removal

This versatility allows manufacturers to complete multiple machining operations on a single machine, reducing the need for repeated workpiece transfers.

Why Choose a CNC Gantry Machining Center?

Large Working Capacity

One of the biggest advantages of a CNC gantry machining center is its ability to accommodate large workpieces.

Manufacturers producing machine bases, structural components, molds, frames, construction equipment parts, and other oversized components can benefit from a larger working envelope.

A suitable machine configuration can help reduce the need to divide large components into multiple machining processes.

High Structural Rigidity

Large workpieces and heavy cutting operations require a rigid machine structure.

The gantry design provides strong structural support for the machining head and worktable. High rigidity helps reduce vibration during cutting and supports more stable machining performance.

This is particularly important when machining cast iron, steel, and other difficult or heavy materials.

Stable Machining Accuracy

Accuracy is not only determined by the CNC control system. Machine structure, guideways, spindle performance, thermal stability, and manufacturing quality all influence final machining results.

A rigid gantry machining center can help maintain stable tool positioning and reduce unwanted movement during machining.

For manufacturers producing precision holes, mounting surfaces, slots, pockets, and complex profiles, consistent machine performance can help reduce rework and improve part quality.

Efficient Heavy-Duty Machining

Large components often require substantial material removal.

A CNC gantry machining center can be configured with powerful spindles and suitable cutting parameters for roughing and finishing operations.

Instead of relying on multiple smaller machines, manufacturers can use one large machining platform for major operations, potentially reducing setup time and material handling.

CNC Gantry Machining Center for Different Industries

CNC gantry machining centers are suitable for a wide range of manufacturing applications.

Heavy Machinery

Large machine frames, structural parts, bases, and other heavy components often require extensive milling and drilling.

The large working area and rigid structure of a gantry machining center make it suitable for these applications.

Mold and Die Manufacturing

Large molds and dies require accurate machining across relatively large surfaces.

A CNC gantry machining center can provide the working envelope and positioning capability required for large mold components while supporting multiple machining operations.

Construction Equipment

Manufacturers of excavators, loaders, cranes, and other construction equipment often produce large structural components.

Gantry machining centers can help process these components efficiently while reducing repeated setup and handling.

Energy Equipment

Energy-related components can be large, heavy, and difficult to handle.

A suitable CNC gantry machining center can provide the machining capacity required for large bases, housings, structural components, and other heavy-duty parts.

How to Improve CNC Gantry Machining Efficiency

Selecting the machine is only one part of improving productivity. Manufacturers should also consider the complete machining process.

Optimize workholding

Stable workholding is essential when machining large and heavy components. Proper fixture design can reduce movement and improve machining consistency.

Select appropriate cutting tools

Tool selection should match the material, machining operation, spindle capability, and required surface finish.

Reduce unnecessary setups

Machining multiple features in one setup can reduce positioning errors, handling time, and non-cutting production time.

Use appropriate CNC programming

Optimized toolpaths can improve cutting efficiency, reduce tool wear, and shorten machining cycles.

Maintain the machine regularly

Regular inspection of guideways, lubrication systems, spindle components, tooling systems, and other critical parts helps maintain consistent machine performance.

CNC Gantry Machining Center vs. Conventional Vertical Machining Center

The right machine depends on the workpiece size, material, machining requirements, and production volume.

For smaller components, a conventional vertical machining center may provide sufficient capacity with a more compact footprint.

For oversized or heavy components, however, a CNC gantry machining center can provide advantages in terms of working area, structural support, and machining accessibility.

The key is to match the machine configuration with the actual production requirements rather than selecting equipment based only on spindle power or maximum travel.

What to Consider When Buying a CNC Gantry Machining Center

Before purchasing a CNC gantry machining center, manufacturers should evaluate several important specifications:

· Worktable dimensions

· Maximum workpiece weight

· X, Y, and Z-axis travel

· Spindle speed

· Spindle power and torque

· Machine rigidity

· Positioning accuracy

· Repeatability

· Tool capacity

· CNC control system

· Chip removal system

· Cooling system

· Automatic tool changing capability

· Machine footprint

· After-sales technical support

The machine should also be evaluated based on the actual materials and components that will be processed.

For example, a manufacturer focused on heavy steel components may prioritize rigidity, spindle torque, and load capacity, while a mold manufacturer may place greater emphasis on accuracy, surface finish, spindle speed, and CNC control capabilities.

CNC Gantry Machining Center and Production Cost

The purchase price is only one part of the total cost of a machining center.

Manufacturers should also consider setup time, labor requirements, tooling consumption, energy consumption, maintenance, machine utilization, scrap, and downtime.

A properly configured CNC gantry machining center can help improve production efficiency by combining multiple operations, reducing workpiece handling, and supporting stable machining.

Over the long term, these factors can have a significant impact on the total cost of ownership.

Choosing the Right CNC Gantry Machining Center

There is no single configuration that fits every manufacturer.

The ideal CNC gantry machining center should be selected according to the size and weight of the workpieces, required machining processes, material types, production volume, accuracy requirements, and available workshop space.

For manufacturers processing large metal components, choosing a machine with the right combination of working capacity, rigidity, spindle performance, accuracy, automation, and reliability can provide a stronger foundation for long-term production efficiency.

A well-designed CNC gantry machining center is more than a large machining tool. It is a production platform that can help manufacturers handle demanding large-part machining with greater stability, efficiency, and consistency.
