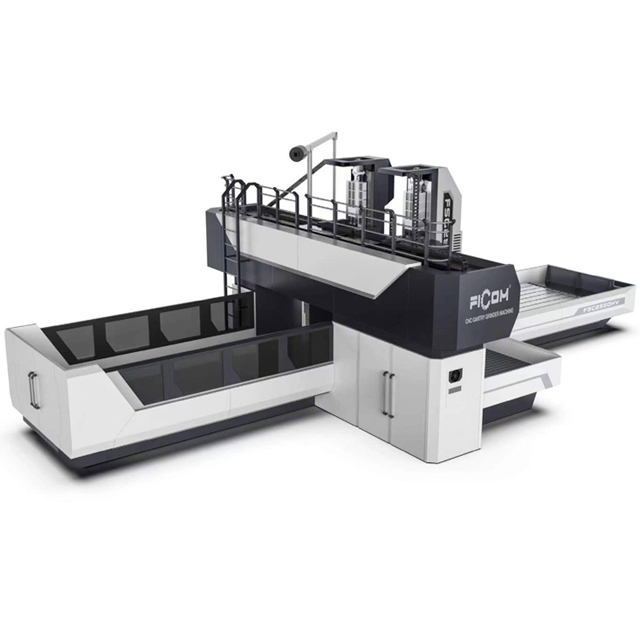

CNC Gantry Grinder Machine: Precision Grinding for Large Workpieces

CNC Gantry Grinder Machines are essential for precision grinding of large, heavy-duty workpieces. These machines offer high accuracy, efficiency, and automated capabilities for industries requiring top-tier surface finishes and dimensional precision. With advanced CNC controls, gantry grinders ensure consistent results in aerospace, automotive, and heavy machinery applications.

What is a CNC Gantry Grinder Machine?

A CNC Gantry Grinder Machine is a high-precision grinding system designed for processing large and heavy components. Unlike conventional surface grinders, a gantry-style grinder features a rigid gantry structure, allowing it to accommodate oversized workpieces while maintaining extreme accuracy. These machines utilize computer numerical control (CNC) technology for automated precision grinding.

Key Features of CNC Gantry Grinder Machines

1. Large Work Area

Gantry-style construction allows for grinding large components with ease.

Accommodates workpieces with significant length, width, and height.

2. High-Precision Grinding Head

Equipped with servo-driven or hydrostatic guideways for ultra-smooth movement.

Utilizes high-rigidity spindle systems for minimal vibration and maximum accuracy.

3. Advanced CNC Controls

Fully automated grinding operations for repeatable precision.

Multi-axis movement enhances flexibility for complex grinding profiles.

4. Superior Surface Finish

Achieves sub-micron level surface roughness, making it ideal for critical applications.

Reduces manual finishing processes and improves overall productivity.

5. Heavy-Duty Frame for Stability

Constructed with cast iron or steel to withstand high grinding forces.

Provides long-term durability with minimal machine deformation.

6. Automation and Integration

Supports automated tool changing (ATC) and in-line measurement systems.

Can integrate with robotic loading/unloading systems for higher efficiency.

Applications of CNC Gantry Grinder Machines

CNC Gantry Grinder Machines are widely used in industries requiring precision surface grinding of large components, such as:

Aerospace – Precision grinding of turbine blades, aircraft structural components.

Automotive – Surface finishing of engine blocks, transmission components.

Heavy Machinery – Manufacturing large machine beds, industrial rollers.

Energy Sector – Processing wind turbine components, nuclear reactor parts.

Advantages of Using a CNC Gantry Grinder Machine

1. Increased Productivity

High-speed grinding combined with automated CNC programming reduces cycle times.

2. Consistent Accuracy

Eliminates human error with precise multi-axis control.

3. Versatile Machining

Capable of flat grinding, profile grinding, and cylindrical grinding in one setup.

4. Cost Efficiency

Reduces the need for multiple machining processes, lowering overall production costs.

People Also Ask (FAQ)

1. What is the difference between a CNC gantry grinder and a standard surface grinder?

A CNC gantry grinder is designed for large-scale workpieces, offering higher rigidity, stability, and automation compared to a standard surface grinder, which is typically used for smaller parts.

2. How does a CNC gantry grinder ensure precision?

It utilizes servo motors, hydrostatic guideways, and CNC automation, minimizing manual errors and achieving sub-micron accuracy.

3. What types of materials can be processed with a CNC gantry grinder?

These machines can grind hardened steel, titanium, aluminum, ceramics, and composite materials used in aerospace and automotive industries.

4. Can a CNC gantry grinder handle heavy-duty applications?

Yes, its rigid frame, high-power spindle, and automated controls make it ideal for heavy-duty grinding in large-scale manufacturing.

5. What maintenance is required for a CNC gantry grinder machine?

Regular lubrication, coolant filtration, and spindle alignment checks are necessary to maintain optimal performance and longevity.

CNC Gantry Grinder Machines provide unmatched precision, automation, and efficiency for grinding large workpieces. Their advanced technology ensures superior surface finishes and high production output, making them essential in various high-precision industries. Investing in a CNC gantry grinder enhances machining capabilities and improves operational efficiency, delivering long-term value to manufacturers.
