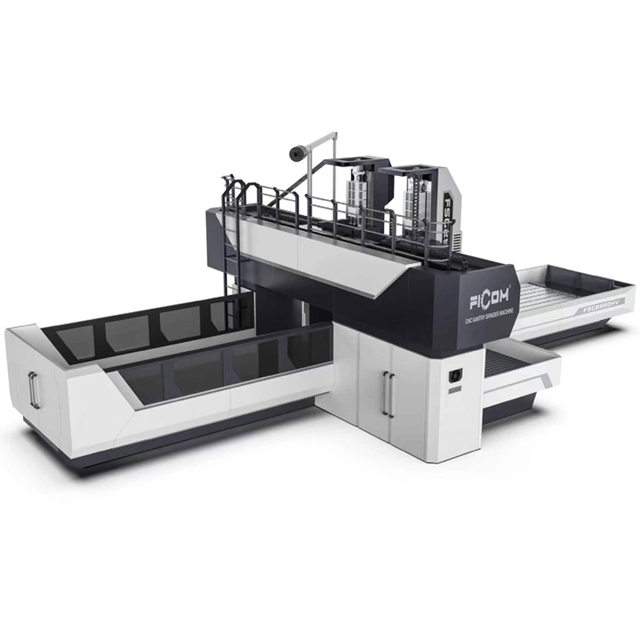

A CNC Gantry Grinder Machine is a precision grinding system designed for machining large, heavy, and wide workpieces. Unlike conventional surface grinders, the gantry structure provides strong support for the grinding head and worktable, making the machine suitable for demanding industrial applications.
The machine uses a CNC control system to manage grinding movements, positioning, feed rates, and machining cycles. This allows manufacturers to achieve consistent grinding results while reducing manual intervention.
CNC gantry grinders are commonly used when large components require precise flatness, parallelism, dimensional accuracy, and high-quality surface finishes.
The working principle combines a rigid gantry structure with a precision grinding system.
The workpiece is securely positioned on the machine table. The grinding wheel rotates at high speed while the CNC system controls the movement of the grinding head and table.
Depending on the machine configuration, the grinding head can move along multiple axes to cover the required machining area.
A typical grinding process includes:
1. Loading and positioning the workpiece.
2. Setting the machining parameters in the CNC controller.
3. Aligning the grinding head with the workpiece.
4. Performing rough grinding to remove excess material.
5. Carrying out precision grinding passes.
6. Checking the final dimensions and surface quality.
This controlled process provides repeatable grinding performance for both individual components and production batches.
Precision grinding is one of the main advantages of CNC gantry grinders. CNC-controlled movement helps maintain consistent feed rates and positioning accuracy throughout the machining process.
This is particularly important for components requiring tight dimensional tolerances and accurate flat surfaces.
The gantry configuration provides a large machining area and strong structural support. It is well suited for large molds, machine bases, guide rails, steel components, and other oversized parts.
Grinding requires excellent structural stability because vibration can directly affect surface quality.
A rigid gantry structure helps minimize unwanted movement during machining, supporting stable grinding performance and improved surface finish.
The controlled grinding process allows manufacturers to maintain uniform surface quality across large workpieces.
This is especially valuable when a component requires a smooth and consistent finished surface over a large machining area.
CNC automation reduces the amount of manual operation required during grinding. Once the machining parameters and program are established, repetitive grinding operations can be performed efficiently.
This can help reduce setup variation and improve production consistency.
The main difference is the machine's structure, machining capacity, and level of automation.
Feature | CNC Gantry Grinder | Conventional Surface Grinder |
Workpiece size | Large and heavy components | Small to medium components |
Machine structure | Gantry type | Conventional column/table structure |
CNC control | Available | Often limited or manual |
Automation | High | Lower |
Grinding consistency | High | Depends more on operator |
Large-area grinding | Excellent | More limited |
Production applications | Suitable for batch production | Suitable for general grinding |
For manufacturers processing large components or requiring repeatable precision, a CNC gantry grinding machine can provide significant advantages.
CNC gantry grinders are widely used across industries where large components require precision grinding.
Typical applications include:
· Machine tool components
· Large molds and dies
· Automotive components
· Aerospace components
· Hydraulic equipment parts
· Industrial machinery components
· Guide rails
· Machine bases
· Steel plates
· Engineering equipment
· Precision mechanical components
For mold and die manufacturing, grinding accuracy can directly affect the final dimensional quality of the finished product.
In machine tool manufacturing, precision grinding is commonly required for guideways, bases, and other critical components.
Choosing the right machine requires more than simply comparing grinding wheel size or motor power.
The table dimensions should match the size and weight of the workpieces being processed.
For large components, sufficient table capacity is essential for safe positioning and stable machining.
The grinding range determines how much of the workpiece can be processed within the machine's working area.
Manufacturers should consider both current production requirements and potential future workpiece sizes.
Grinding wheel diameter, width, spindle speed, and grinding motor power can influence material removal rate and surface finish.
The correct configuration depends on the material and grinding application.
A reliable CNC system allows operators to control grinding parameters and machining cycles accurately.
For repetitive production, programmable grinding cycles can improve consistency and reduce operator workload.
Structural rigidity is critical for large-scale precision grinding.
A stable machine structure helps reduce vibration and deformation during grinding, particularly when processing heavy workpieces.
Manufacturers should evaluate positioning accuracy, grinding accuracy, repeatability, flatness, and achievable surface roughness based on their application requirements.
Large components often present challenges that cannot be efficiently handled by standard grinding machines.
A large workpiece may require multiple setups if the machine's working area is insufficient. Each additional setup can introduce alignment errors and increase production time.
A properly configured CNC Gantry Grinder Machine can process a larger surface within a single setup, reducing repositioning requirements and helping maintain dimensional consistency.
This makes gantry grinding particularly valuable for manufacturers producing large machine components, molds, structural parts, and precision industrial equipment.
Several factors can influence CNC grinding performance.
Use the correct grinding parameters: Grinding speed, feed rate, and depth of cut should be selected according to the workpiece material and grinding wheel.
Ensure proper workpiece clamping: Large workpieces must be securely supported to minimize movement and deformation.
Maintain the grinding wheel: Proper wheel dressing helps maintain cutting performance and surface quality.
Control coolant effectively: Appropriate coolant application can help manage heat generation and improve grinding stability.
Use CNC automation: Programmable grinding cycles can reduce repetitive manual operations and improve process consistency.
Regular maintenance is essential for maintaining grinding accuracy over the machine's service life.
Key maintenance tasks include:
· Inspecting and lubricating guideways
· Checking grinding spindle condition
· Maintaining coolant systems
· Inspecting hydraulic and lubrication systems
· Cleaning the machine table
· Checking CNC system alarms
· Monitoring abnormal vibration or noise
· Inspecting grinding wheel condition
· Verifying machine accuracy periodically
Preventive maintenance can help identify potential problems before they lead to unexpected downtime or reduced grinding accuracy.
As manufacturers increasingly demand higher precision and greater production efficiency, grinding has become an important finishing process for critical components.
A CNC gantry grinder combines large machining capacity, CNC automation, structural rigidity, and precision grinding technology.
For manufacturers working with large and demanding components, the right grinding machine can help reduce manual operations, improve repeatability, minimize setup errors, and achieve more consistent finished surfaces.
CNC gantry grinders can be configured for grinding various metals, including steel, hardened steel, cast iron, and other engineering materials. The appropriate grinding wheel and machining parameters depend on the material.
A gantry grinder generally provides a larger working area and stronger structural support for large workpieces. A conventional surface grinder is typically better suited to smaller components.
Yes. Its large working capacity and precision grinding capability make it suitable for many large mold and die components that require accurate flat surfaces and consistent finishing.
CNC control allows grinding movements and machining parameters to be programmed and repeated accurately. This can improve consistency and reduce dependence on manual operation.
Consider the maximum workpiece dimensions and weight, table size, grinding range, spindle specifications, required accuracy, CNC system, automation level, and production volume.
A CNC Gantry Grinder Machine provides a practical solution for precision grinding of large and heavy industrial components. Its rigid gantry structure, CNC-controlled operation, large working capacity, and consistent grinding performance make it suitable for demanding manufacturing environments.
For applications involving large molds, machine bases, guideways, steel components, and precision mechanical parts, selecting the right CNC gantry grinding machine can improve surface quality, dimensional consistency, and overall production efficiency.
If you are looking for a grinding solution for large or complex workpieces, evaluating the machine's working capacity, accuracy, rigidity, spindle configuration, and CNC control system is an important first step.
