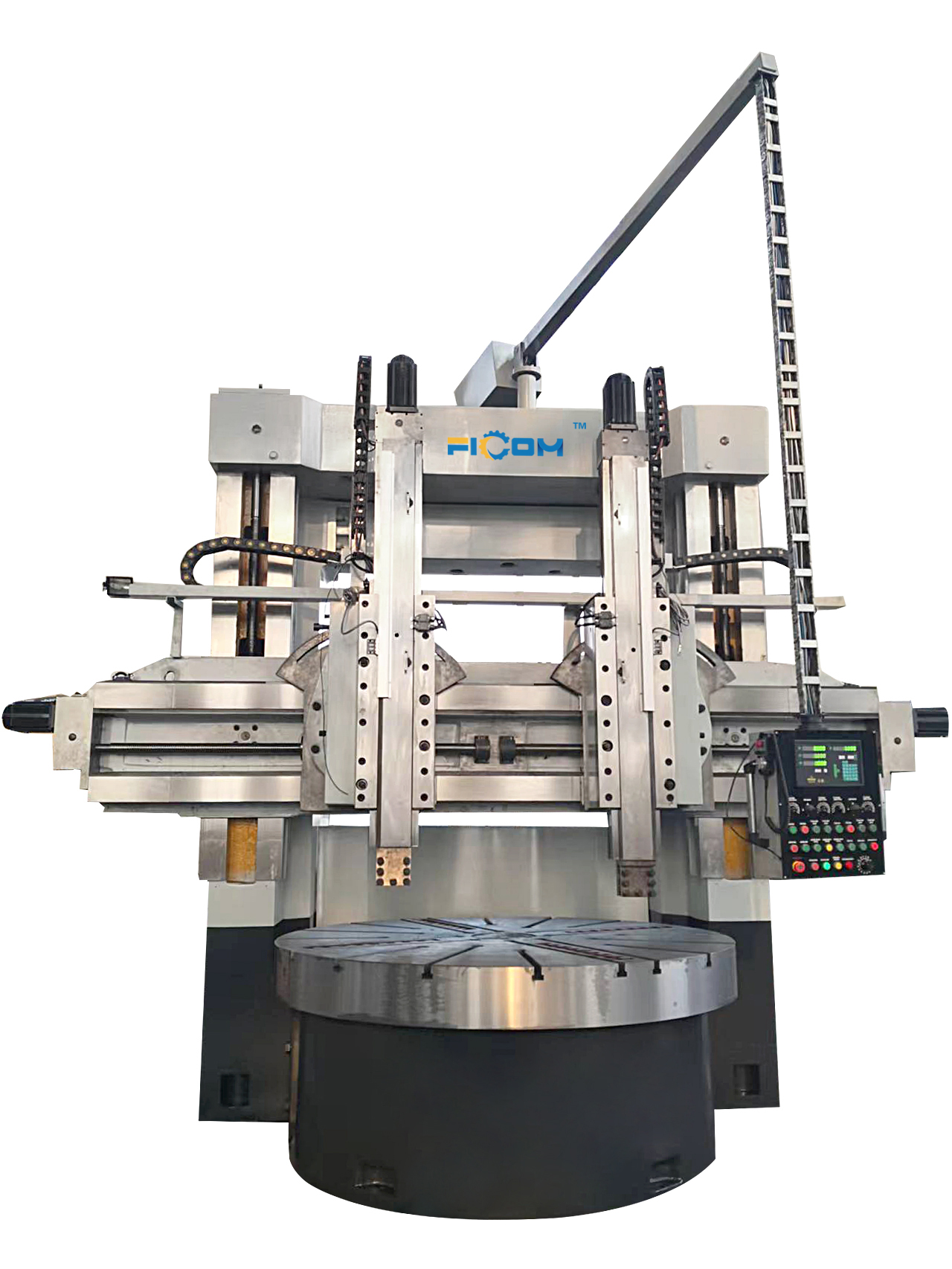

CNC Double Column Vertical Turning Lathe for Heavy-Duty Precision Manufacturing

Modern industries continue to increase the size and complexity of their products. Wind turbine hubs, bearing rings, hydraulic cylinders, large flanges, gear blanks, railway wheels, and aerospace structural components all require machining equipment capable of handling significant weight while maintaining exceptional accuracy.

A CNC Double Column Vertical Turning Lathe is specifically engineered to meet these challenges. Unlike conventional horizontal lathes, the vertical design supports the workpiece using gravity, greatly reducing deformation and improving machining stability. Combined with a rigid double-column construction, this machine delivers outstanding performance for heavy-duty turning operations.

Why Choose a CNC Double Column Vertical Turning Lathe?

Manufacturers machining large-diameter components require more than just power. They need rigidity, precision, reliability, and long-term machining consistency.

Key advantages include:

· Exceptional structural rigidity

· High load-bearing capacity

· Excellent vibration resistance

· Stable machining during long cutting cycles

· Superior dimensional accuracy

· Reduced workpiece deformation

· Improved surface finish

· Longer machine service life

The double-column structure distributes cutting forces evenly, allowing aggressive cutting parameters while maintaining excellent precision.

Designed for Large and Heavy Workpieces

Unlike horizontal lathes, vertical turning machines naturally support heavy workpieces on the rotary table.

This design offers several benefits:

· Easier loading of oversized components

· Lower center of gravity

· Reduced spindle stress

· Better rotational stability

· Improved safety during machining

The result is higher machining efficiency for components weighing hundreds or even thousands of kilograms.

High Rigidity for Demanding Cutting Applications

Heavy machining requires exceptional machine stiffness.

A CNC Double Column Vertical Turning Lathe typically incorporates:

· Heavy-duty cast iron machine base

· Rigid double-column frame

· Large cross rail

· Precision guideways

· High-torque spindle system

· Reinforced transmission structure

These features minimize vibration during heavy roughing while maintaining excellent accuracy during finishing operations.

Advanced CNC Control Improves Productivity

Modern CNC systems simplify complex machining operations through intelligent programming and automation.

Common capabilities include:

· Automatic tool compensation

· Multiple machining cycles

· Constant surface speed control

· Tool life management

· Automatic positioning

· Multi-axis interpolation

· Real-time diagnostics

· Production data monitoring

These functions reduce operator workload while increasing productivity and machining consistency.

Wide Range of Machining Operations

A CNC Double Column Vertical Turning Lathe supports multiple machining processes within a single setup.

Typical operations include:

· External turning

· Internal turning

· Facing

· Grooving

· Boring

· Thread cutting

· Taper turning

· Profiling

· Drilling (optional)

· Milling (optional)

· Grinding integration (optional)

Completing multiple operations on one machine reduces setup time and improves overall manufacturing efficiency.

Industries That Benefit from CNC Double Column Vertical Turning Lathes

Heavy industries rely on these machines to manufacture critical components with tight tolerances.

Common applications include:

Wind Energy

· Main shafts

· Bearing housings

· Generator housings

· Hub components

Oil & Gas

· Valve bodies

· Pressure vessel flanges

· Pipe connectors

· Pump casings

Mining Equipment

· Crusher components

· Gear rings

· Large bearings

· Transmission parts

Railway Manufacturing

· Railway wheels

· Brake discs

· Wheel hubs

· Axle components

Shipbuilding

· Propeller hubs

· Marine bearings

· Engine components

· Large couplings

Aerospace

· Engine casings

· Structural rings

· Titanium alloy components

· High-strength alloy parts

Improve Accuracy While Reducing Machining Costs

Large workpieces are expensive.

Even a small machining error can lead to significant material waste and production delays.

A CNC Double Column Vertical Turning Lathe helps manufacturers reduce costs by:

· Lowering scrap rates

· Improving first-pass accuracy

· Reducing secondary machining

· Increasing tool life

· Shortening production cycles

· Improving repeatability

· Lowering maintenance costs

These advantages contribute directly to higher manufacturing profitability.

Optional Configurations for Greater Flexibility

Manufacturers often require customized solutions based on production needs.

Common optional configurations include:

· Live milling spindle

· Automatic tool changer (ATC)

· C-axis positioning

· Ram-type tool head

· Side tool head

· Digital measuring probes

· Automatic lubrication system

· Chip conveyor

· Coolant filtration system

· Full machine enclosure

These options allow a single machine to perform more complex machining tasks while improving automation.

Why Rigidity Matters in Large-Part Machining

When machining oversized components, cutting forces increase dramatically.

Insufficient machine rigidity can result in:

· Chatter vibration

· Poor surface finish

· Tool wear

· Dimensional errors

· Reduced productivity

The double-column structure provides balanced support across the entire machining area, enabling stable heavy cutting and consistent high-quality results.

Maintenance Tips for Long-Term Performance

Regular maintenance helps maximize machine lifespan and maintain machining accuracy.

Recommended practices include:

· Inspect guideways regularly

· Monitor spindle condition

· Maintain lubrication systems

· Check hydraulic pressure

· Calibrate CNC systems

· Clean chip removal systems

· Inspect tool holders

· Verify rotary table accuracy

Preventive maintenance minimizes downtime and extends equipment reliability.

Choosing the Right CNC Double Column Vertical Turning Lathe

Before investing in a machine, manufacturers should evaluate:

· Maximum turning diameter

· Maximum workpiece height

· Table load capacity

· Spindle power

· Maximum torque

· CNC control brand

· Machine rigidity

· Optional automation

· After-sales technical support

· Availability of spare parts

Selecting the appropriate configuration ensures long-term production efficiency and return on investment.

Conclusion

As heavy industries demand larger, stronger, and more complex components, the CNC Double Column Vertical Turning Lathe has become an essential manufacturing solution. Its rigid double-column construction, powerful cutting capability, advanced CNC control, and outstanding machining accuracy enable manufacturers to produce large workpieces efficiently while maintaining consistent quality.

For companies seeking higher productivity, lower production costs, and reliable machining of heavy-duty components, investing in a high-performance CNC Double Column Vertical Turning Lathe is a strategic choice.

Frequently Asked Questions

What is a CNC Double Column Vertical Turning Lathe used for?

It is primarily used for machining large, heavy, and high-precision components such as bearing rings, flanges, turbine parts, railway wheels, and industrial equipment.

Why is a double-column design better than a single-column machine?

The double-column structure provides greater rigidity, improved stability, higher load capacity, and better resistance to vibration during heavy cutting.

Which industries commonly use CNC Double Column Vertical Turning Lathes?

Industries including wind energy, mining, oil & gas, aerospace, railway manufacturing, shipbuilding, and heavy equipment manufacturing widely use these machines.

Can a CNC Double Column Vertical Turning Lathe perform milling operations?

Yes. Many models can be equipped with live milling heads, C-axis control, drilling units, and automatic tool changers for multi-process machining.

How does a vertical turning lathe improve machining accuracy?

The vertical design supports the workpiece with gravity, reducing deformation and improving rotational stability, while the rigid double-column structure minimizes vibration for higher precision.

Call to Action

Looking for a reliable CNC Double Column Vertical Turning Lathe for heavy-duty machining? JSC provides high-performance vertical turning solutions designed for large workpieces, demanding production environments, and long-term machining accuracy. Contact our engineering team to find the ideal configuration for your manufacturing requirements.
