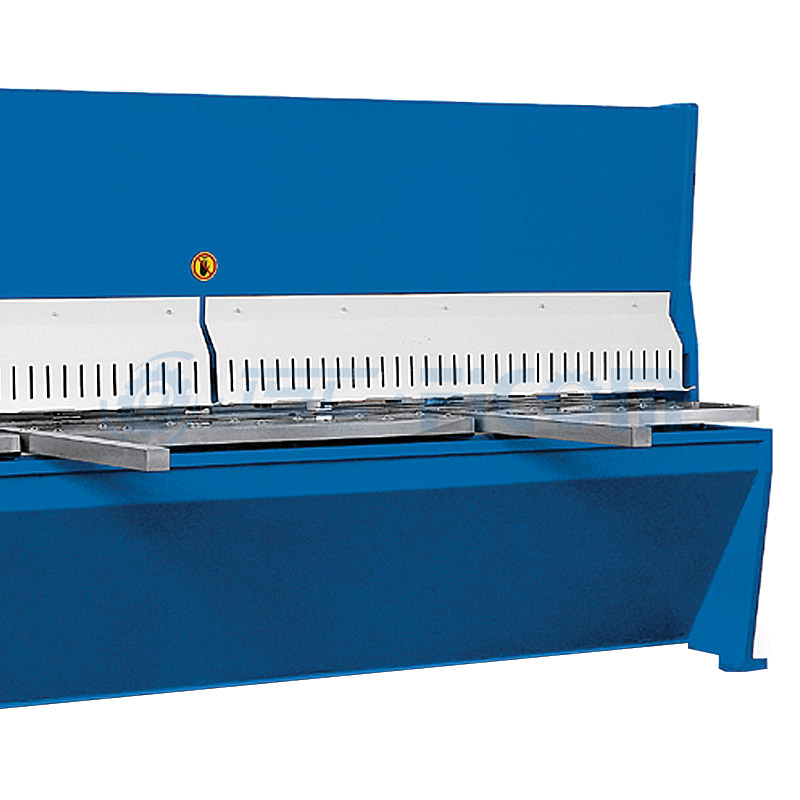

CHG Series CNC Guillotine Shear

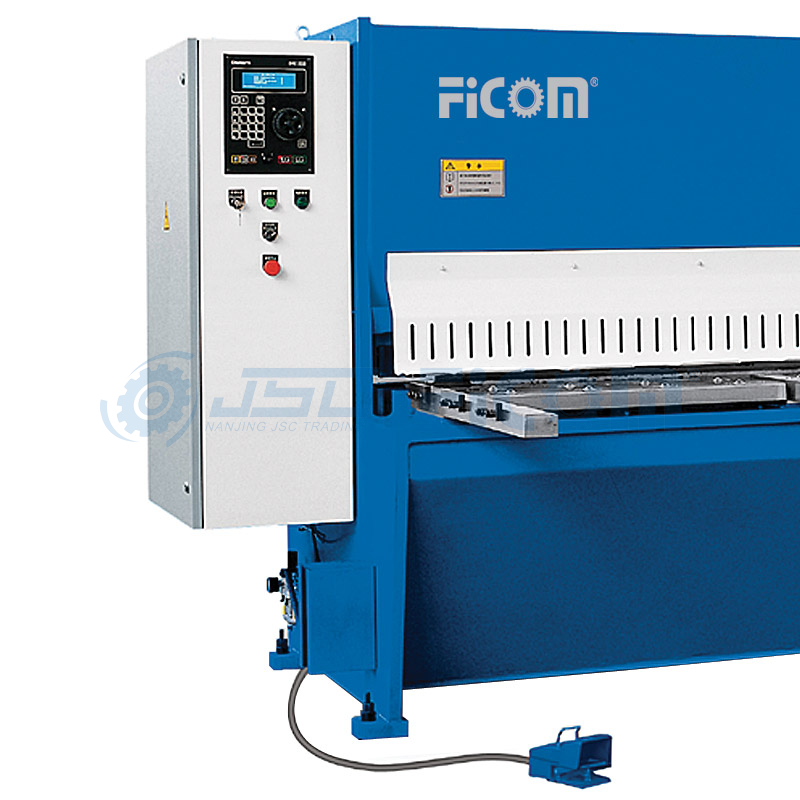

· CHG series CNC shear can automatically adjust its rake angle, shearing length, blade gap and back gauge travel. There are four cutting edges on upper and low blades. The whole frame is treated with annealing. The shear uses DELEM DAC360 CNC control system from Holland and pneumatic back material support device.

Quantity:
  • CHG
  • FICOM
Overview



CHG

CHG-6×3200

Technical Parameters
Model No.
Unit CHG-6×3200 CHG-6×4200 CHG-8×3200 CHG-8×4200
shearing thickness
common steel mm 6 6 8 8
stainless steel mm 4 4 5 5
workpiece width
mm 3200 4200 3200 4200
shearing angle ° 0.5-2.0 0.5-2.0 0.5-2.0 0.5-2.0
backgauge length mm 1000 1000 1000 1000
backgauge speed mm/s 200 200 200 200
backgauge accuracy mm ±0.10 ±0.10 ±0.10 ±0.10
oiltank capacity L 180 180 180 180
G.W. Kg 6000 7000 8000 9000
machine outline demension(L×W×H)
mm 4000×2500×1710 5060×2525×2150 3930×2485×1835 5060×2525×2150
