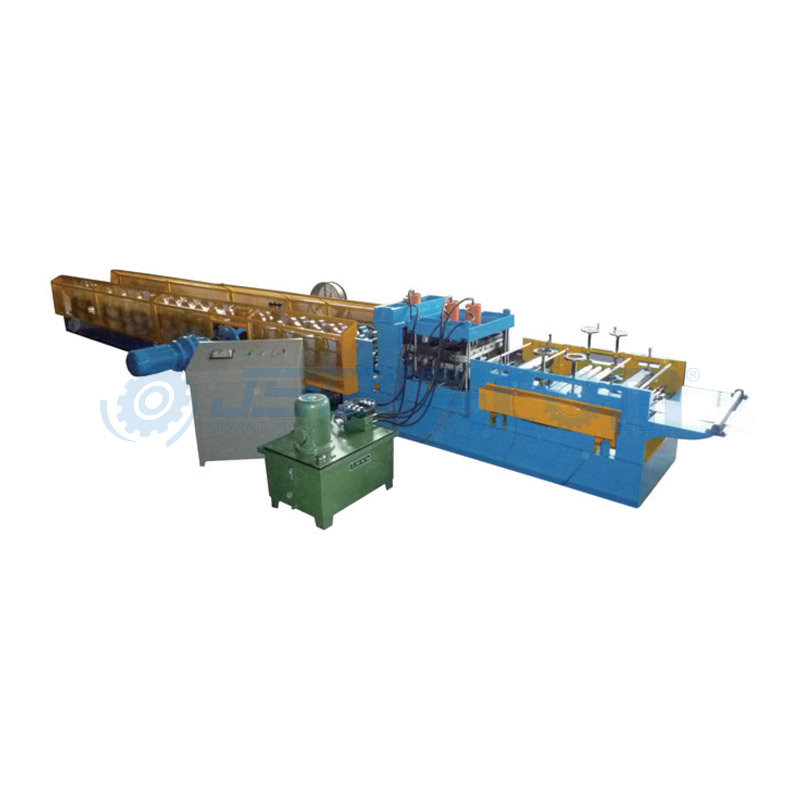

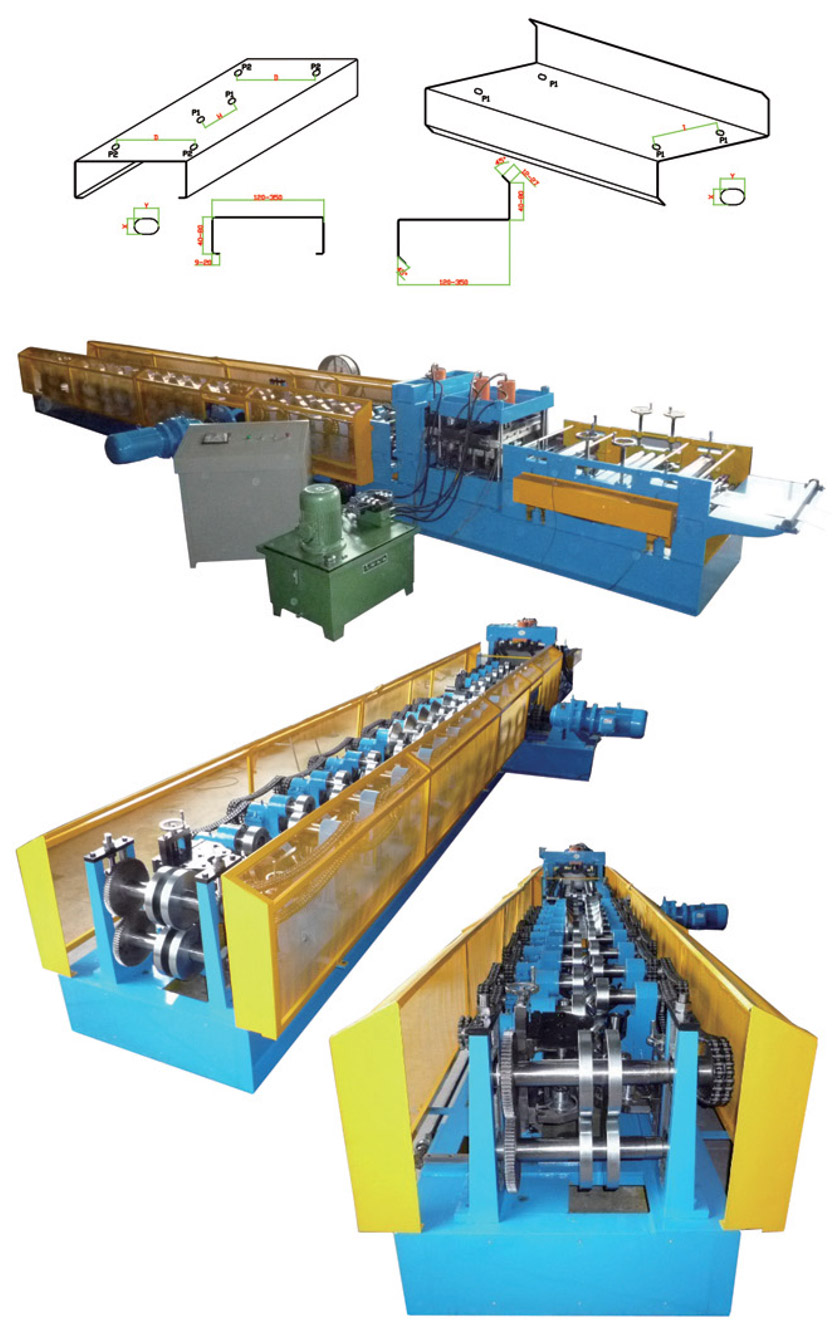

C/Z Purlin interchangeable Roll Forming Machine

C/Z Purlin interchangeable Roll Forming Machine

C/Z Purlin interchangeable Roll Forming Machine

C/Z Purlin interchangeable Roll Forming Machine

C/Z Purlin interchangeable Roll Forming Machine

Share to:

C/Z Purlin interchangeable Roll Forming Machine

Availability:

Quantity:



Inquire Add to Basket

Brand:
FICOM

Product Description

Overview

CZ-5

Technical Parameters

**Standard Specification**
model	width (mm)	height (mm)	flange (mm)	Thickness mm
C80	80	40	15	1.5-3.0
C100	100	50	20	1.5-3.0
C120	120	50	20	1.5-3.0
C140	140	50	20	1.5-3.0
C160	160	60	20	1.5-3.0
C180	180	60	20	1.5-3.0
C200	200	60	20	1.5-3.0
C220	220	70	20	1.5-3.0
C250	250	70	20	1.5-3.0
C300	300	80	20	1.5-3.0

model	H	B	B	C	T
Z120	120	55	50	20	1.5-3.0
Z150	150	67	61	20	1.5-3.0
Z200	200	67	61	20	1.5-3.0
Z250	250	78	72	20	1.5-3.0
Z300	300	78	72	20	1.5-3.0

**Main Specification**
No.	items	unit	main specification
1	material thichness	mm	1.5-3.0
2	forming speed	m/min	12-15
3	roll station	/	20 stations (depend on the profile)
4	main power	kw	15
5	hydraulic power	kw	5.5
6	control system	/	PLC panasonic
7	drive	/	by chain
