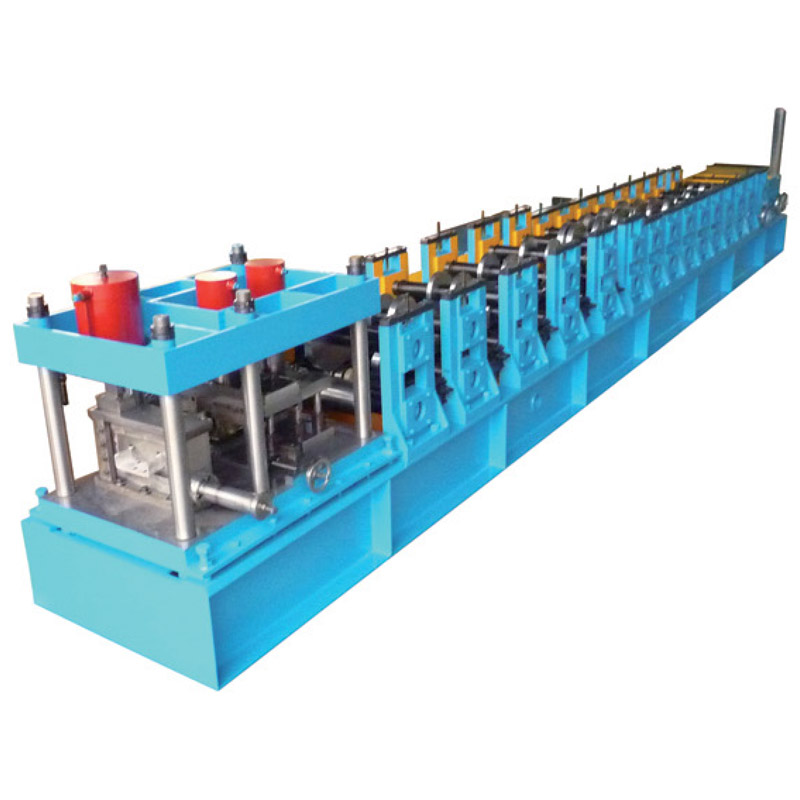

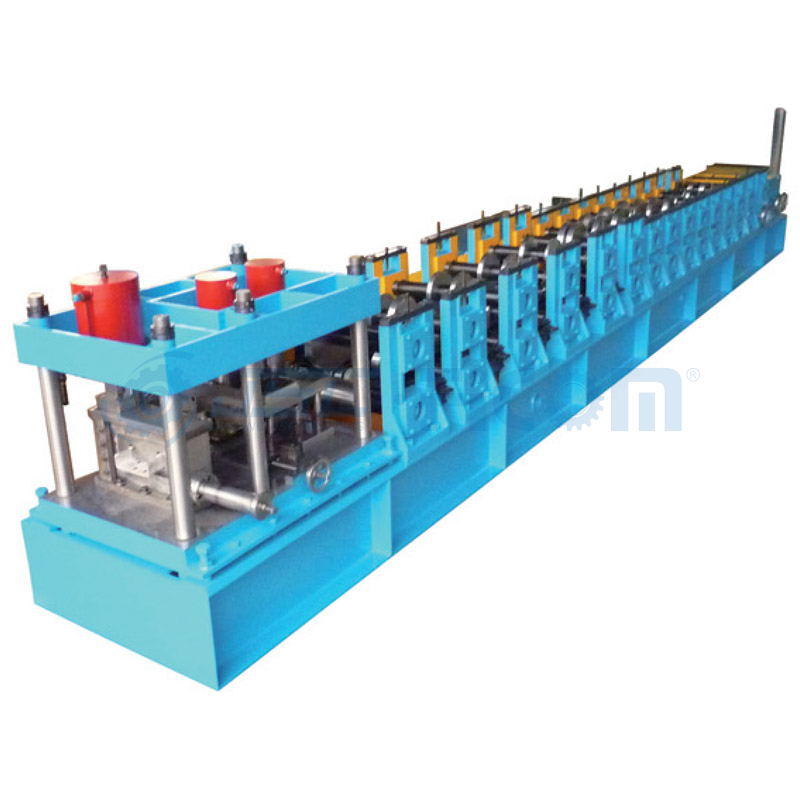

C Purlin Forming Machine

Quantity:
  • FICOM
Overview


Ctype-1Ctype-2

Technical Parameters
Standard Specification

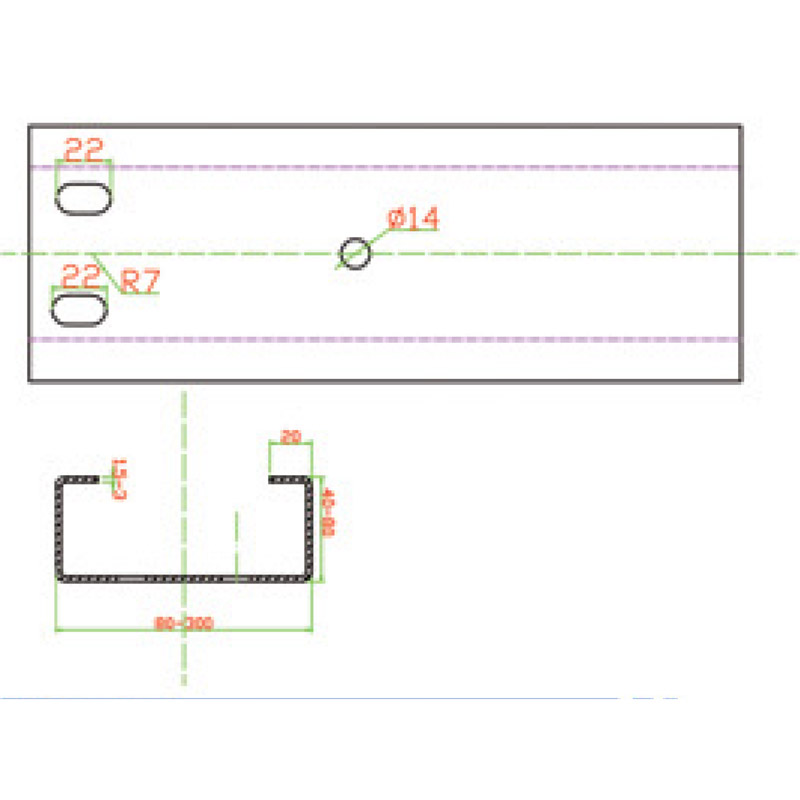

model H B B C T
C80 80 40 40 15 1.5-3.0
C100 100 50 50 20 1.5-3.0
C140 140 50 50 20 1.5-3.0
C160 160 60 60 20 1.5-3.0
C180 180 60 60 20 1.5-3.0
C200 200 60 60 20 1.5-3.0
C220 220 70 60 20 1.5-3.0
C250 250 70 70 20 1.5-3.0


Main Specification
No. items unit main specification
1 material thichness mm 1.5-3.0
2 forming speed m/min 12-15
3 roll station / 14 stations (depend on the profile)
4 main power kw 15
5 hydraulic power kw 7.5
6 control system / PLC panasonic/omron/simens/mitsubishi
7 drive / chain drive
