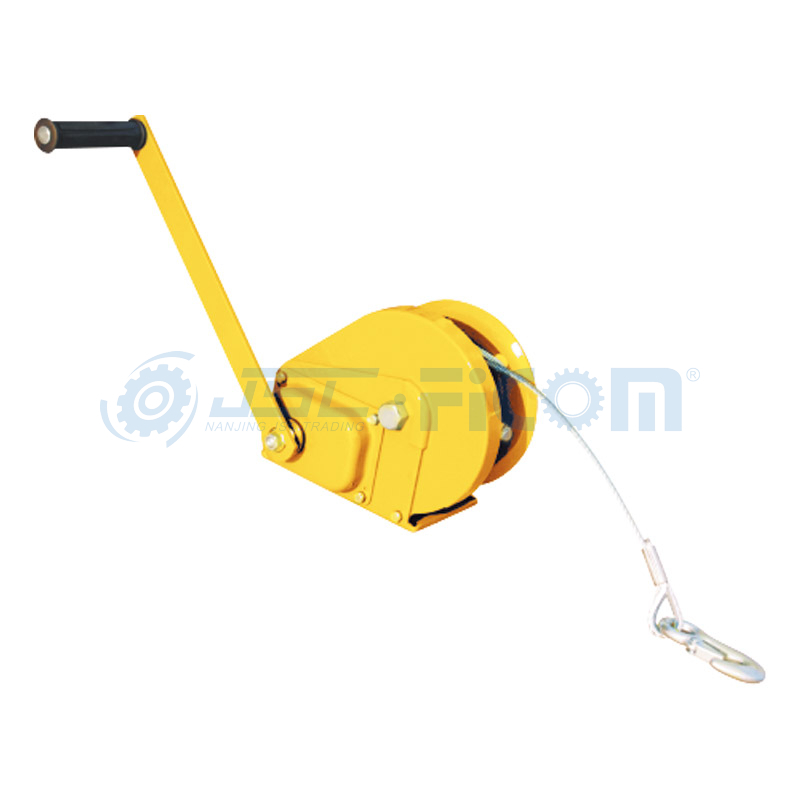

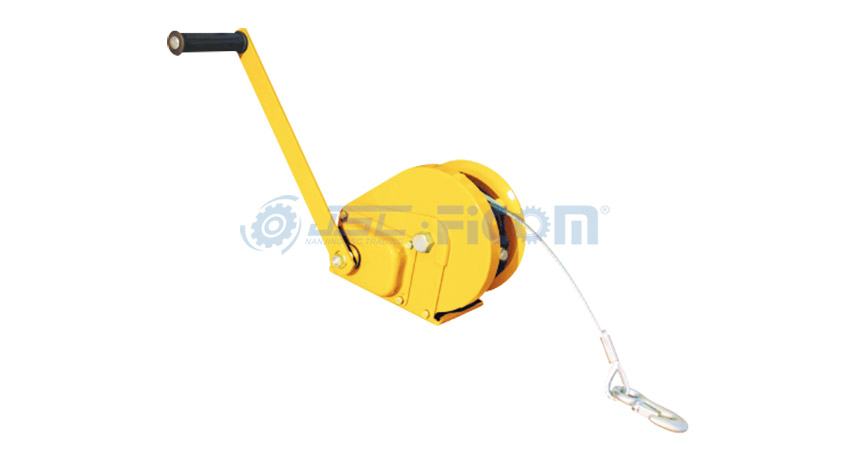

Brake Hand Winch Model: HW (Capacity: Pulling force 800-2600 lb)

The cost-effective solution for a wide variety of applications,HW Brake Hand Winches can be used to pull or lift loads.
Positive action brake can hold the load in any position.
Compact,light weight and rugged construction.
Mechanical components enclosed for protection.
Baked enamel finish for clamp provided.
Available in corrosion resistant grade 304 stainless stainless.
Availability:
Quantity:
  • HW

  • FICOM

Overview

Capacity: Pulling force 800-2600 lb

55

Technical Parameters

Model



Capacity

Pull-Lift

(kg)

Hand Force

Required

(kg)

Gear

Ratio


Hub

Dia.

(mm)

Handle

Length

(mm)

Rope

Storage

(m)

Rope

Dia.

(m)

Net

Weight

(kg)

HW080 370-180 14.5 4.1:1 φ40 160 36 φ4.0 3
HW120 545-270 15 4.1:1 φ50 210 23 φ5.0 3.3
HW180 820-410 22 5:1 φ70 320 24 φ7.0 8
HW260 1200-600 19 10:1 φ80 320 18 φ8.0 10.3
