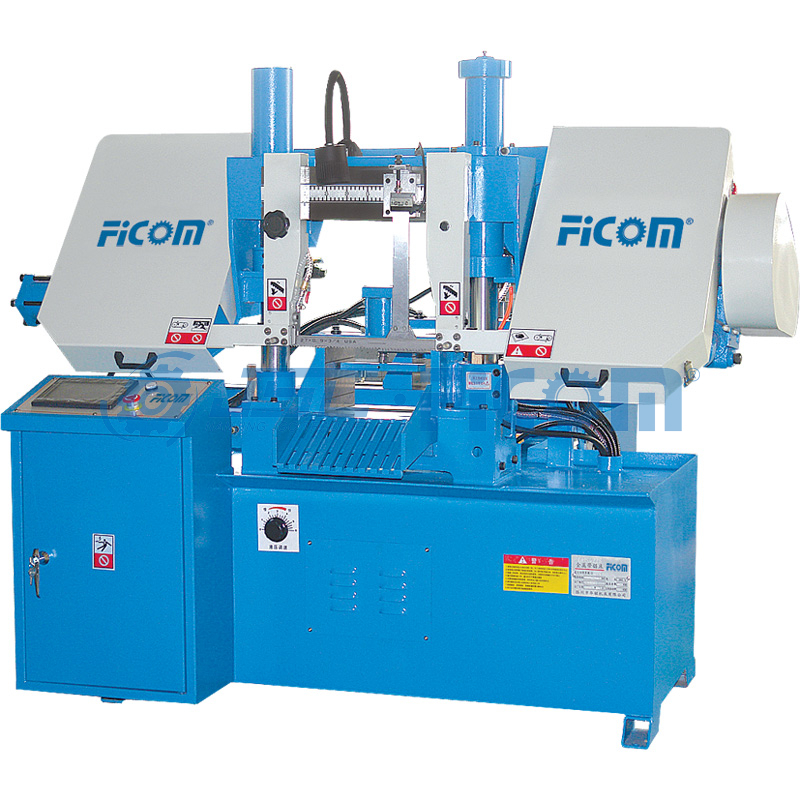

BS4228S/BS4235S
FICOM
· MT 6070H with 7” touch screen from TaiWan
· PLC from TaiWan
| Model No. | BS4228S | BS4235S |
| main motor power | 2.2Kw | 3Kw |
| hydraulic motor power | 0.75Kw | 0.75Kw |
| coolant pump motor power | 0.04Kw | 0.04Kw |
| blade linear speed | 27/45/69m/min | 27/45/69m/min |
| blade feed type | hydraulic stepless | hydraulic stepless |
| blade size | 350.5×27×0.9cm | 411.5×34×1.1cm |
| blade tension type | manual | manual |
| workpiece feed type | CNC hydraulic automatic | CNC hydraulic automatic |
| workpiece clamp type | hydraulic | hydraulic |
| G.W. | 1100Kg | 1300Kg |
| CNC system | 7" touch screen | 7" touch screen |
| PLC controller | PLC controller | |
| power switch | power switch | |
| grating ruler | grating ruler | |
| cutting range (round) | Φ280mm | Φ350mm |
| cutting range (square) | 280×280mm | 350×350mm |
· MT 6070H with 7” touch screen from TaiWan
· PLC from TaiWan
| Model No. | BS4228S | BS4235S |
| main motor power | 2.2Kw | 3Kw |
| hydraulic motor power | 0.75Kw | 0.75Kw |
| coolant pump motor power | 0.04Kw | 0.04Kw |
| blade linear speed | 27/45/69m/min | 27/45/69m/min |
| blade feed type | hydraulic stepless | hydraulic stepless |
| blade size | 350.5×27×0.9cm | 411.5×34×1.1cm |
| blade tension type | manual | manual |
| workpiece feed type | CNC hydraulic automatic | CNC hydraulic automatic |
| workpiece clamp type | hydraulic | hydraulic |
| G.W. | 1100Kg | 1300Kg |
| CNC system | 7" touch screen | 7" touch screen |
| PLC controller | PLC controller | |
| power switch | power switch | |
| grating ruler | grating ruler | |
| cutting range (round) | Φ280mm | Φ350mm |
| cutting range (square) | 280×280mm | 350×350mm |
