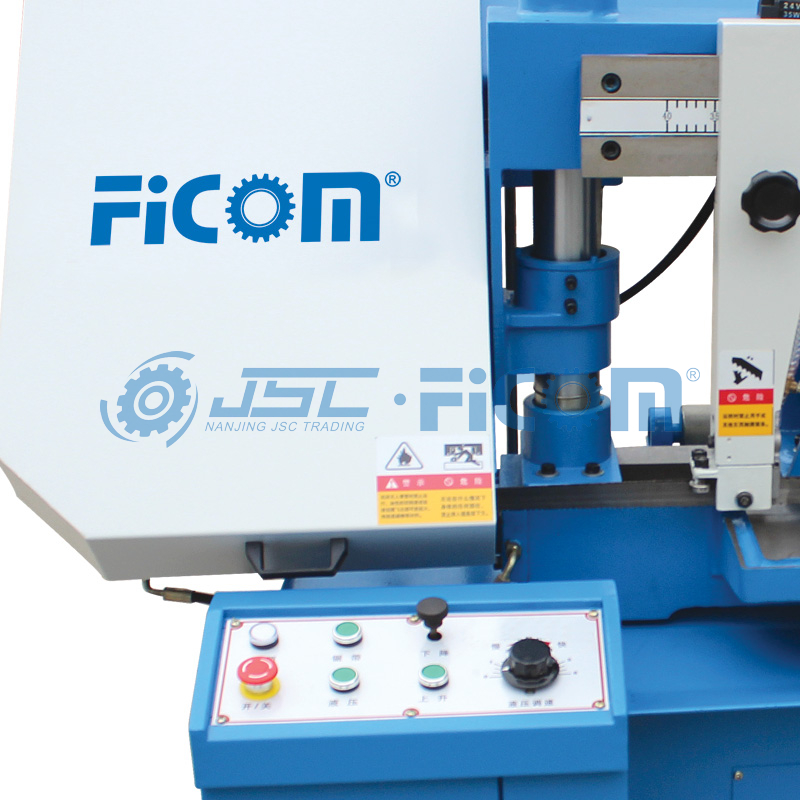

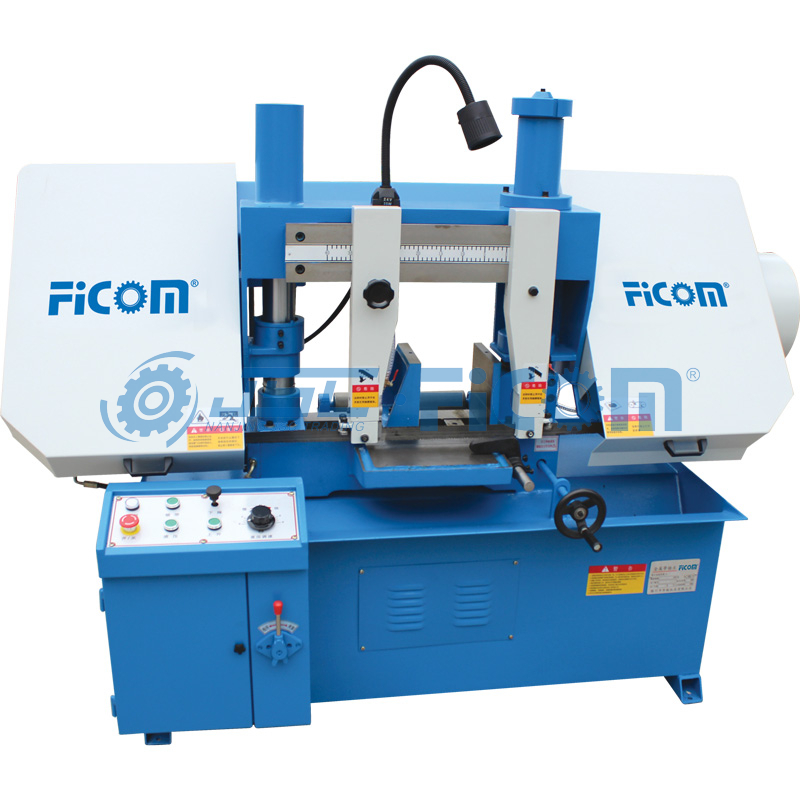

BS4220/BS4220A/BS4228/BS4235/BS4240/BS4250/BS4270/BS4280/BS42100/BS42130
FICOM
| Model No. | BS4220 | BS4220A | BS4228 | BS4235 | BS4240 |
| main motor power | 1.5Kw | 1.5Kw | 2.2Kw | 3Kw | 4Kw |
| hydraulic motor power | 0.55Kw | 0.55Kw | 0.55Kw | 0.55Kw | 0.75Kw |
| coolant pump motor power | 0.04Kw | 0.04Kw | 0.04Kw | 0.04Kw | 0.09Kw |
| blade linear speed | 27/45/69m/min | 27/45/69m/min | 27/45/69m/min | 27/45/69m/min | 27/45/69m/min |
| blade feed type | hydraulic stepless | hydraulic stepless | hydraulic stepless | hydraulic stepless | hydraulic stepless |
| main drive structure | worm wheel | worm wheel | worm wheel | worm wheel | worm wheel |
| blade size | 265×27×0.9cm | 280×27×0.9cm | 350.5×27×0.9cm | 411.5×34×1.1cm | 500×41×1.3cm |
| blade tension type | manual | manual | manual | manual | manual |
| workpiece feed type | manual | manual | manual | manual | manual |
| workpiece clamp type | manual | hydraulic | hydraulic | hydraulic | hydraulic |
| G.W. | 310Kg | 310Kg | 660Kg | 770Kg | 1450Kg |
| cutting range (round) | Φ200mm | Φ200mm | Φ280mm | Φ350mm | Φ400mm |
| cutting range (rectangular) | 200×200mm | 200×200mm | 280×280mm | 350×350mm | 400×400mm |
| Model No. | BS4250 | BS4270 | BS4280 | BS42100 | BS42130 |
| main motor power | 5.5Kw | 5.5Kw | 7.5Kw | 11Kw | 15Kw |
| hydraulic motor power | 0.75Kw | 1.1Kw | 2.25Kw | 3.75Kw | 3.75Kw |
| coolant pump motor power | 0.09Kw | 0.125Kw | 0.125Kw | 0.125Kw | 0.125Kw |
| blade linear speed | 27/45/69m/min | 27/45/69m/min | 27/45/69m/min | 15-60 various speeds | 15-60 various speeds |
| blade feed type | hydraulic stepless | hydraulic stepless | hydraulic stepless | hydraulic stepless | hydraulic stepless |
| main drive structure | worm wheel | gear speed reducer | gear speed reducer | gear speed reducer | gear speed reducer |
| blade size | 580×41×1.3cm | 720.5×54×1.6cm | 882×54×1.6cm | 982×67×1.6cm | 1118×67×1.6cm |
| blade tension type | manual | hydraulic | hydraulic | hydraulic | hydraulic |
| workpiece feed type | manual | motor drive | motor drive | motor drive | motor drive |
| workpiece clamp type | hydraulic | hydraulic | hydraulic | hydraulic | hydraulic |
| G.W. | 2000Kg | 3600Kg | 4400Kg | 7600Kg | 10100Kg |
| cutting range (round) | Φ500mm | Φ700mm | Φ800mm | Φ1000mm | Φ1300mm |
| cutting range (rectangular) | 500×500mm | 700×700mm | 800×800mm | 1000×1000mm | 1300×1300mm |
