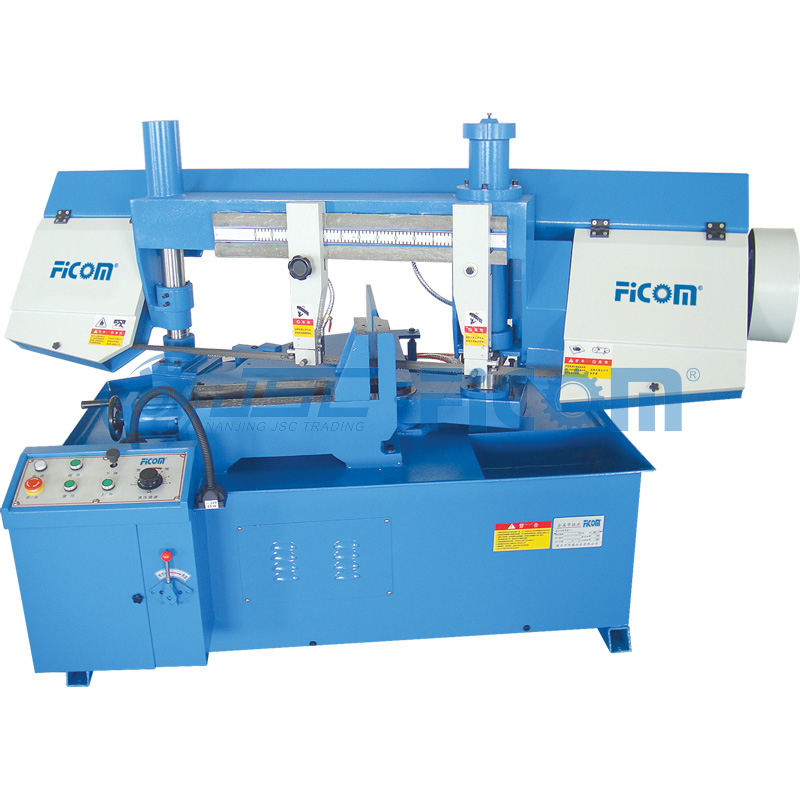

BS280Z/BS350Z
FICOM
· Balde angle can be adjusted
| Model No. | BS280Z | BS350Z |
| main motor power | 2.2Kw | 3Kw |
| hydraulic motor power | 0.55Kw | 0.55Kw |
| coolant pump motor power | 0.04Kw | 0.04Kw |
| blade linear speed | 27/45/69m/min | 27/45/69m/min |
| blade feed type | hydraulic stepless | hydraulic stepless |
| blade size | 350.5×27×0.9cm | 4115×34×1.1cm |
| blade tension type | manual | manual |
| workpiece feed type | manual | manual |
| workpiece clamp type | hydraulic | hydraulic |
| G.W. | 750Kg | 900Kg |
| cutting range (round) | Φ280mm | Φ350mm |
| cutting range (square) | 280×280mm | 350×350mm |
| cutting range (rectangular) | 320×280mm | 380×350mm |
| cutting range (round) | Φ240mm | Φ300mm |
| cutting range (square) | 240×240mm | 300×300mm |
| cutting range (rectangular) | 280×240mm | 350×300mm |
· Balde angle can be adjusted
| Model No. | BS280Z | BS350Z |
| main motor power | 2.2Kw | 3Kw |
| hydraulic motor power | 0.55Kw | 0.55Kw |
| coolant pump motor power | 0.04Kw | 0.04Kw |
| blade linear speed | 27/45/69m/min | 27/45/69m/min |
| blade feed type | hydraulic stepless | hydraulic stepless |
| blade size | 350.5×27×0.9cm | 4115×34×1.1cm |
| blade tension type | manual | manual |
| workpiece feed type | manual | manual |
| workpiece clamp type | hydraulic | hydraulic |
| G.W. | 750Kg | 900Kg |
| cutting range (round) | Φ280mm | Φ350mm |
| cutting range (square) | 280×280mm | 350×350mm |
| cutting range (rectangular) | 320×280mm | 380×350mm |
| cutting range (round) | Φ240mm | Φ300mm |
| cutting range (square) | 240×240mm | 300×300mm |
| cutting range (rectangular) | 280×240mm | 350×300mm |
