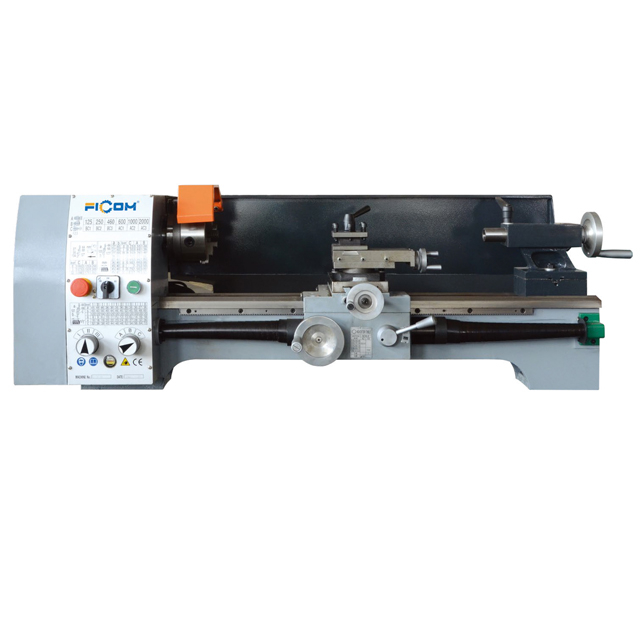

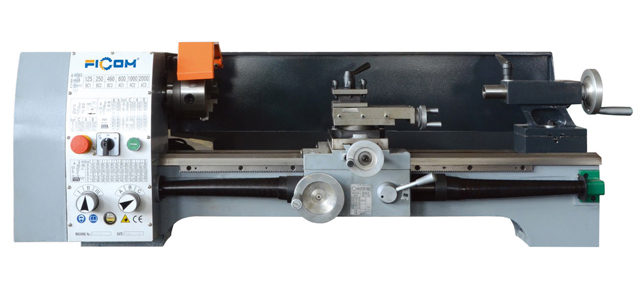

BQ1022/BQ1126
FICOM
· The bed way is hardened and ground. It features with super pome accuracy and well wear-resisting.
· The main spindle is mounted on 2 precision accuracy taper roller bearings.
· The hole through main spindle is 26mm and the highest speed for main spindle is 2000r.p.m.
· Changing speeds by belt, The machine can operate at low noise.
| Model No. | BQ1022 | BQ1126 |
| max. swing over bed | 254mm | 280mm |
| max. swing over cross slide | 156mm | 182mm |
| max. length of workpieces | 550mm | 660mm |
| taper of spindle bore | M.T.No.4 | M.T.No.4 |
| spindle bore | 26mm | 26mm |
| range of spindle speed | 125-2000rpm(50Hz) | 125-2000rpm(50Hz) |
| 125-2400rpm(60Hz) | 150-2400rpm(60Hz) | |
longitudinal feed per revolution of spindle | 0.063-0.35mm/rev | 0.063-0.35mm/rev |
range of inch threads | 8-72T.P.I(32kinds) | 8-72T.P.I(32kinds) |
| maximum tool size | 0.25-3.5mm(18kinds) | 0.25-3.5mm(18kinds) |
| range of metric threads | 12×12mm | 12×12mm |
| dia. of tailstock sleeve | 32mm | 32mm |
| taper of tailstock sleeve bore | M.T.No.2 | M.T.No.2 or No.3 |
| max. travel of tailstock sleeve | 65mm | 65mm |
| motor power | 0.75Kw(1HP) | 0.75Kw(1HP) |
| motor frequency | 50Hz or 60Hz | 50Hz or 60Hz |
| N.W. | 150Kg | 180Kg |
| packing size(L×W×H) | 140×57×56.5cm | 140×57×63cm |
| G.W. | 2000Kg | 2300Kg |
3 jaws & 4 jaws chuck | face plate | steady rest | follow rest |
| toolbox & tools | micro carriage stop |
quick change tool post | turning tools | digital readout | leadscrew cover |
| chuck cover | stand & oil tray |
