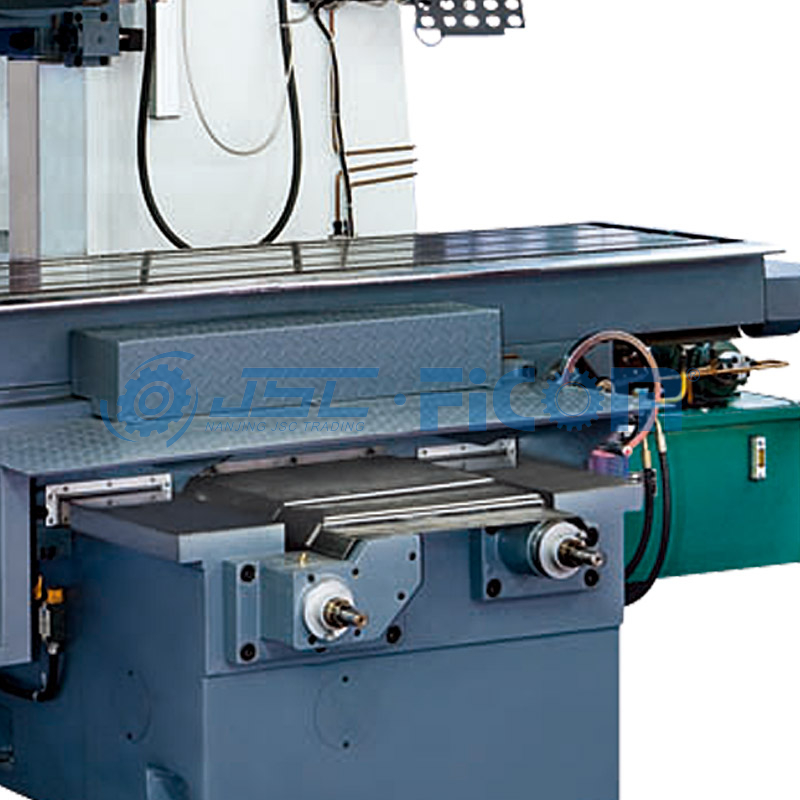

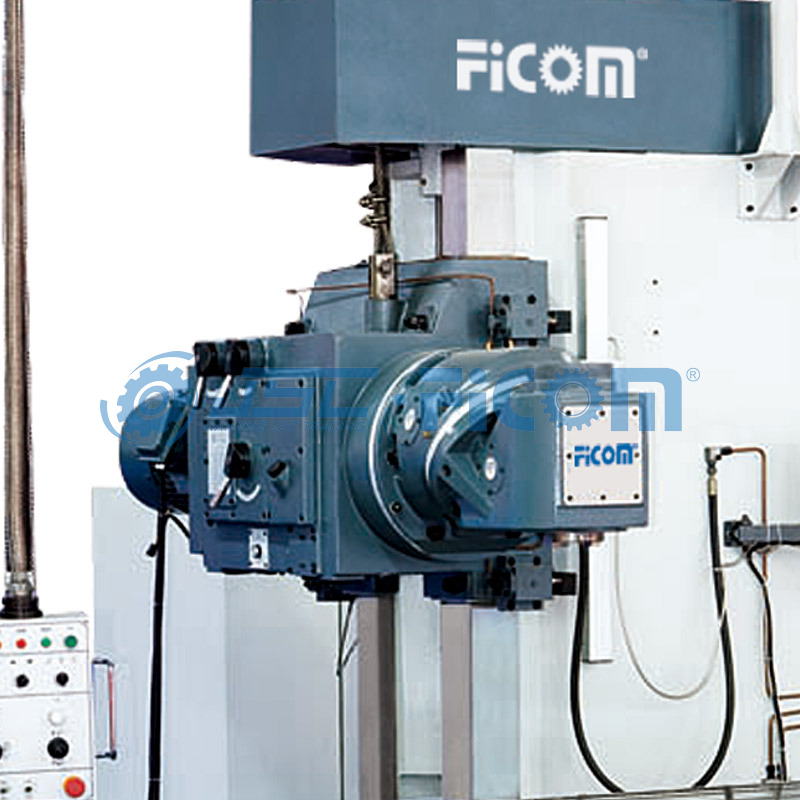

BM715/BM716
FICOM
| Model No. | BM715 | BM716 |
| table size | 2100×500mm | 2500×575 |
| table travel(X,Y,Z) | 1500×670mm | 1800(2000)×600×900 |
| min.distance from hor.spindle aixs to worktable surface | 8-680mm | 30mm |
| max.distance from vertical spindle nose to worktable surface | 0-670mm | 49mm |
| distance from vertical spindle axis to column guideway | 610mm | 110mm |
| spindle taper | ISO50 | ISO50 |
| number/width/Distance of T-slot | 4-20-100mm | 3-22-152mm |
| max.load of worktable | 2000Kg | 3000Kg |
| feed speed | 20-1800mm/min | 12-1320mm/min |
| spindle speed range | 35-1345rpm | 40-1200rpm |
| spindle speed step | 12steps | 12steps |
| spindle motor power | 7.5Kw | 11Kw |
| overall dimension | 3300×2380×2750mm | 4300×3200×3300mm |
| G.W. | 7300Kg | 10000Kg |
