| Quantity: | |
|---|---|
· Meehanite cast-iron construction.
· Rectangular guidways y.z with high rigidity.
· Hardened and ground table surface.
· Infintely variable speed.

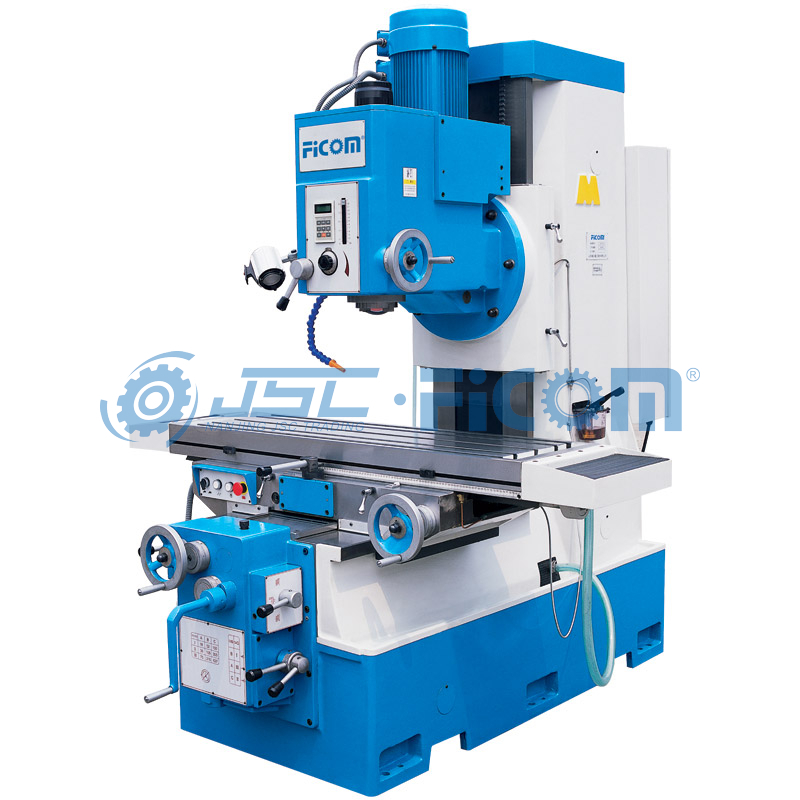

| Model No. | BM7140 |
| work table size | 400×1400mm |
| spindle taper | ISO50 |
| distance from spindle nose to table surface | 150-650mm |
| max. drilling diameter (steel) | 50mm |
| max. tapping diameter (steel) | 20mm |
| max. end milling cutter diameter | 125mm |
| max. distance from spindle to guide surface | 520mm |
| max. distance between spindle end to the surface of the worktable | 520mm |
| max. stroke of the spindle | 105mm |
| max. travel for the spindle box in up and down position | 500mm |
| spindle taper | ISO50 |
| spindle speed steps | stepless |
| spindle speed range | 18-1800rpm |
| number of the T slots and its width of the worktable | 3-T18-100mm |
| max. travel for X Y directions | 800×400mm |
| quill travel | 105mm |
| range of spindle speed | 45-1660(V)/38-1310(H)r/min |
| table travel | 800×400mm |
| power of the main motor(VF) | 7.5Kw |
| motor | 7.5Kw |
| overall dimension | 2290×2040×2120mm |
| N.W./G.W. | 3600/3860Kg |
| drill chuck | mill chuck | vice | wrech |
| reduction sleeve | wedge shifter | vertical draw bar | horizontal draw bar |
| milling bar | horizontal milling bar | spindle arbor | operation manual |
