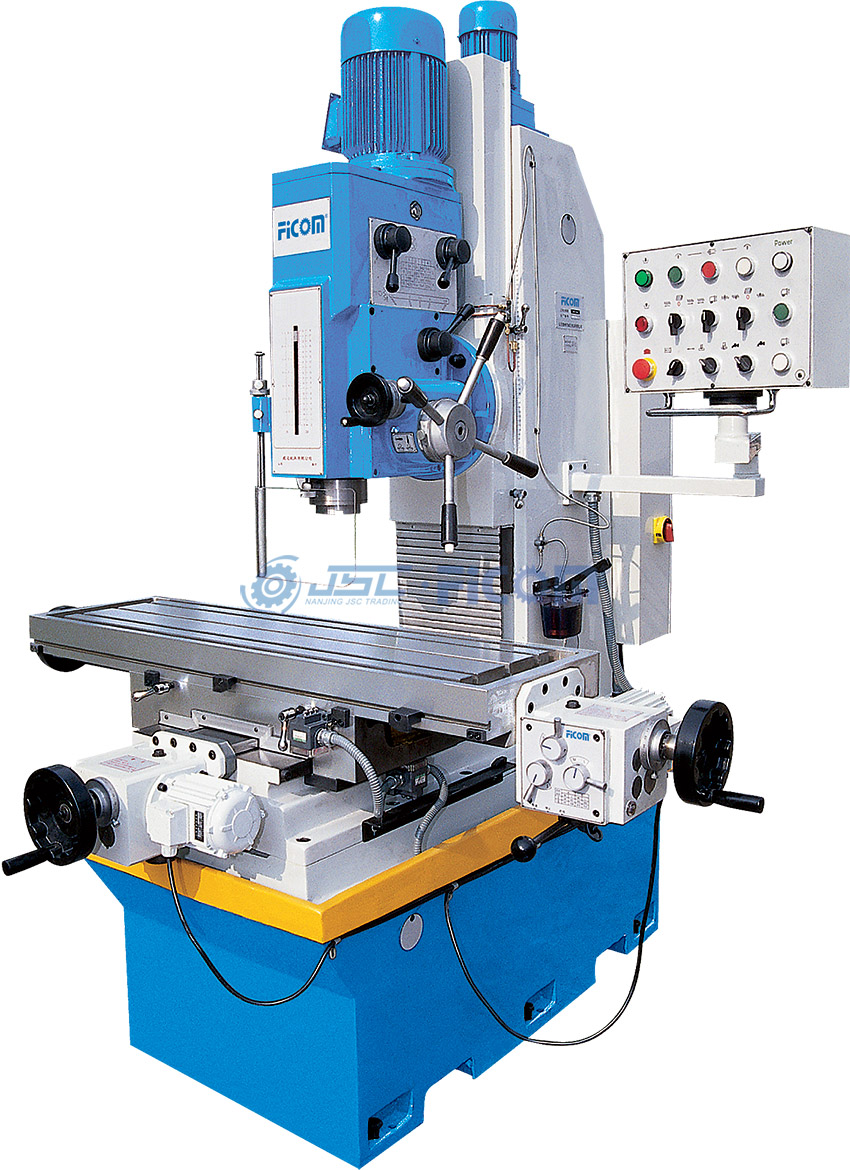

BM5150
FICOM
· Rectangular table guidways with high stability.
· Automatic spindle feed.
· Motorized lifting and lowering of headstock.
· Headstock lifting and lowering of headstock.
· Headstock swivels ±45°.
· Hardened and ground table surface.
| Model No. | BM5150 |
| work table size | 360×1220mm |
| T-slot size | 3×16mm |
| max. drilling dia. | 50mm |
| max. end milling dia. | 125mm |
| max. vertical milling dia. | 32mm |
| distance from spindle nose to table surface | 50-580mm |
| range of spindle speed | 94-2256r/min |
| spindle stroke | 180mm |
| step of spindle speed | 16 |
| automatic spindle feed | 0.1/0.15/0.3mm |
| overall dimensions | 1730×1730×2300mm |
| motor | 1.5/2.4Kw |
| N.W. | 2000Kg |
| drill chuck | mill chuck | vice | coolant systemchip tray |
| reduction sleeve | tool bar | foundation bolt | spindle arbor |
| operation manual |
