BL1236
FICOM

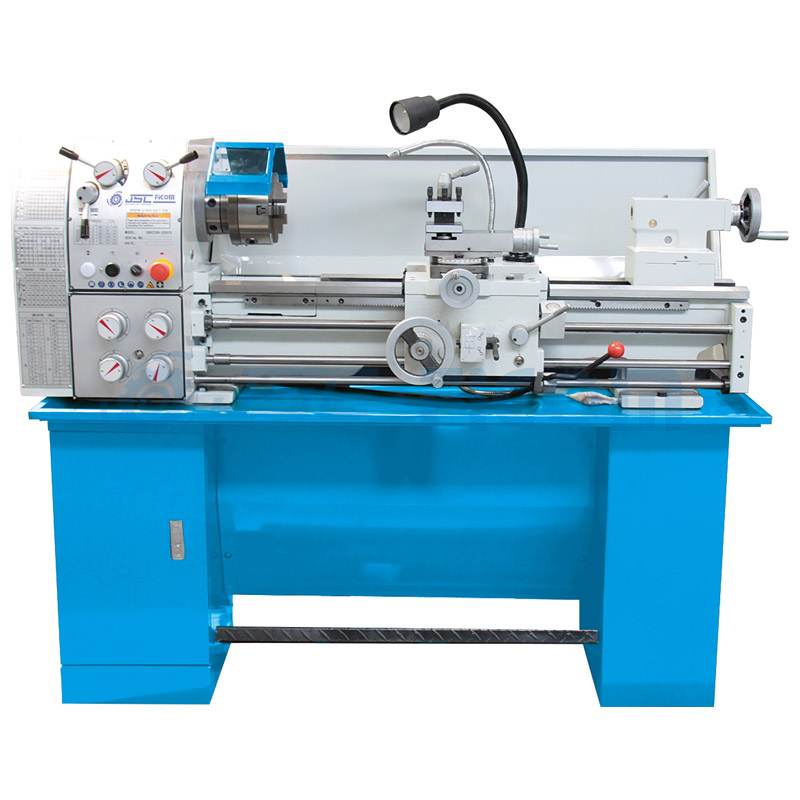

| Model No. | Unit | TU3209 | TU3209 Vario |
max. swing over bed | mm | Ø320(12.60") | Ø320(12.60") |
max. swing over cross slide | mm | Ø180(7.09") | Ø180(7.09") |
max. swing over gap | mm | Ø450(17.72") | Ø450(17.72") |
distance between centers | mm | 750/910(29.53"/35.83") | 750/910(29.53"/35.83") |
width of bed | mm | 181(7.13") | 181(7.13") |
spindle bore | mm | Ø38(1.50") | Ø38(1.50") |
taper of spindle bore | MT5 | MT5 | |
ranger of spindle speeds | rpm | 65~1810(1400) | 65~1810(1400) |
taper of tailstock | MT3 | MT3 | |
mertic threads can be cut | mm | 0.4-7(0.02"-0.28") | 0.4-7(0.02"-0.28") |
inch threads can be cut | TPI | 4~60 | 4~60 |
range of longitudinal feeds | mm/rev | 0.0527~1.2912 | 0.0527~1.2912 |
range of cross feeds | mm/rev | 0.011~0.276 | 0.011~0.276 |
max. travel of crass slide | mm | 130(5.12") | 130(5.12") |
max. travel of top slide | mm | 75(2.95") | 75(2.95") |
max. travel of tailstock quill | mm | 100(3.94") | 100(3.94") |
motor power | kW | 1.1 3PH/1.5 1PH | 1.1 3PH/1.5 1PH |
3-jaw chuck | Hange gears set | MT3 dead centers | Tool box & tools |
Oil gun | MT5/3 reduction sleeve | Foot stands | Splash guard |
Oil tray |
4-jaw chuck | Face plate | Steady rest | Follow rest |
Work light | Foot brake system | Live center | Drill chuck+drill arbor |
Leadscrew guard | Chuck guard | Localizer | Clutch for feed rod |
Quick change tool post | Digital readout(2 axis) |
| Model No. | Unit | TU3209 | TU3209 Vario |
max. swing over bed | mm | Ø320(12.60") | Ø320(12.60") |
max. swing over cross slide | mm | Ø180(7.09") | Ø180(7.09") |
max. swing over gap | mm | Ø450(17.72") | Ø450(17.72") |
distance between centers | mm | 750/910(29.53"/35.83") | 750/910(29.53"/35.83") |
width of bed | mm | 181(7.13") | 181(7.13") |
spindle bore | mm | Ø38(1.50") | Ø38(1.50") |
taper of spindle bore | MT5 | MT5 | |
ranger of spindle speeds | rpm | 65~1810(1400) | 65~1810(1400) |
taper of tailstock | MT3 | MT3 | |
mertic threads can be cut | mm | 0.4-7(0.02"-0.28") | 0.4-7(0.02"-0.28") |
inch threads can be cut | TPI | 4~60 | 4~60 |
range of longitudinal feeds | mm/rev | 0.0527~1.2912 | 0.0527~1.2912 |
range of cross feeds | mm/rev | 0.011~0.276 | 0.011~0.276 |
max. travel of crass slide | mm | 130(5.12") | 130(5.12") |
max. travel of top slide | mm | 75(2.95") | 75(2.95") |
max. travel of tailstock quill | mm | 100(3.94") | 100(3.94") |
motor power | kW | 1.1 3PH/1.5 1PH | 1.1 3PH/1.5 1PH |
3-jaw chuck | Hange gears set | MT3 dead centers | Tool box & tools |
Oil gun | MT5/3 reduction sleeve | Foot stands | Splash guard |
Oil tray |
4-jaw chuck | Face plate | Steady rest | Follow rest |
Work light | Foot brake system | Live center | Drill chuck+drill arbor |
Leadscrew guard | Chuck guard | Localizer | Clutch for feed rod |
Quick change tool post | Digital readout(2 axis) |
