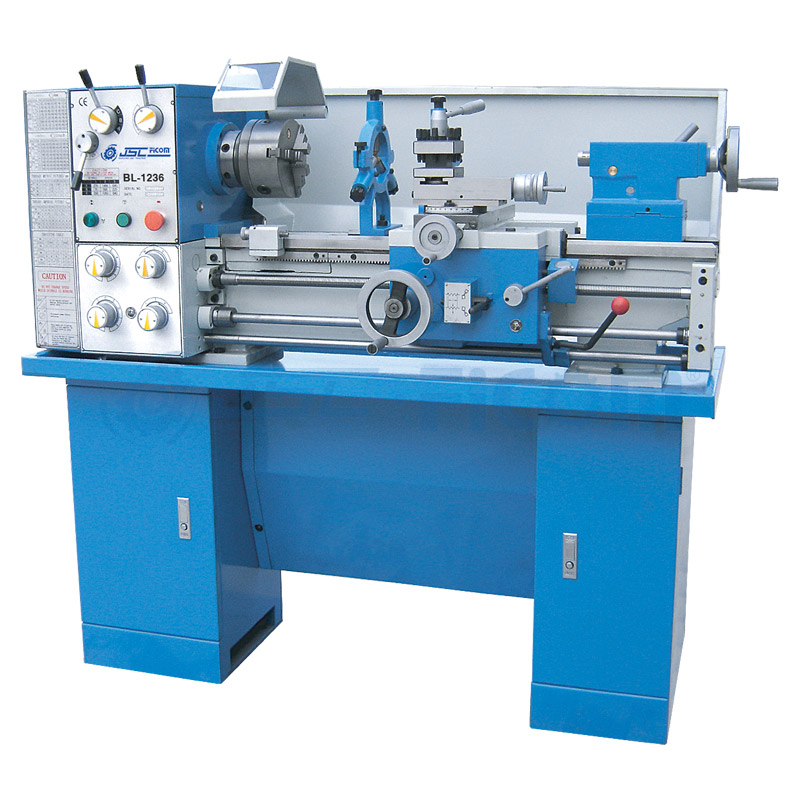

BL1236
FICOM
| Model No. | Unit | BL1236 |
distance between centers | mm | 610/914(24.02"/35.60") |
swing over bed | mm | 300(11.81") |
swing over gap | mm | 430(16.93") |
swing over cross slide | mm | 180(7.09") |
taper of spindle bore | MT5 | |
spindle bore | mm | Ø38(1.50") |
step of spindle speeds | 9 | |
range of spindle speeds | rpm | 75-1400 |
range of cross feeds | mm/r | 0.017-0.276 |
range of longitudinal feeds | mm/r | 0.079-1.291 |
range of inch threads | T.P.I | 4-60 |
range of metric threads | mm | 0.4-7(0.02"-0.28") |
top slide travel | mm | 76(3.00") |
cross slide travel | mm | 175(6.89") |
tailstock quill travel | mm | 90(3.54) |
taper of tailstock quill | MT3 | |
motor | kW | 1.1Kw |
packing size | mm | 1480/1700×750×1450 |
N.W./G.W. | kg | 500/525 |
| Model No. | Unit | BL1236 |
distance between centers | mm | 610/914(24.02"/35.60") |
swing over bed | mm | 300(11.81") |
swing over gap | mm | 430(16.93") |
swing over cross slide | mm | 180(7.09") |
taper of spindle bore | MT5 | |
spindle bore | mm | Ø38(1.50") |
step of spindle speeds | 9 | |
range of spindle speeds | rpm | 75-1400 |
range of cross feeds | mm/r | 0.017-0.276 |
range of longitudinal feeds | mm/r | 0.079-1.291 |
range of inch threads | T.P.I | 4-60 |
range of metric threads | mm | 0.4-7(0.02"-0.28") |
top slide travel | mm | 76(3.00") |
cross slide travel | mm | 175(6.89") |
tailstock quill travel | mm | 90(3.54) |
taper of tailstock quill | MT3 | |
motor | kW | 1.1Kw |
packing size | mm | 1480/1700×750×1450 |
N.W./G.W. | kg | 500/525 |
