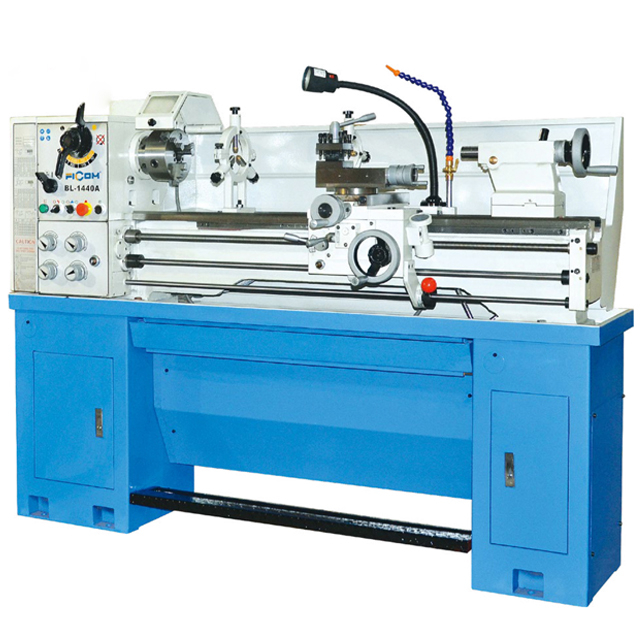

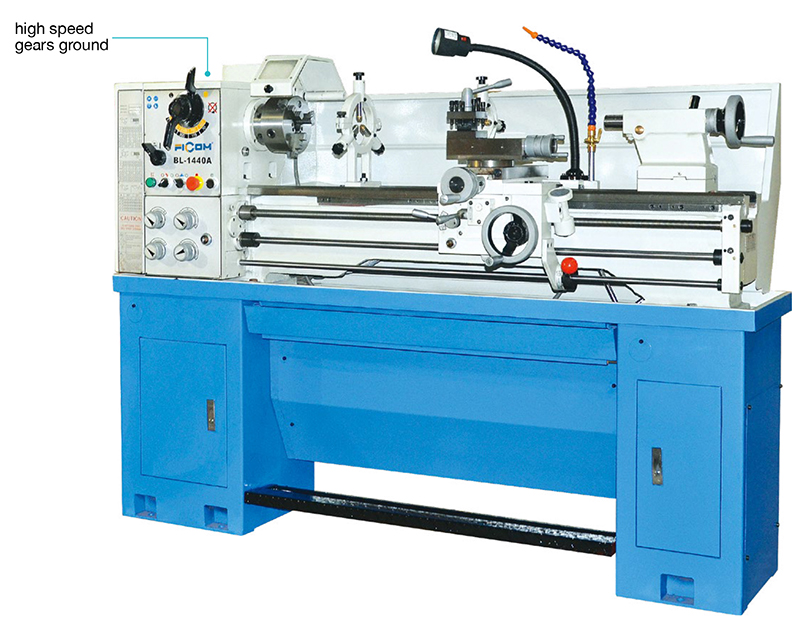

BL-1440A / BL-1440B
FICOM
Model No. | BL-1440A | BL-1440B |
| distance between centers | 1000mm | |
| swing over bed | 360mm | |
| swing over gap | 491mm | |
| swing over cross slide | 212mm | |
| bed width | 187mm | |
| taper of spindle bore | MT5 | |
| spindle nose | D1-4 | D1-5 |
| spindle bore | 38mm | 52mm |
| step of spindle speeds | 8/16(optional) | |
| range of spindle speeds | 70-2000rpm(35-2000rpm optional) | |
| range of cross feeds | 0.018-0.238mm/r | |
| range of longitudinal feeds | 0.078-1.044mm/r | |
| range of inch threads | 34 NOS. 4-56 T.P.I(36 NOS. 8-112 T.P.I available) | |
| range of metric threads | 26 NOS. 0.4-7mm(28NOS. 0.5-5mm available) | |
| top slide travel | 76mm | |
| cross slide travel | 175mm | |
| tailstock quill travel | 100mm | |
| taper of tailstock quill | MT3 | |
| motor | 1.5Kw | |
| packing size | 1700/1930×760×1450mm | |
| N.W./G.W. | 540/560Kg 580/660Kg | |
