· No change gear in tool box.
· The thread category complete, not only cutting metric thread and imperial thread, but also cutting diametral thread and module thread.
· Minimum Cross feed 0.01mm/rev, Minimum Longitudinal feed 0.046mm/rev.

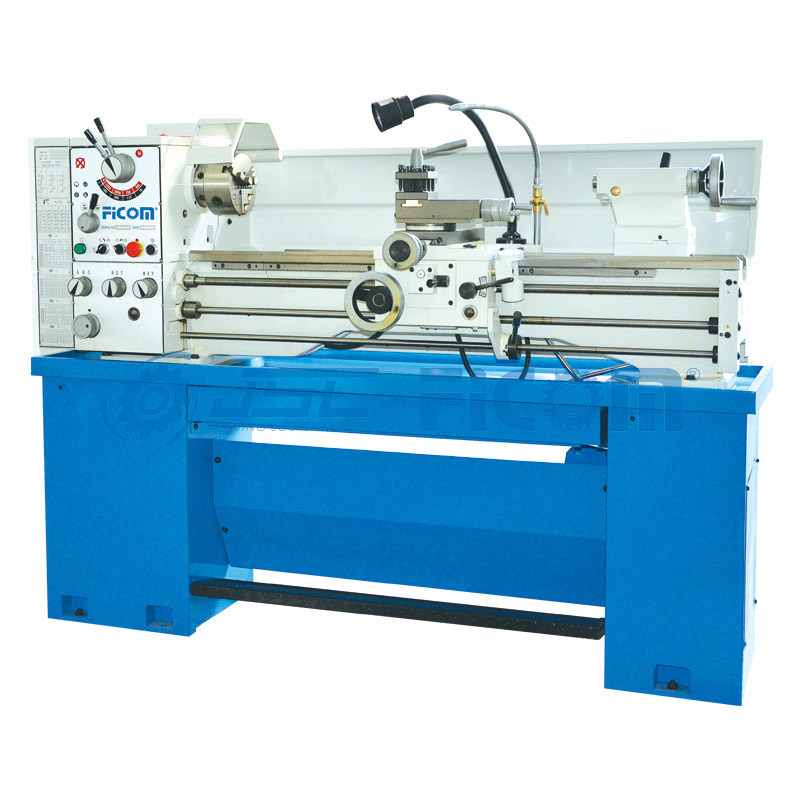

Model No. | BL-1340D | BL-1440D |
swing over bed | 330mm(13") | 360mm(14") |
swing over cross slide | 198mm(7-25/32") | 224mm(8-13/16") |
swing in gap diameter | 476mm(18-3/4") | 502mm(19-3/4") |
length in gap | 210mm(8-1/4") | |
center height | 166mm(6-1/2") | 179mm(7") |
distance between centers | 750mm(30") or 1000mm(40") | |
spindle bore | 38mm(1-1/2") or 40mm(1-9/16") | |
spindle nose | D1-4 or D1-5 | |
taper in nose | No5 morse | |
speeds number | 8 | |
speeds range | 70-2000r/min | |
cross slide travel | 170mm(6-11/16") | |
compound rest travel | 95mm(3-9/16") | |
lead screw thread | 8T.P.I. or 3mm pitch | |
feed rod diameter | 19mm(3/4") | |
cutting tool max section | 16mm×16mm(5/8"×5/8") | |
threads imperial pitches | 42 Nos. 4-112T.P.I | |
threads metric pitches | 44 Nos. 0.1-7mm | |
threads diametral pitches | 25 Nos. 16-112DP | |
threads module pitches | 34 Nos. 0.1-1.75MP | |
longitudinal feeds imperial | 24 Nos. 0.00168-0.1175"/rev | |
longitudinal feeds metric | 24 Nos. 0.046-3.249 mm/rev | |
cross feeds imperial | 32 Nos. 0.00046-0.03231"/rev | |
cross feeds metric | 24 Nos. 0.01-0.703 mm/rev | |
quill diameter | 32mm(1-1/4") or 42mm(1-21/32") | |
quill travel | 100mm(3-15/16") | |
quill taper | MT3 | |
main motor power | 1.5Kw (2HP) | |
coolant pump power | 40W (1/16HP) | |
packing size | 168×76×153cm(750mm) or 193×76×153cm(1000mm) | |
N.W./G.W. | 510/630Kg(750mm) or 540/645Kg(1000mm) |
3 jaws & 4 jaws chuck | face plate | steady rest | follow rest |
stand | toolbox & tools | micro carriage stop | halogen work lamp |
coolant system | foot brake | thread dials |
quick change tool post | turning tools | taper turning attachment | digital readout |
leadscrew cover | collet attachment | chuck guard |
