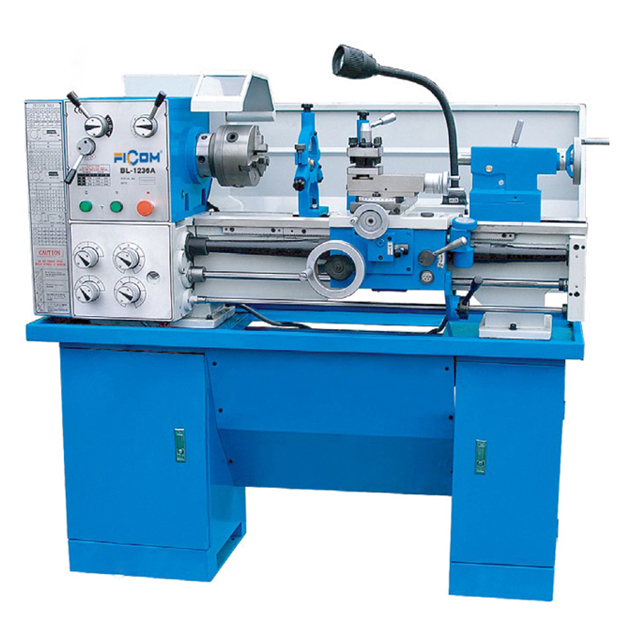

BL-1236A Bench Lathe (Heavy Duty Model)

Availability:
Quantity:
Inquire Add to Basket

  • BL-1236A

  • FICOM


Overview

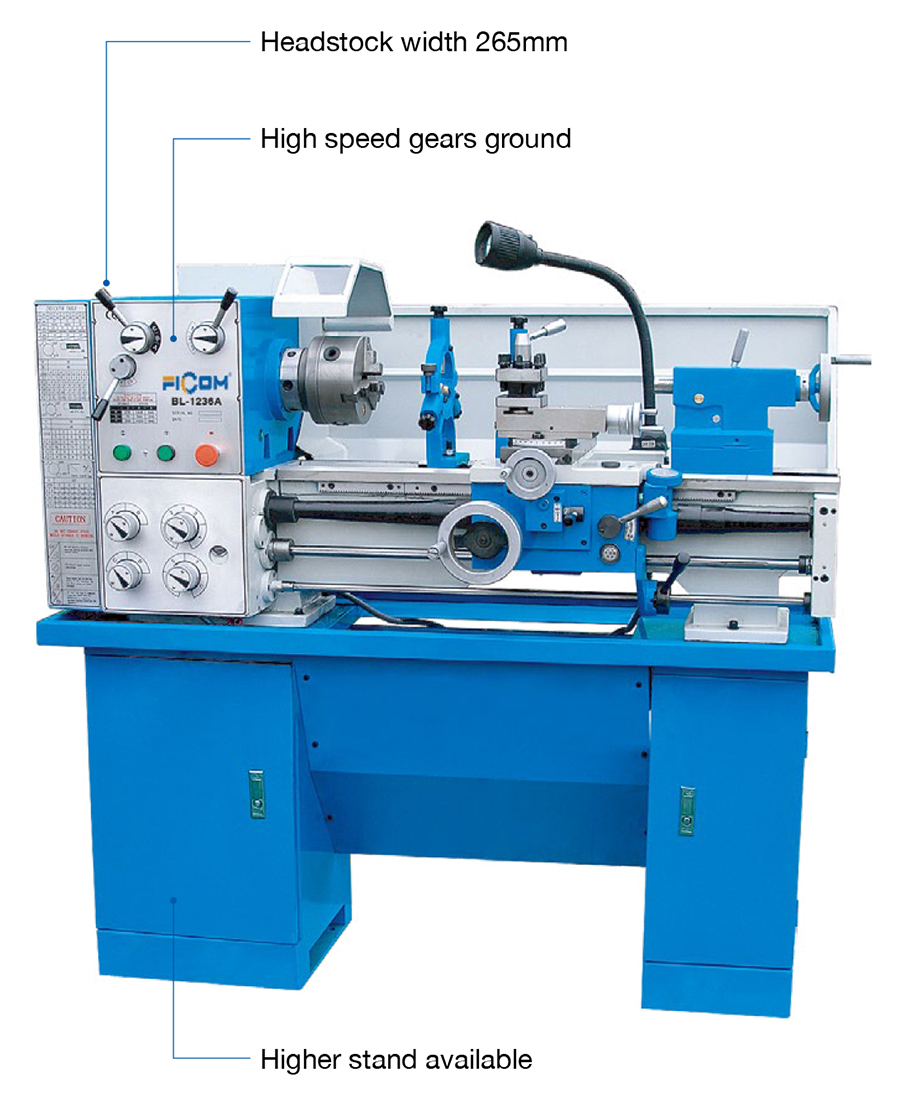

-1-大


Technical Parameters
Model No. BL-1236A

distance between centers

 610/914mm

swing over bed

 300mm

swing over gap

 430mm

swing over cross slide

 180mm

taper of spindle bore

 MT5

spindle bore

 38mm

step of spindle speeds

 9
range of spindle speeds 75-1400rpm

range of cross feeds

 0.018-0.238mm/r

range of longitudinal feeds

 0.078-1.044mm/r

range of inch threads

 2-1/2-40T.P.I

range of metric threads

 0.45-10mm

top slide travel

 76mm

cross slide travel

 175mm

tailstock quill travel

 90mm

taper of tailstock quill

 MT3

motor

 1.1Kw

packing size

 1480/1700×750×1450mm
N.W./G.W. 500/525Kg
