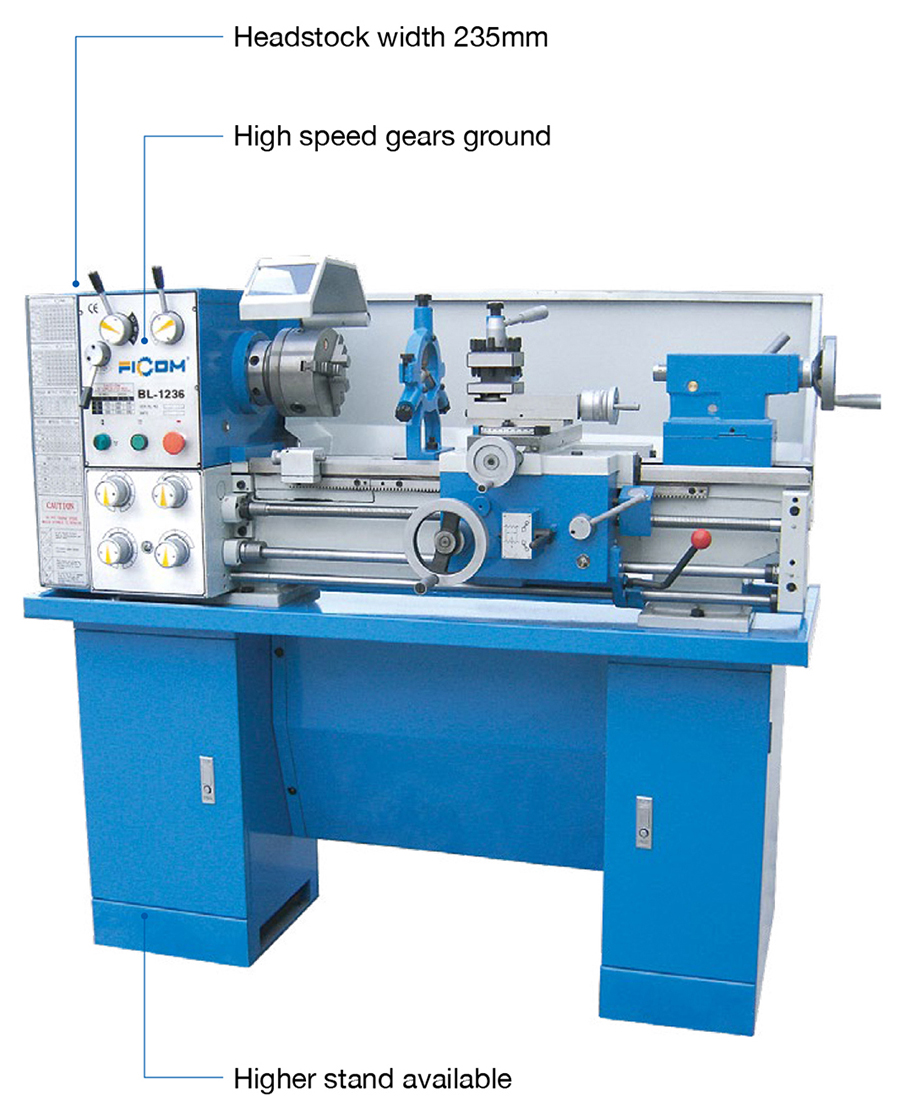

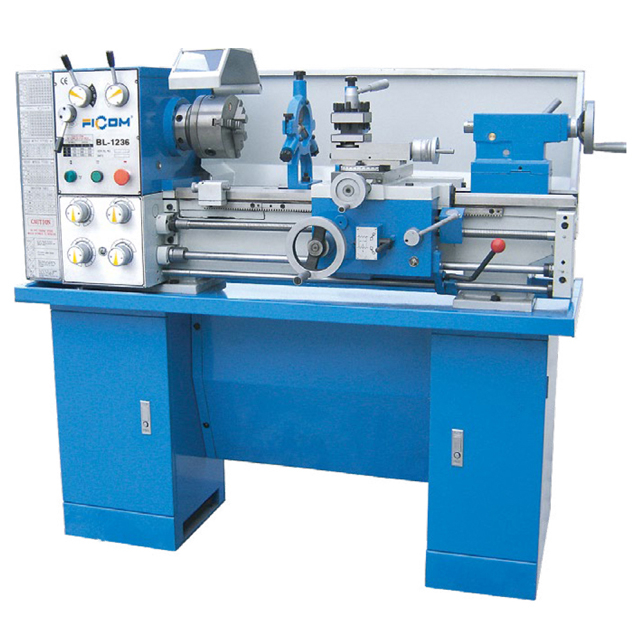

BL-1236
FICOM
| Model No. | BL-1236 |
distance between centers | 610/914mm |
swing over bed | 300mm |
swing over gap | 430mm |
swing over cross slide | 180mm |
taper of spindle bore | MT5 |
spindle bore | 38mm |
step of spindle speeds | 9 |
| range of spindle speeds | 75-1400rpm |
range of cross feeds | 0.017-0.276mm/r |
range of longitudinal feeds | 0.079-1.291mm/r |
range of inch threads | 4-60T.P.I |
range of metric threads | 0.4-7mm |
top slide travel | 76mm |
cross slide travel | 175mm |
tailstock quill travel | 90mm |
taper of tailstock quill | MT3 |
motor | 1.1Kw |
packing size | 1480/1700×750×1450mm |
| N.W./G.W. | 500/525Kg |
| Model No. | BL-1236 |
distance between centers | 610/914mm |
swing over bed | 300mm |
swing over gap | 430mm |
swing over cross slide | 180mm |
taper of spindle bore | MT5 |
spindle bore | 38mm |
step of spindle speeds | 9 |
| range of spindle speeds | 75-1400rpm |
range of cross feeds | 0.017-0.276mm/r |
range of longitudinal feeds | 0.079-1.291mm/r |
range of inch threads | 4-60T.P.I |
range of metric threads | 0.4-7mm |
top slide travel | 76mm |
cross slide travel | 175mm |
tailstock quill travel | 90mm |
taper of tailstock quill | MT3 |
motor | 1.1Kw |
packing size | 1480/1700×750×1450mm |
| N.W./G.W. | 500/525Kg |
