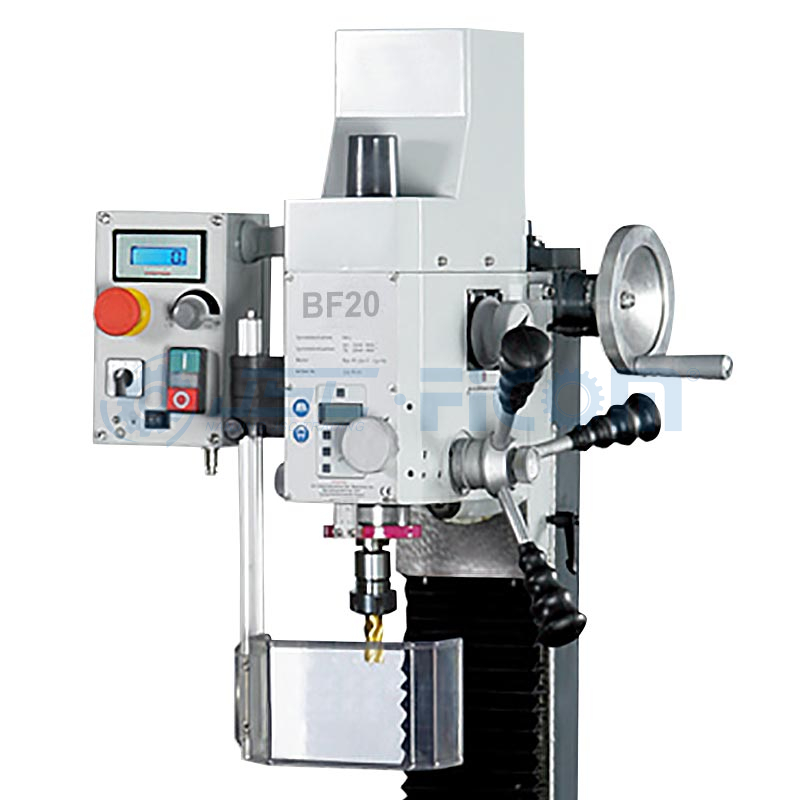

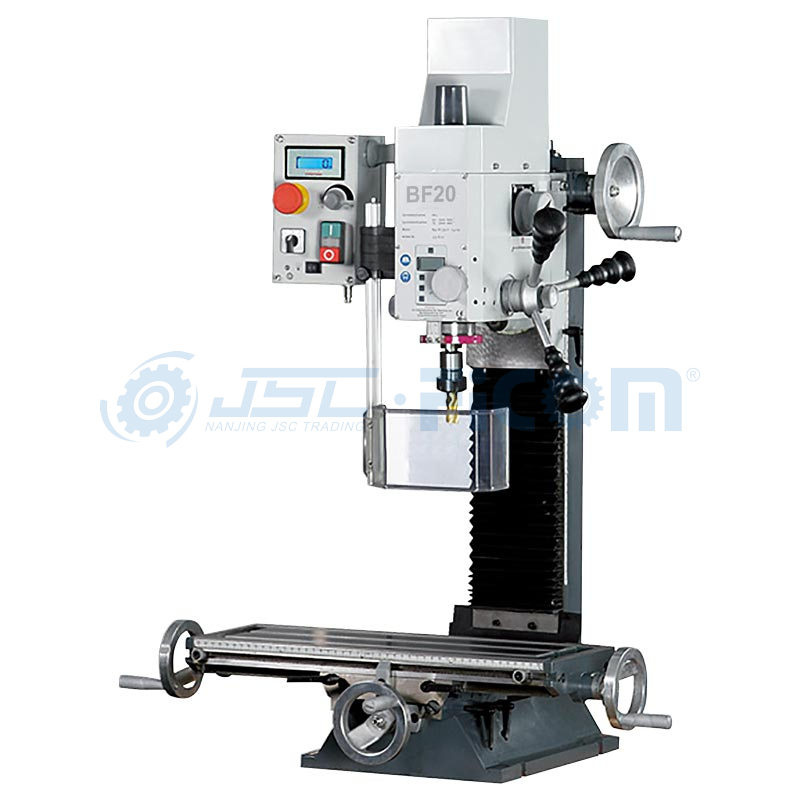

BF20 / BF20L / BF25 / BF25L / BF32 / BF32L
FICOM
| Model No. | Unit | BF20/BF20L | BF25/BF25L | BF32/BF32L |
CAPACITY | ||||
drilling capacity(max.) | mm | Ø20(0.79") | Ø20(0.79") | Ø32(1.26") |
milling capacity cutter head(max.) | mm | Ø63(2.48") | Ø63(2.48") | Ø76(3.00") |
milling capacity end mill cutter(max.) | mm | Ø20(0.79") | Ø20(0.79") | Ø20(0.79") |
SPINDLE HOLDING FIXTURE | ||||
spindle taper | MT2/M10 | MT3/M12 | MT3/M12 | |
sleeve diameter | mm | Ø60(2.36") | Ø60(2.36") | Ø70(2.76") |
sleeve travel | mm | 50(1.97") | 50(1.97") | 50(1.97") |
distance spindle-column | mm | 201(7.91") | 201(7.91") | 240(9.45") |
DRILL-MILL HEAD | ||||
spindle inclined angle | ° | ±90 | ±90 | ±90 |
spindle speed | rpm | L: 90-1480 H: 150-3000 | L: 90-1480 H: 150-3000 | L: 50-2250 H: 50-5500 |
CROSS TABLE | ||||
tabel(L×W) | mm | 500×180/700×180 (19.69"×7.09"/27.56"×7.09") | 500×180/700×180 (19.69"×7.09"/27.56"×7.09") | 700×210/900×210 (27.56"×8.27"/35.43"×8.27") |
Y-axis travel | mm | 175(6.89") | 175(6.89") | 210(8.27") |
X-axis travel | mm | 280/480(11.10"/18.90") | 280/480(11.10"/18.90") | 450/650(17.72"/25.59") |
Z-axis travel | mm | 380(14.96") | 380(14.96") | 380(14.96") |
T-slot size/distance/number | mm | 12/63/3 | 12/63/3 | 12/63/3 |
distance spindle-cross table(max.) | mm | 380(14.96") | 380(14.96") | 360(14.25") |
ELECTRIC SUPPLY | ||||
motor | W | 850 | 850 | 1100 |
DIMENSIONS AND WEIGHT | ||||
size(L×W×H) | mm | 722×550×770 | 722×550×770 | 772×870×710 |
packing size(L×W×H) | mm | 620×560×920 | 620×560×920 | 710×890×860 |
N.W./G.W. | kg | 105/145 | 105/145 | 220/265 |
Draw bar | Morse taper MT2/B20-M10 | ||
Morse collet chuck MT2/M10 | End mill cutter kit HSS 12pcs/set | Keyless chuck 1-13mm/B20 | Milling chuck kit Q24-16(8pcs/set) |
Machine vice QG100 | Face milling cutter ø63/MT2 | Stand & chip tray |
| Model No. | Unit | BF20/BF20L | BF25/BF25L | BF32/BF32L |
CAPACITY | ||||
drilling capacity(max.) | mm | Ø20(0.79") | Ø20(0.79") | Ø32(1.26") |
milling capacity cutter head(max.) | mm | Ø63(2.48") | Ø63(2.48") | Ø76(3.00") |
milling capacity end mill cutter(max.) | mm | Ø20(0.79") | Ø20(0.79") | Ø20(0.79") |
SPINDLE HOLDING FIXTURE | ||||
spindle taper | MT2/M10 | MT3/M12 | MT3/M12 | |
sleeve diameter | mm | Ø60(2.36") | Ø60(2.36") | Ø70(2.76") |
sleeve travel | mm | 50(1.97") | 50(1.97") | 50(1.97") |
distance spindle-column | mm | 201(7.91") | 201(7.91") | 240(9.45") |
DRILL-MILL HEAD | ||||
spindle inclined angle | ° | ±90 | ±90 | ±90 |
spindle speed | rpm | L: 90-1480 H: 150-3000 | L: 90-1480 H: 150-3000 | L: 50-2250 H: 50-5500 |
CROSS TABLE | ||||
tabel(L×W) | mm | 500×180/700×180 (19.69"×7.09"/27.56"×7.09") | 500×180/700×180 (19.69"×7.09"/27.56"×7.09") | 700×210/900×210 (27.56"×8.27"/35.43"×8.27") |
Y-axis travel | mm | 175(6.89") | 175(6.89") | 210(8.27") |
X-axis travel | mm | 280/480(11.10"/18.90") | 280/480(11.10"/18.90") | 450/650(17.72"/25.59") |
Z-axis travel | mm | 380(14.96") | 380(14.96") | 380(14.96") |
T-slot size/distance/number | mm | 12/63/3 | 12/63/3 | 12/63/3 |
distance spindle-cross table(max.) | mm | 380(14.96") | 380(14.96") | 360(14.25") |
ELECTRIC SUPPLY | ||||
motor | W | 850 | 850 | 1100 |
DIMENSIONS AND WEIGHT | ||||
size(L×W×H) | mm | 722×550×770 | 722×550×770 | 772×870×710 |
packing size(L×W×H) | mm | 620×560×920 | 620×560×920 | 710×890×860 |
N.W./G.W. | kg | 105/145 | 105/145 | 220/265 |
Draw bar | Morse taper MT2/B20-M10 | ||
Morse collet chuck MT2/M10 | End mill cutter kit HSS 12pcs/set | Keyless chuck 1-13mm/B20 | Milling chuck kit Q24-16(8pcs/set) |
Machine vice QG100 | Face milling cutter ø63/MT2 | Stand & chip tray |
